Potentiometric titrator: a precision analysis engine for modern laboratories

The core value of potentiometric titrators: why have they become a necessity in laboratories?

As the core equipment of electrochemical analysis, the potentiometric titrator determines the endpoint of titration by real-time monitoring of electrode potential changes, completely solving the three major pain points of traditional titration methods:

The problem of human error: Traditional titration relies on color changes to determine the endpoint, which is easily influenced by the operator's experience, while potentiometric titrators can capture millivolt level potential jumps (with an accuracy of ± 0.25 ‰), reducing the error to within 1.5%;

Complex sample limitations: For colored and turbid solutions (such as industrial wastewater and dark edible oil), traditional indicators are ineffective, and the potentiometric method relies on electrode signals to penetrate interference and achieve accurate detection;

Efficiency bottleneck: Automated titration program replaces manual operation, increasing daily sample processing by 300%, especially suitable for high-throughput scenarios such as drug quality control and environmental monitoring.

Technical principle essence: The instrument consists of an indicator electrode (such as pH glass electrode, platinum electrode) and a reference electrode to form a working battery. When the addition of a titrant causes a drastic change in ion concentration, the electrode potential undergoes a sudden jump (i.e. equivalent point). The endpoint is accurately locked through a differential curve, and the concentration is automatically calculated using a pre-set formula.

Full dimensional application coverage: from laboratory research to industrial sites

The modular design of the potentiometric titrator (electrode+titration device+control module) makes it a cross industry universal analysis platform:

Pharmaceutical industry: analysis of active ingredients in drugs (such as antibiotic potency), acidity testing of excipients, in compliance with the new regulations of the 2025 Pharmacopoeia;

Environmental monitoring: rapid determination of heavy metals (lead, mercury ions), chloride ions, and COD in water quality, supporting real-time control of sewage treatment plants;

Food quality inspection: analysis of acid value, peroxide value, and salt content to ensure compliance of edible oils, dairy products, and other products;

New energy materials: titration of electrolyte components for lithium batteries, control of metal purity, and assistance in material research and development.

Case study: A coastal environmental protection station used a potentiometric titrator to detect the concentration of chloride ions in seawater, with an error of less than 0.2%, which is 50% more efficient than the traditional silver content method.

Hengmei Electronics HM-D1: Redefining the technological benchmark for intelligent titration

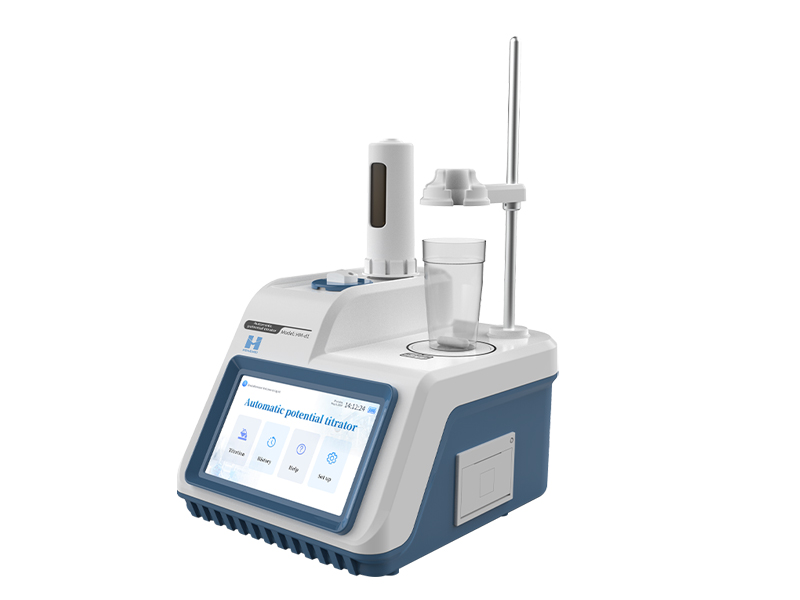

The automatic potentiometric titrator HM-D1 launched by Shandong Hengmei Electronics reconstructs the industry standard with "precision+intelligence+scalability":

1. Double breakthroughs in accuracy and reliability

National 0.05 level certification: Following JJG 814-2015 standard, titration error ≤ 1.5%, repeatability ≤ 0.2%, 10mL burette accuracy up to ± 5 μ L;

Strong adaptability to the environment: operates in a wide temperature range of 0-40 ℃, with a humidity tolerance of 10% -90%, ensuring stable operation in outdoor and non air conditioned laboratories;

Error prevention design: Exclusive "exhaust flushing exhaust pipe" three function system, eliminating bubble interference, reducing reagent residue, and reducing the risk of operational errors.

2. Intelligent operation revolution

Multi mode titration: dynamic titration (real-time speed adjustment), equal titration (fixed increment), manual titration can be freely switched to adapt to different reaction rate requirements;

Hundreds of methods for storage: Users can save over 100 custom titration schemes (such as non-aqueous titration and complexometric titration) and easily access historical processes with just one click;

Formula automatic calculation: After inputting the chemical equation, the instrument directly outputs the content of the analyte, and 100000 data points are stored to support batch report generation.

3. Modular expansion capability

Plug and play electrode: equipped with four types of electrodes (composite glass electrode/redox electrode/silver electrode/temperature electrode), covering the entire scene of acid-base, redox, precipitation titration;

Function free upgrade: Optional conductivity titration and permanent stop titration modules are available to expand advanced applications such as drug impurity analysis and permanent stop endpoint determination.

Hengmei Electronics: Innovation of Technology Gene Driven Analysis Instruments

As a leading enterprise in agricultural ecology and rapid inspection equipment, Hengmei Electronics integrates cross disciplinary technology into the research and development of analytical instruments

IoT integration: The instrument has built-in USB/WIFI/network ports, supports mobile hotspot networking, and real-time transmission of field data to the monitoring platform;

Lightweight design: 3.7kg body+310mm ultra-thin depth, greatly saving laboratory space, equipped with a magnetic stirrer to replace manual bottle shaking;

Full cycle service: Provide GLP/GMP compliance guidance and technical support throughout the entire process from electrode maintenance to method development.

User verification: A pharmaceutical company has adopted HM-D1 as a substitute for imported equipment, resulting in a 40% reduction in annual testing costs and a 100% pass rate for data review by the FDA.

Conclusion: The future of precise analysis belongs to intelligence and scenarization

The potentiometric titrator has evolved from a "laboratory tool" to an "industry decision-making center", and its value lies in transforming complex chemical reactions into quantifiable data assets. The HM-D1 series of Hengmei Electronics is pushing chemical analysis into the "unmanned precision era" through three-dimensional breakthroughs in hardware precision innovation, software intelligent control, and functional scene adaptation.
