liquid density meter

Product Introduction

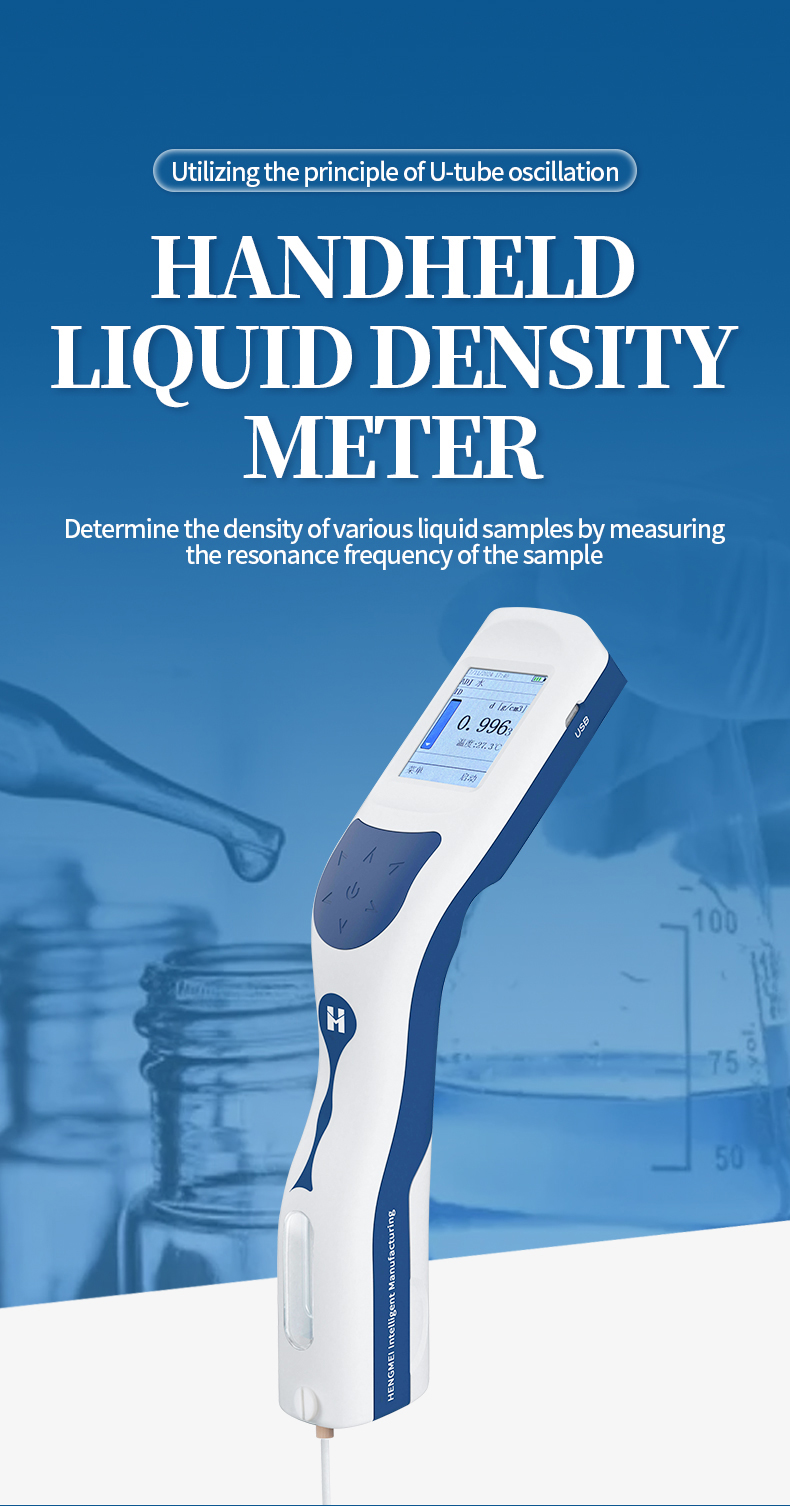

Handheld liquid densitometer uses the principle of U-tube oscillation to measure the density of various liquid samples by measuring the resonance frequency of the sample. It has the characteristics of easy operation and accurate measurement, and is suitable for density measurement of various liquids.

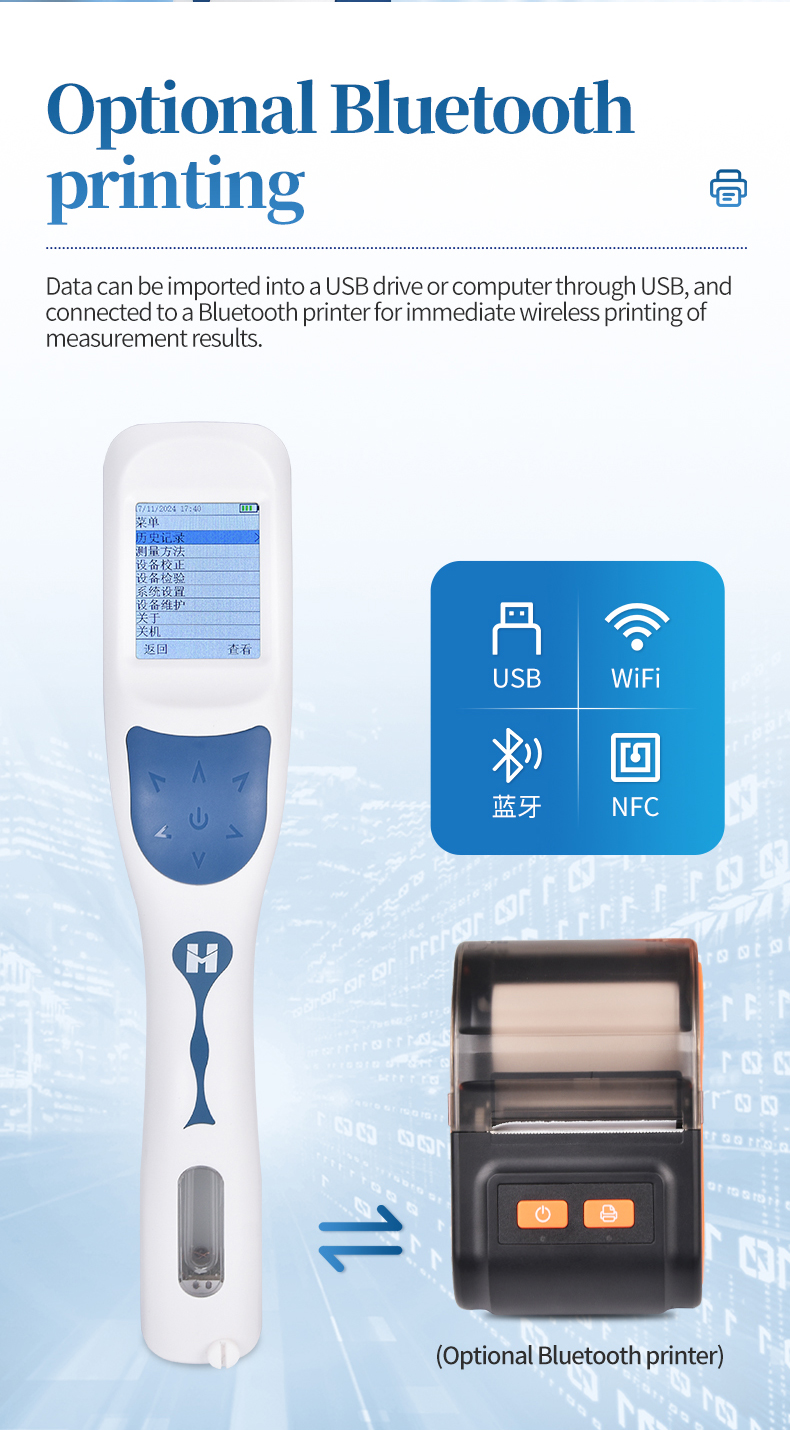

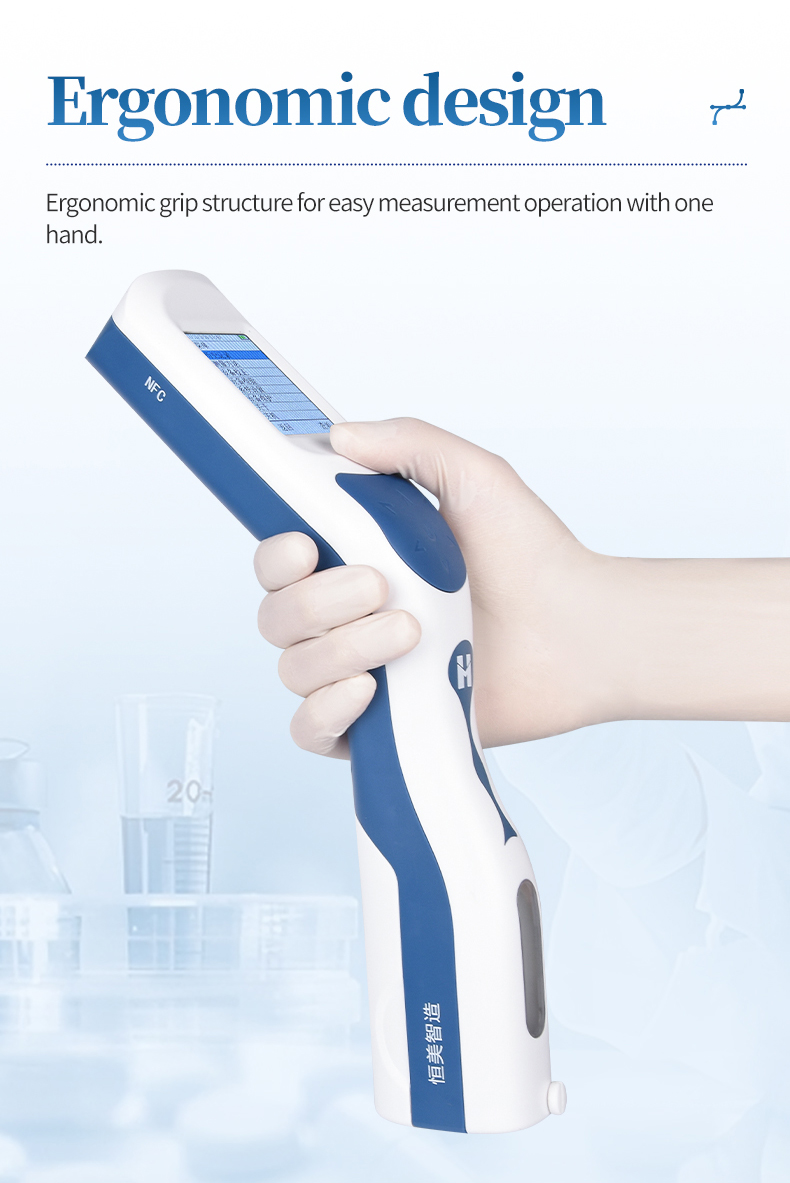

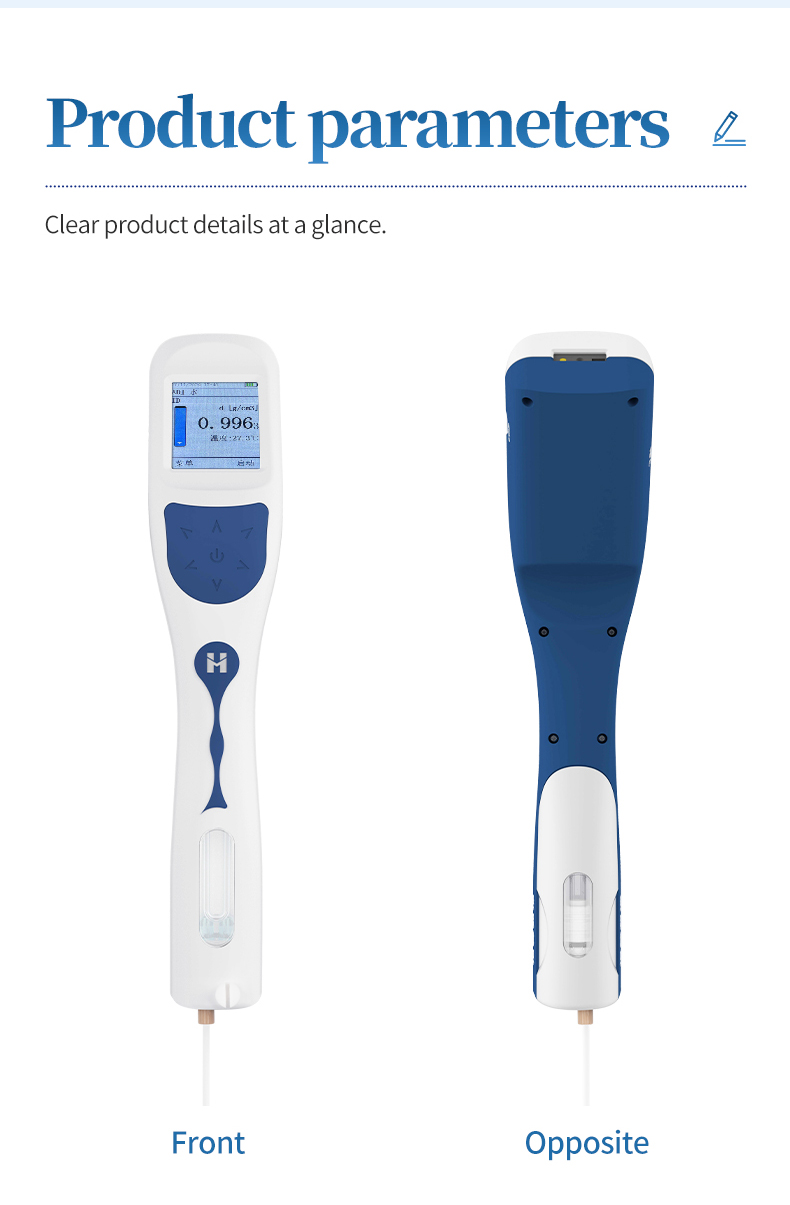

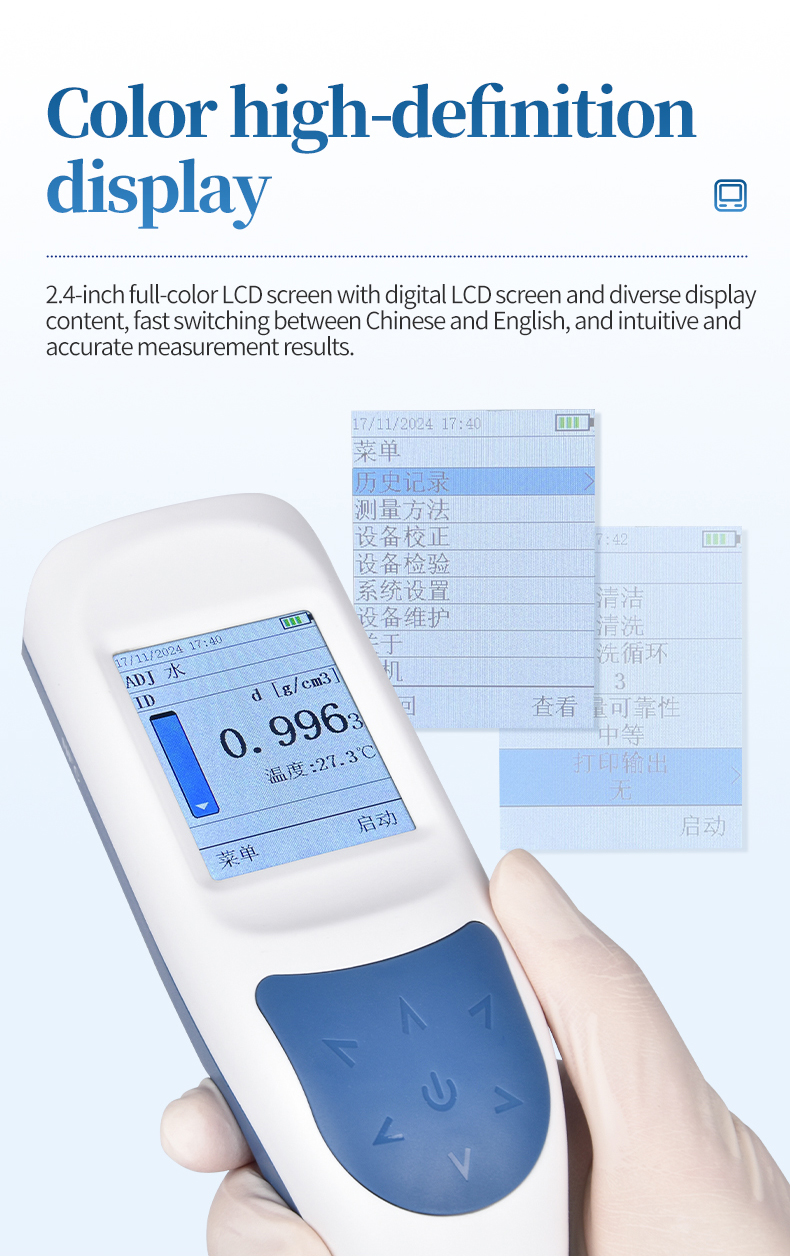

The instrument adopts a 2.4-inch color high-definition display and an ergonomic grip structure, making it easy to measure with one hand. Built in large capacity storage, capable of storing over a thousand pieces of historical data. Data can be imported into a USB flash drive or computer via USB, and connected to a Bluetooth printer for immediate wireless printing of measurement results.

The instrument is equipped with scanning and NFC functions, which can quickly and accurately input sample ID information.

The contact area of the liquid sample is made of quartz glass and PTFE (polytetrafluoroethylene) material, which increases the corrosion resistance of the equipment. The design of quick disassembly of the pump body facilitates equipment cleaning and replacement of the pump body.

Product Features

1. Featuring a digital LCD screen and diverse display content, the measurement results are intuitive and accurate.

2. Wide measurement range, very simple operation, high detection accuracy, and fast measurement speed.

3. The built-in pure water density meter is easy to calibrate and can perform air or standard substance calibration.

4. Automatically perform density or relative density compensation.

5. The sample demand is small, and the sampling volume and sampling speed can be controlled with just one hand.

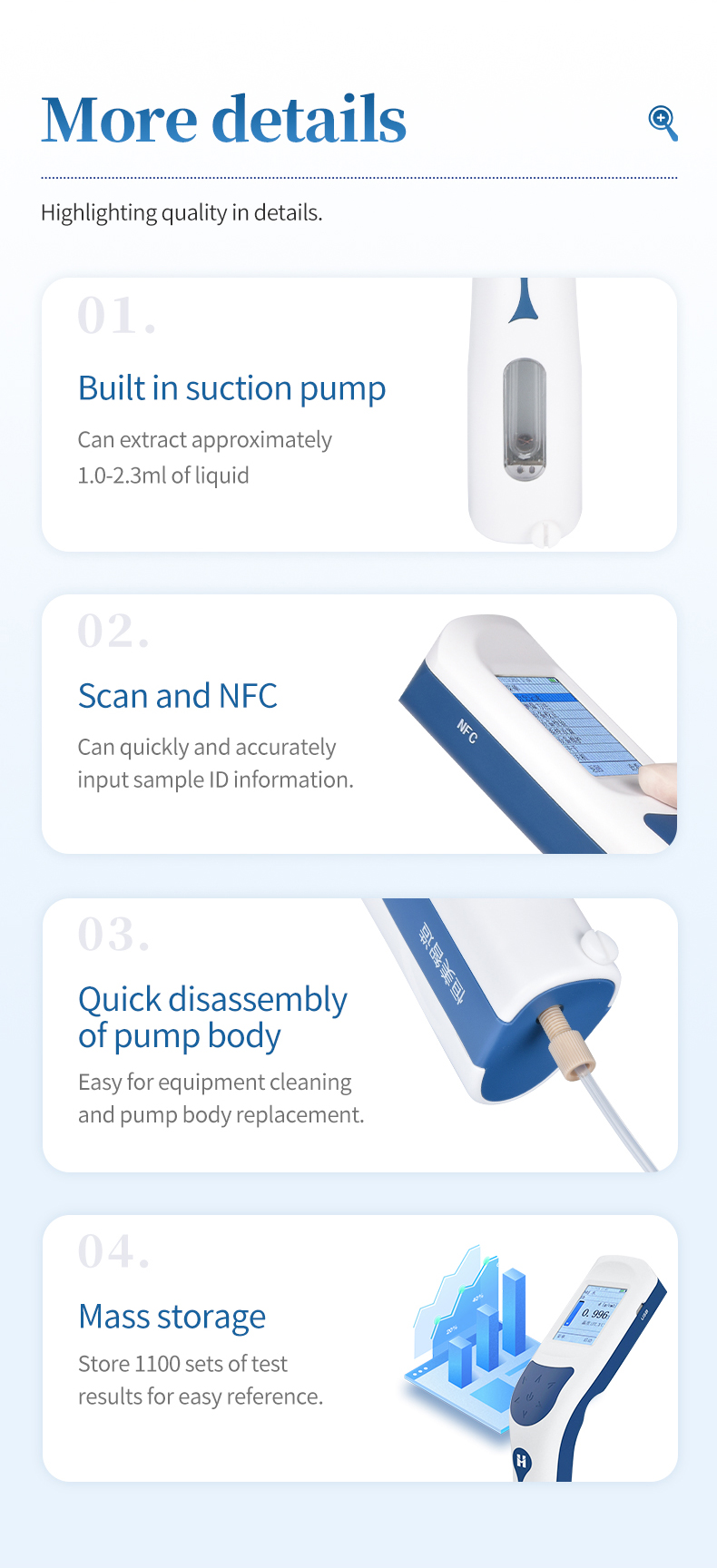

6. Built in suction pump, capable of extracting approximately 1.0-2.3ml of liquid.

7. Store 1100 sets of test results for easy reference.

8. Quickly switch between Chinese and English.

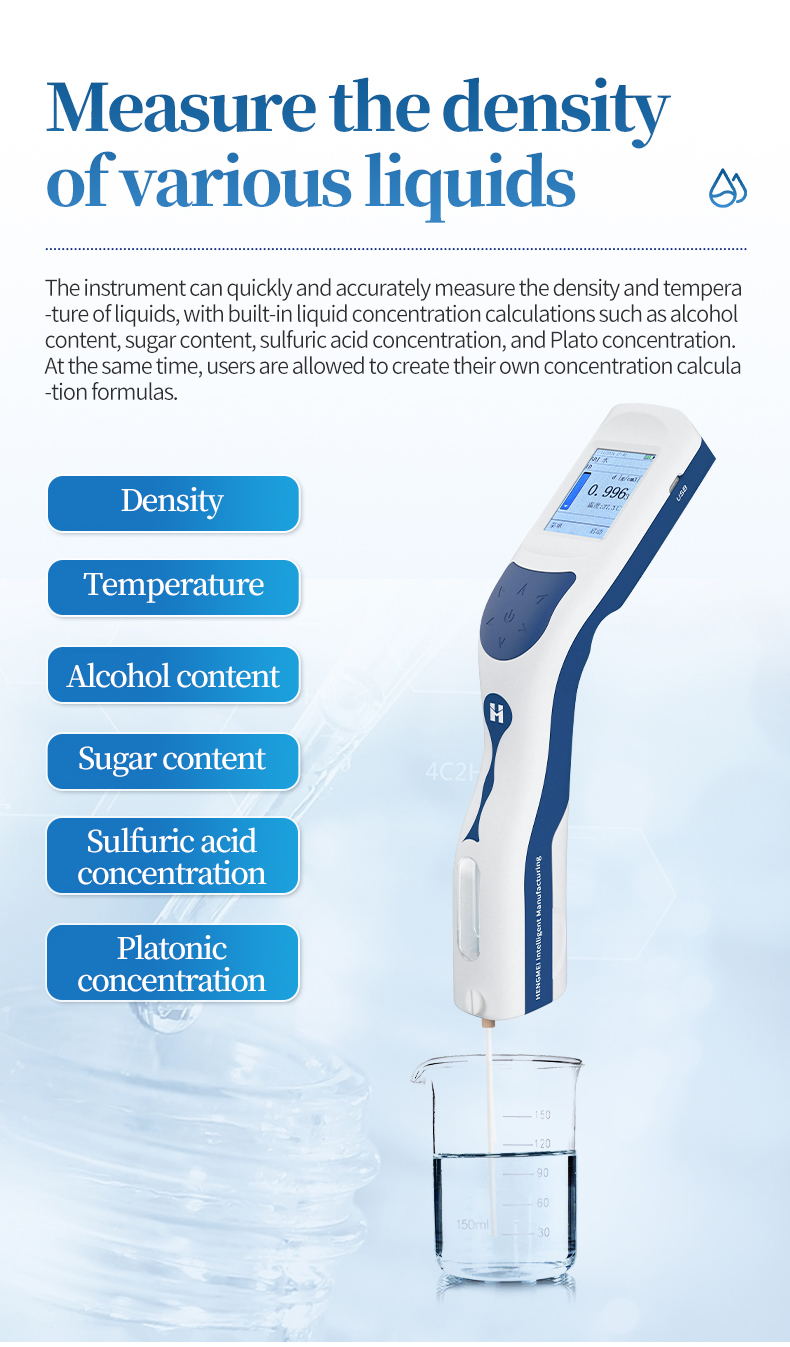

9. The instrument can quickly and accurately measure the density and temperature of liquids, with built-in calculations for liquid concentrations such as alcohol content, sugar content, sulfuric acid concentration, and Plato concentration. It also allows users to create their own concentration calculation formulas

10. Optional Bluetooth printer

Application area

1. Chemical industry: used to measure the density of various chemical substances to ensure product quality and production process stability;

2. Food and beverage industry: used to measure the density of foods such as fruit juice, beverages, and alcoholic beverages to control product quality and production processes;

3. Petroleum industry: used to measure the density of petroleum products such as crude oil and finished oil to ensure product quality and production process stability;

4. Other fields: It can also be applied to density measurement in multiple fields such as medicine, environmental protection, and teaching.
