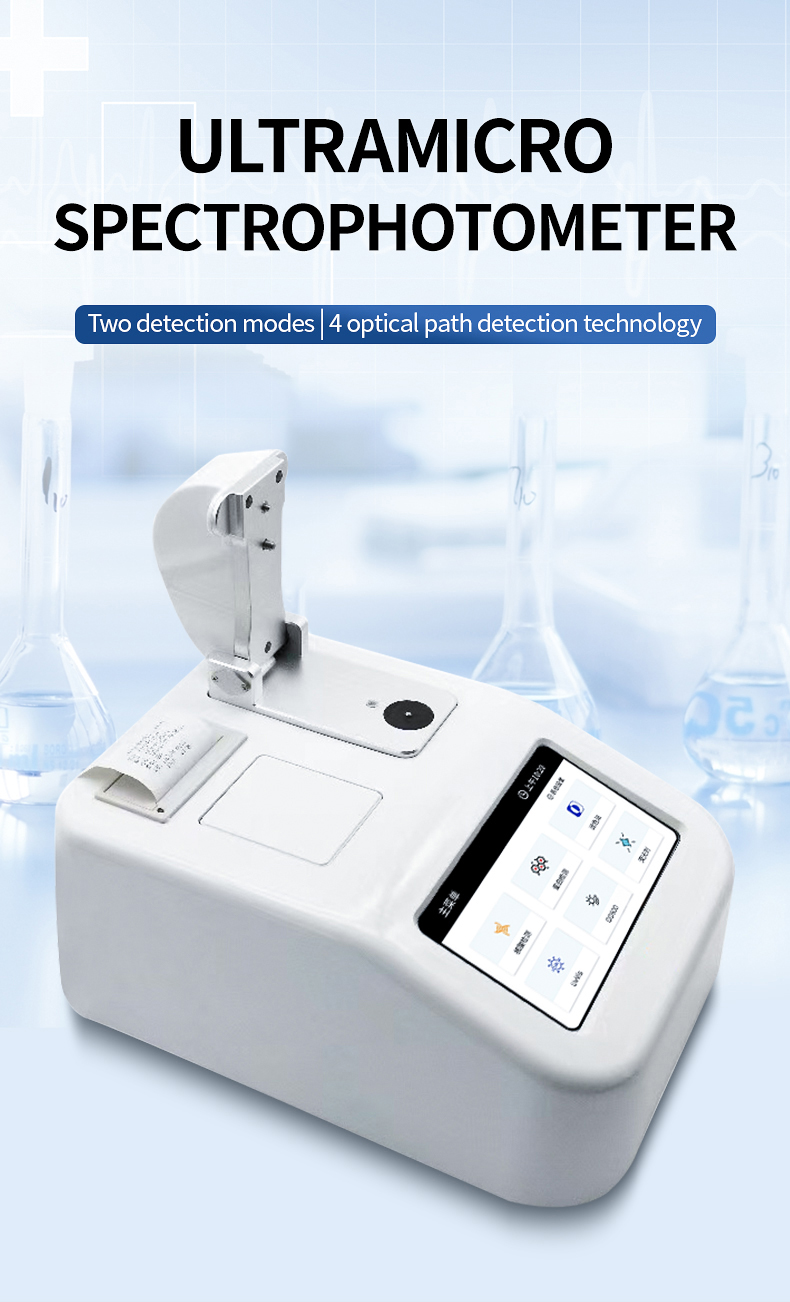

Micro spectrophotometer

1. ※ Adopting LED cold light source, stable emission, affordable

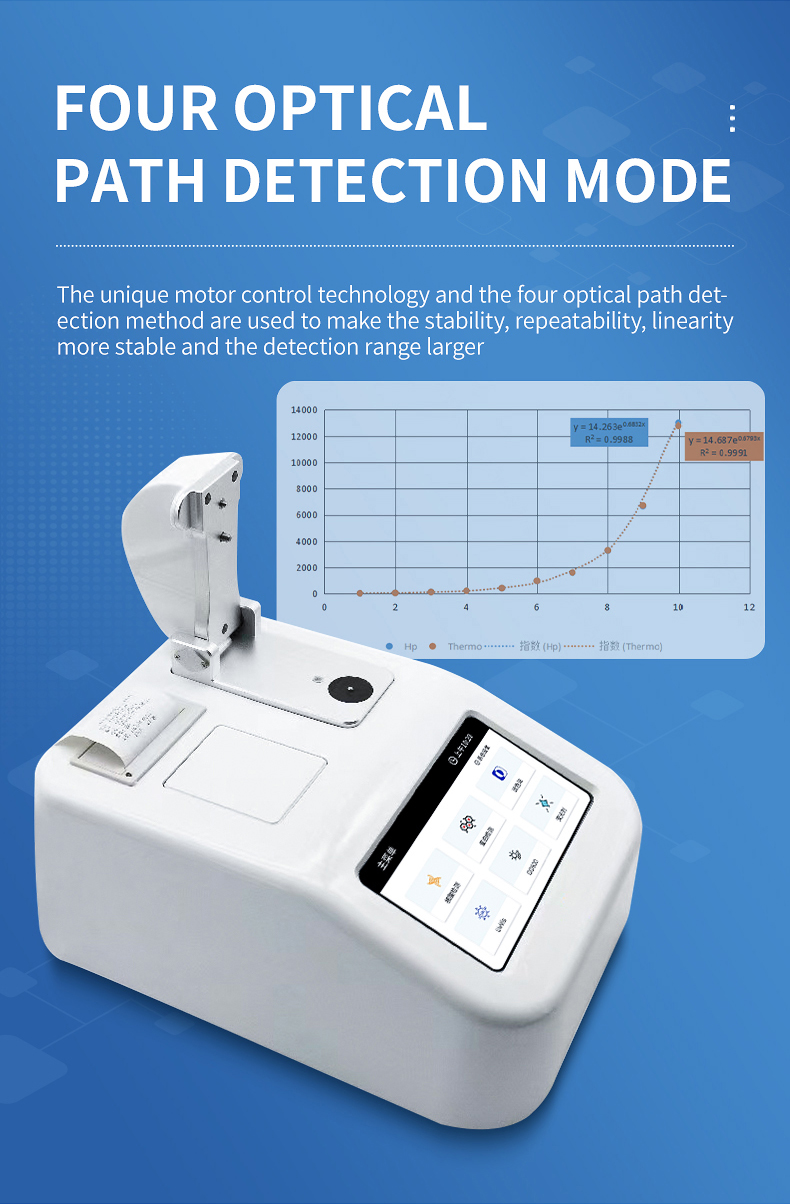

2. Using unique motor control technology and adopting a four path detection method, the stability, repeatability, linearity are more stable and the detection range is larger

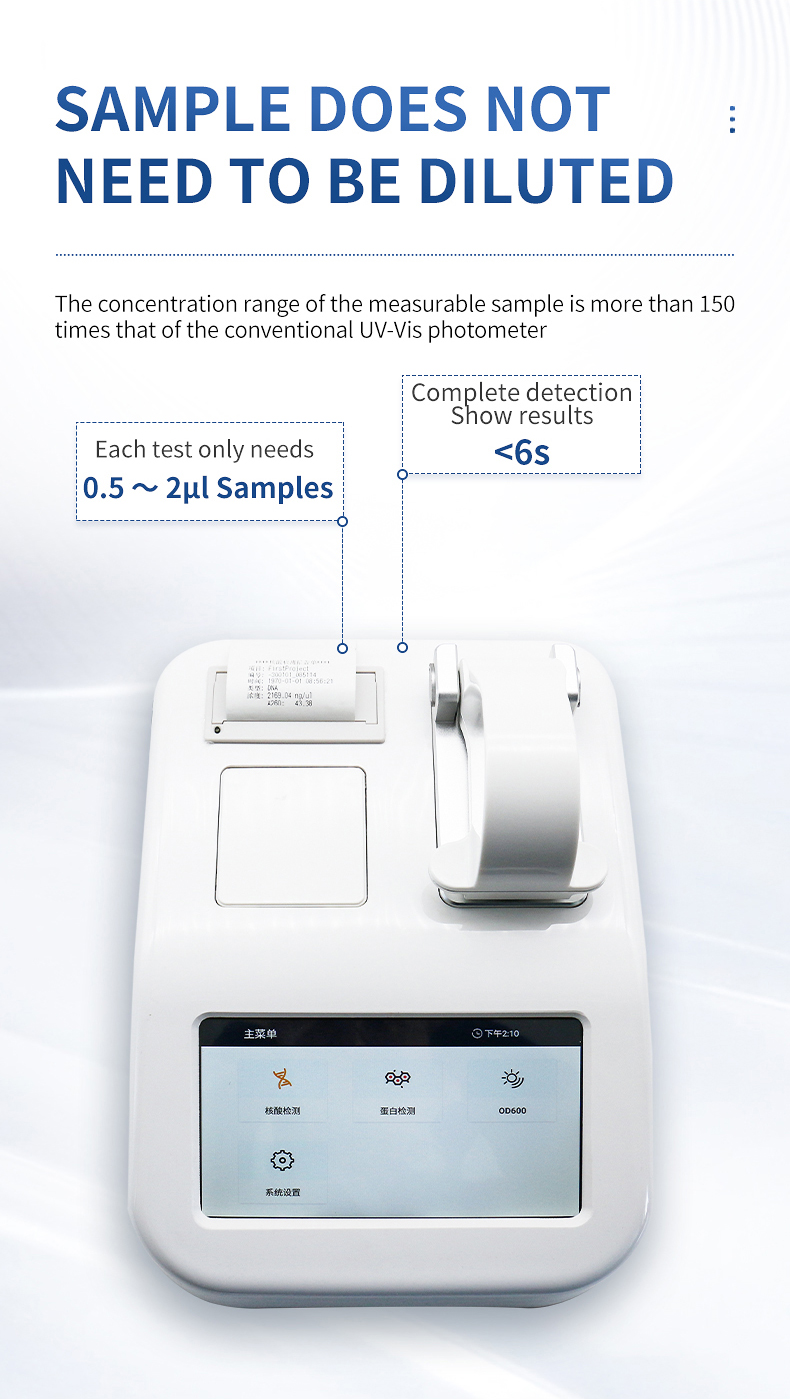

3. The sample does not need to be diluted, and the concentration range of the measurable sample is more than 150 times that of a conventional UV visible spectrophotometer

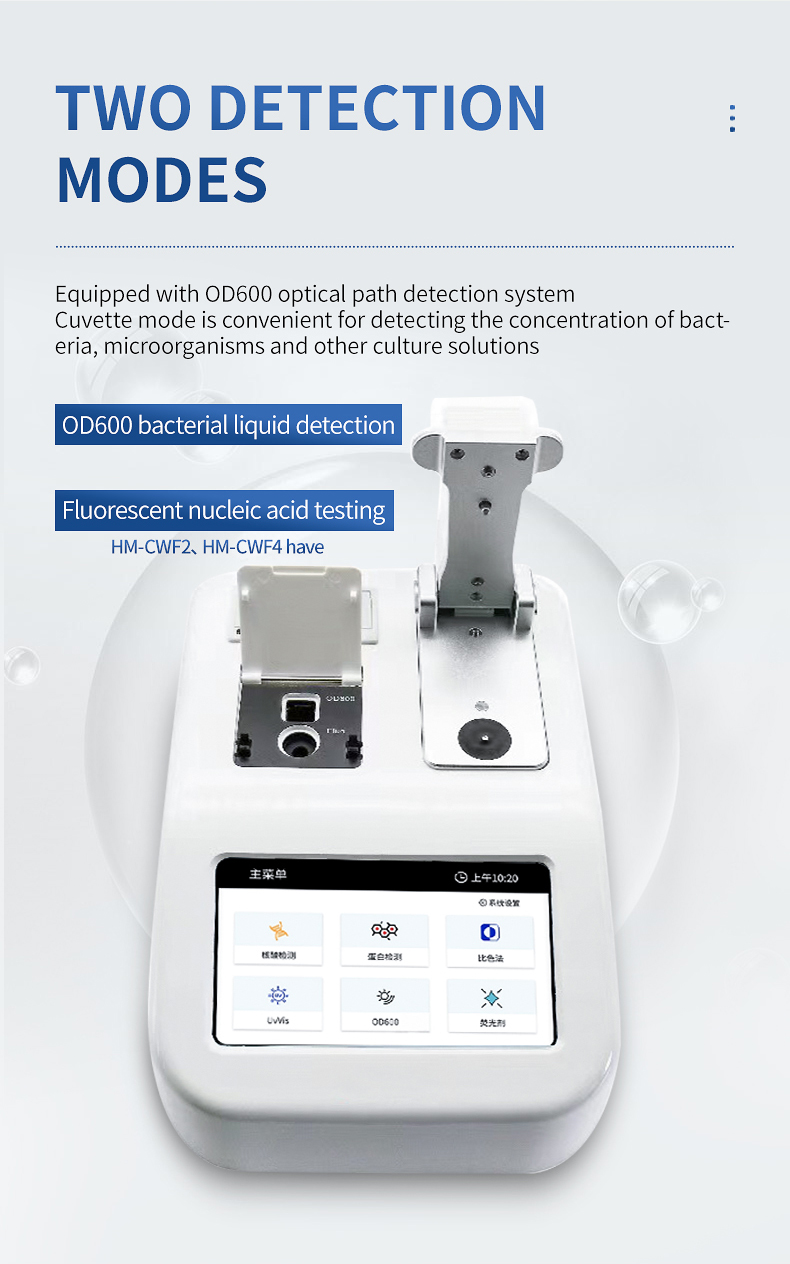

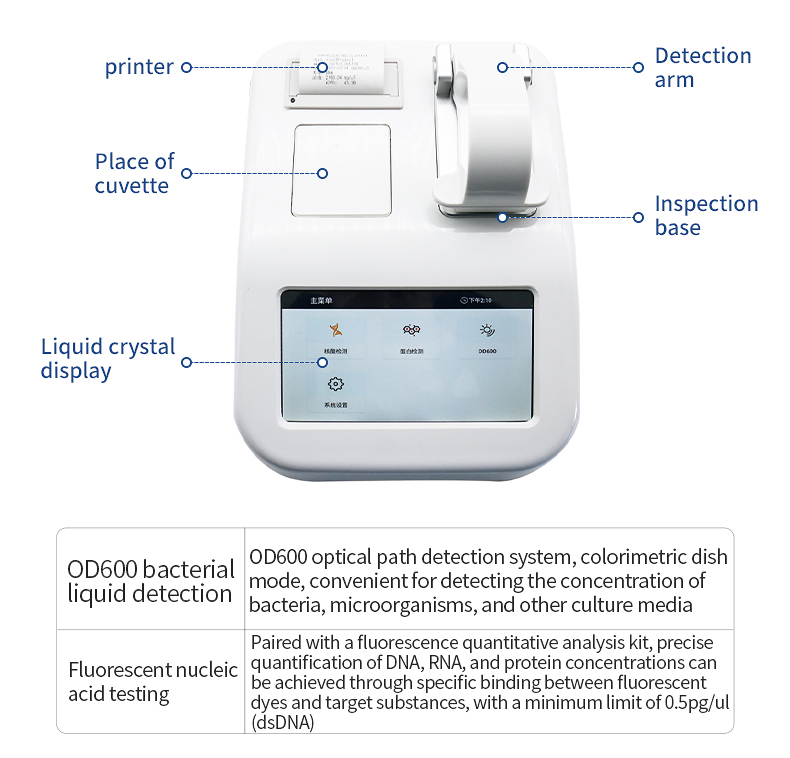

4. Equipped with OD600 optical path detection system and colorimetric dish mode, it is convenient for detecting the concentration of bacteria, microorganisms and other culture media

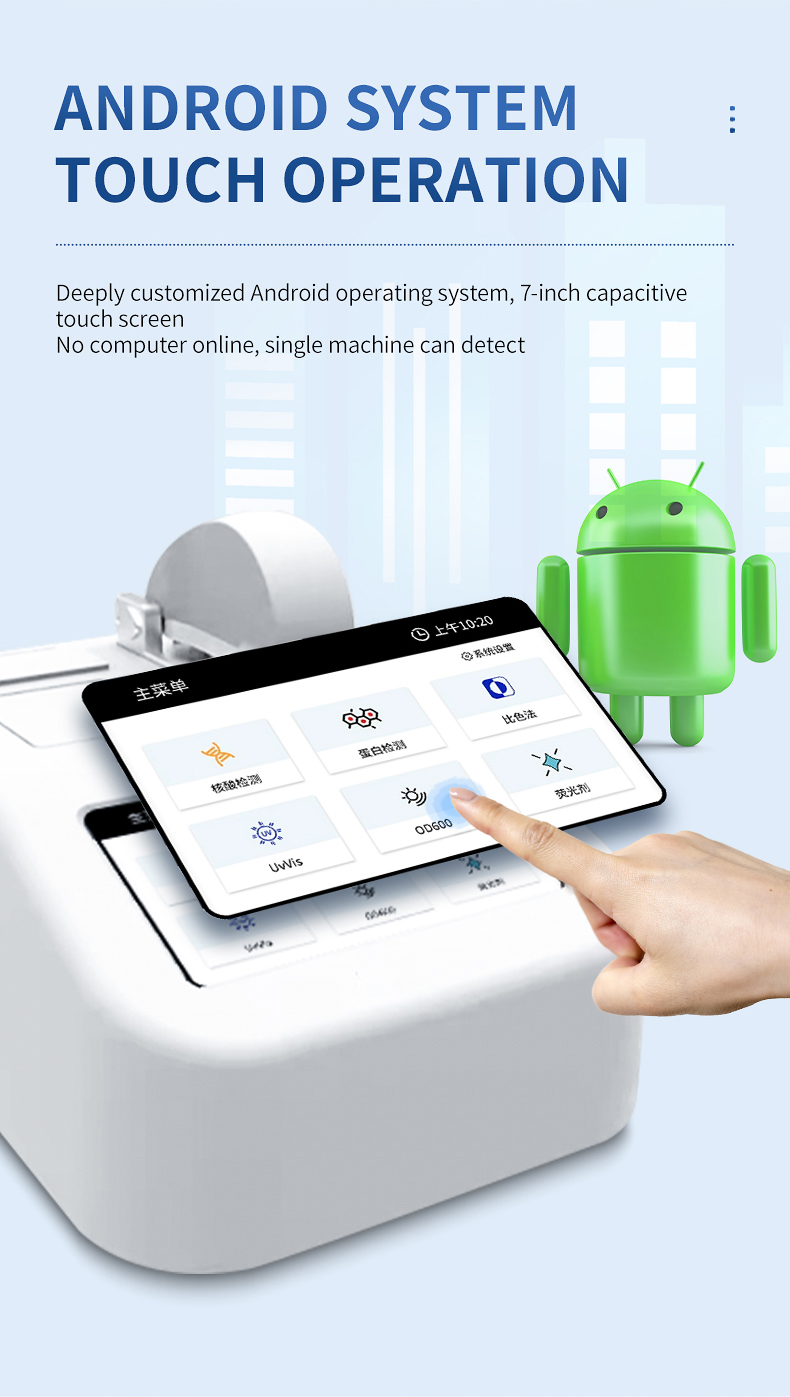

5. Deeply customized Android operating system, 7-inch capacitive touch screen, no need for computer connection, can be detected on a single machine

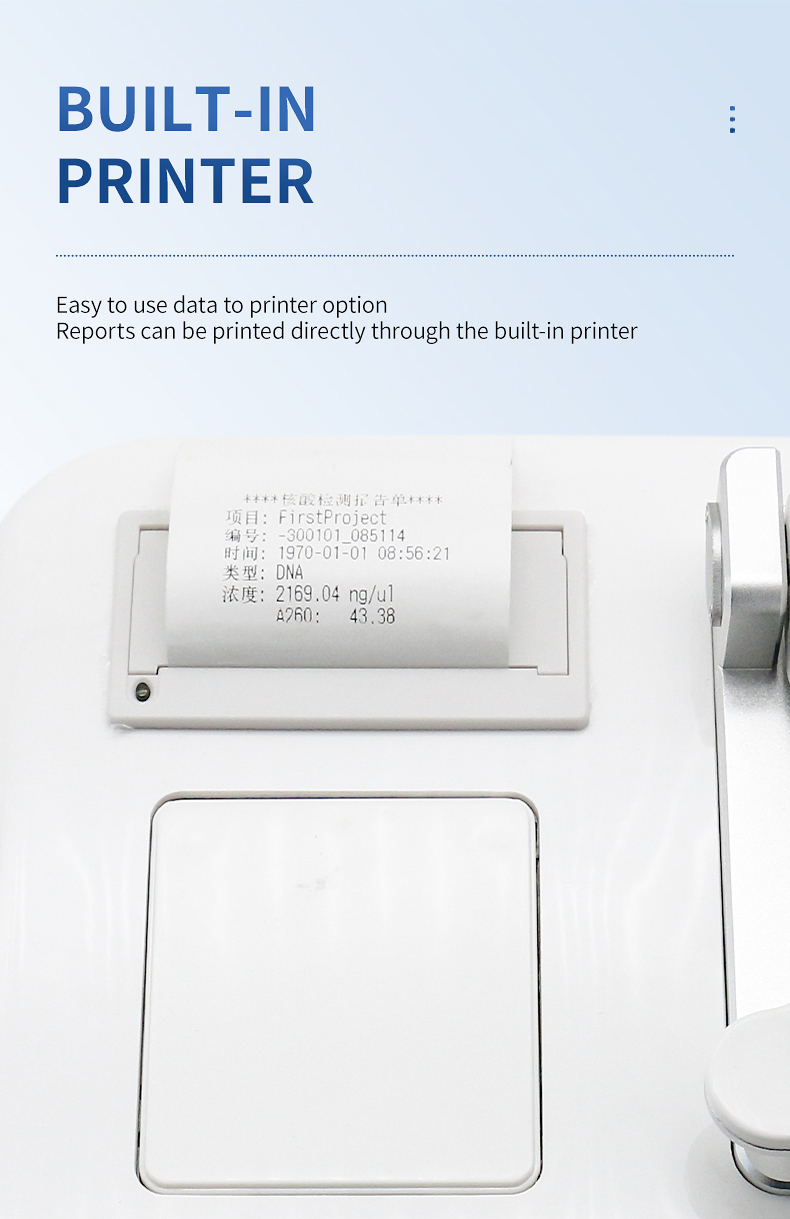

6. ※ With easy-to-use data to printer options, you can directly print reports through the built-in printer

7. Adopting image and table storage formats, the table is compatible with Excel, facilitating subsequent data processing, and supporting JPG image export

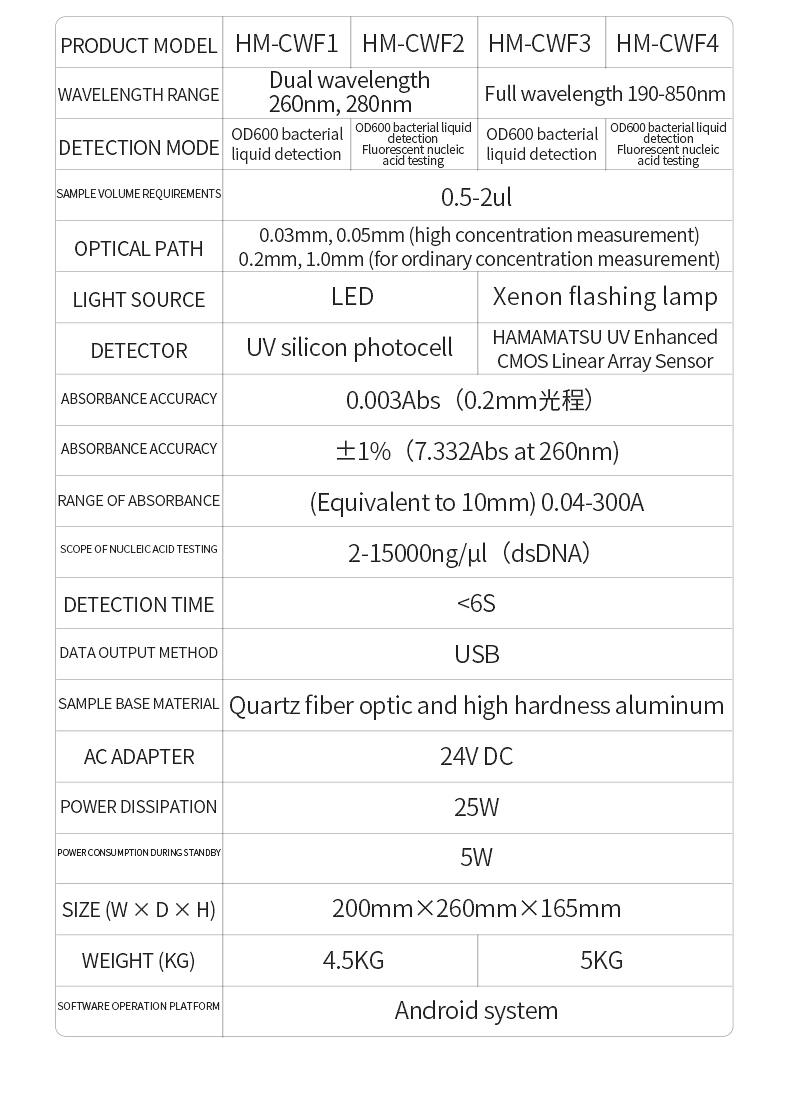

8. Wavelength range: 260nm, 280nm

9. Sample volume requirement 0.5-2ul

10. Optical path length 0.03mm, 0.05mm (high concentration measurement) 0.2mm, 1.0mm (ordinary concentration measurement)

11. Light source LED

12. Detector UV silicon photovoltaic cell

13. Accuracy of absorbance 0.003Abs (0.2mm optical path)

14. Accuracy of absorbance ± 1% (7.332Abs at 260nm)

15. Absorption range (equivalent to 10mm) 0.04-300A

16. Nucleic acid testing range 2-15000ng/μ l (dsDNA)

17. Detection time<6S

18. Data output method: USB

19. Sample base material: quartz fiber optic and high hardness aluminum

20. Power adapter 24V DC

21. Power consumption of 25W

22. Power consumption during standby is 5W

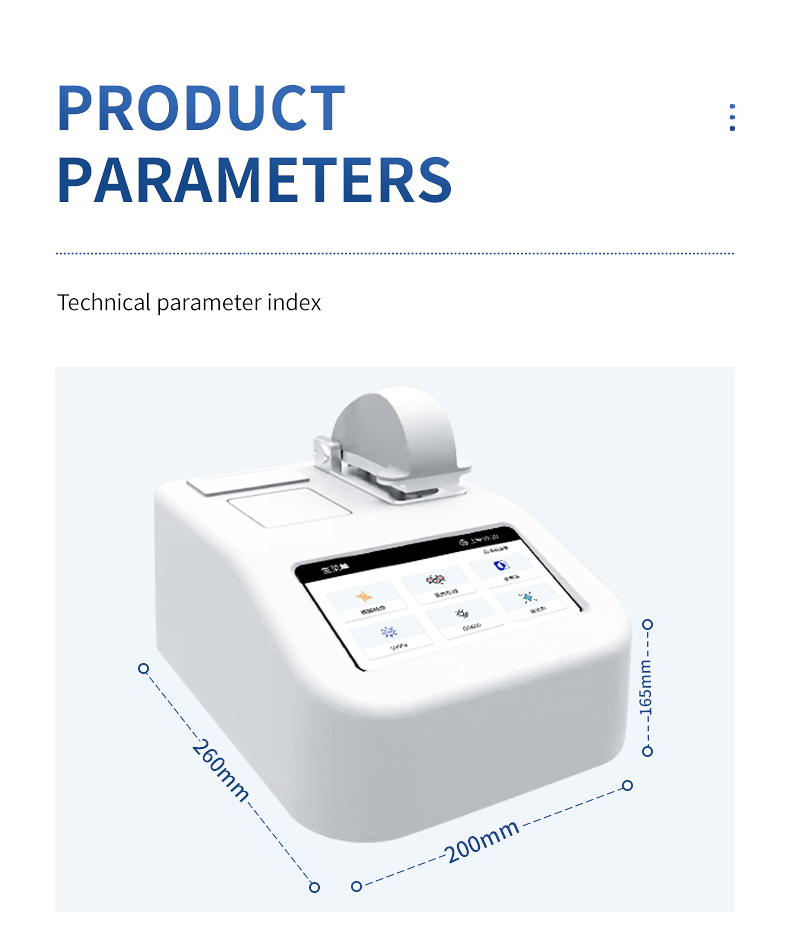

23. Dimensions (W × D × H) mm 200 × 260 × 165

24. Weight (KG) 4.5KG

25. Software operating platform Android system
