Automated Fat Analyzer

Product Overview:

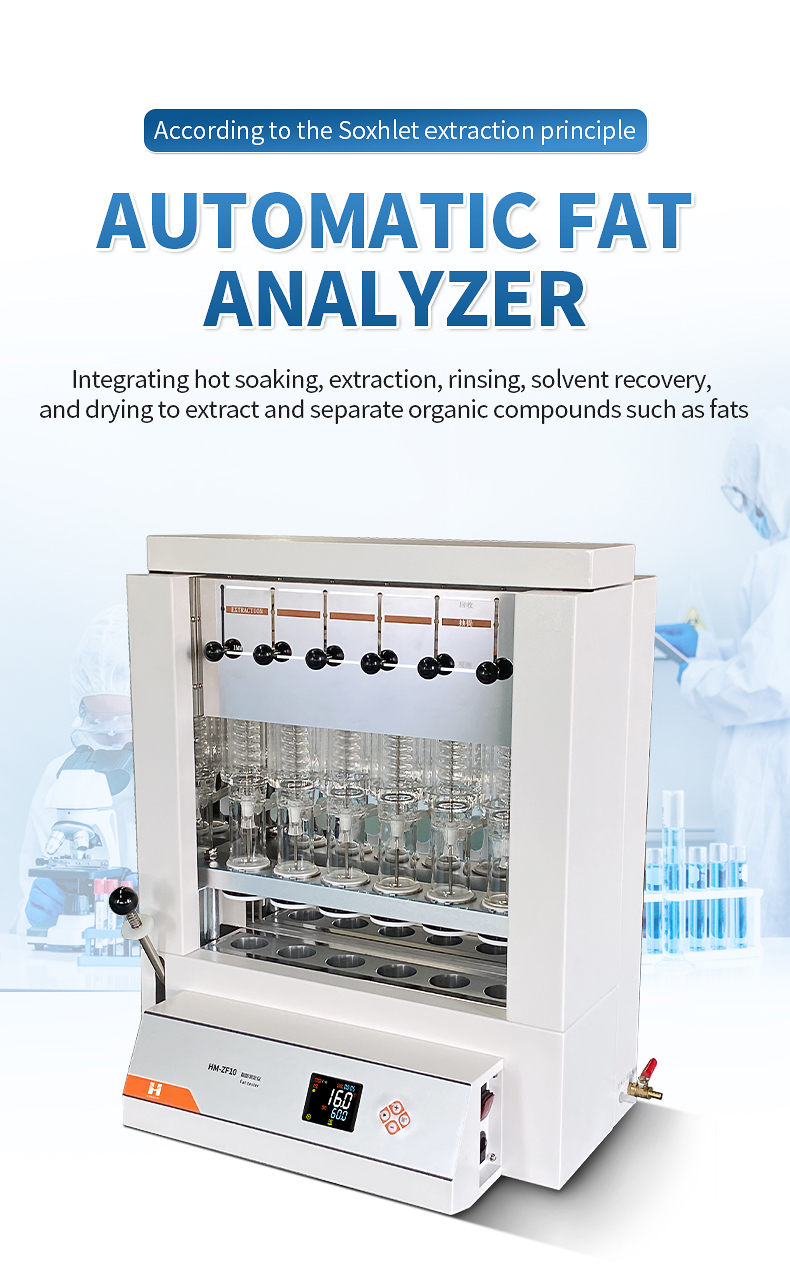

The automatic fat analyzer (Soxhlet extractor) is an instrument that combines heat soaking, extraction, rinsing, solvent recovery, and drying based on the Soxhlet extraction principle to extract and separate organic compounds such as fats. The instrument adopts automatic temperature control and fully enclosed well type electric heating form, which makes the heating of the instrument more uniform, safe and reliable, and has good sealing facilities, thus achieving the purpose of fast and accurate heating; Minimize solvent usage, automatically recover solvents, and save analysis costs. It has the advantages of reasonable design, simple operation, high accuracy, stable performance, good reproducibility, labor-saving, and time-saving.

Product Features:

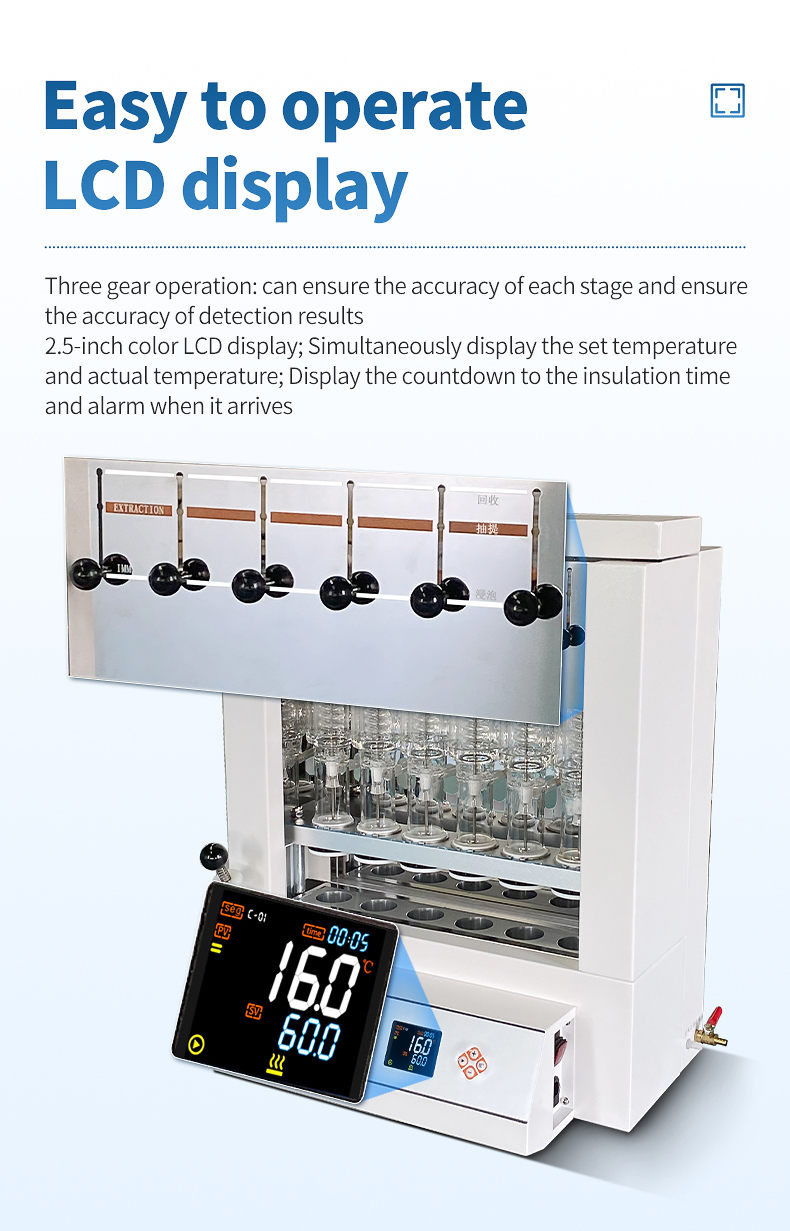

1. Three gear operation: can ensure the accuracy of each stage and ensure the accuracy of the detection results

2. ★ 2.5-inch color LCD display; Simultaneously display the set temperature and actual temperature; The countdown display for the insulation time has arrived

Time alarm;

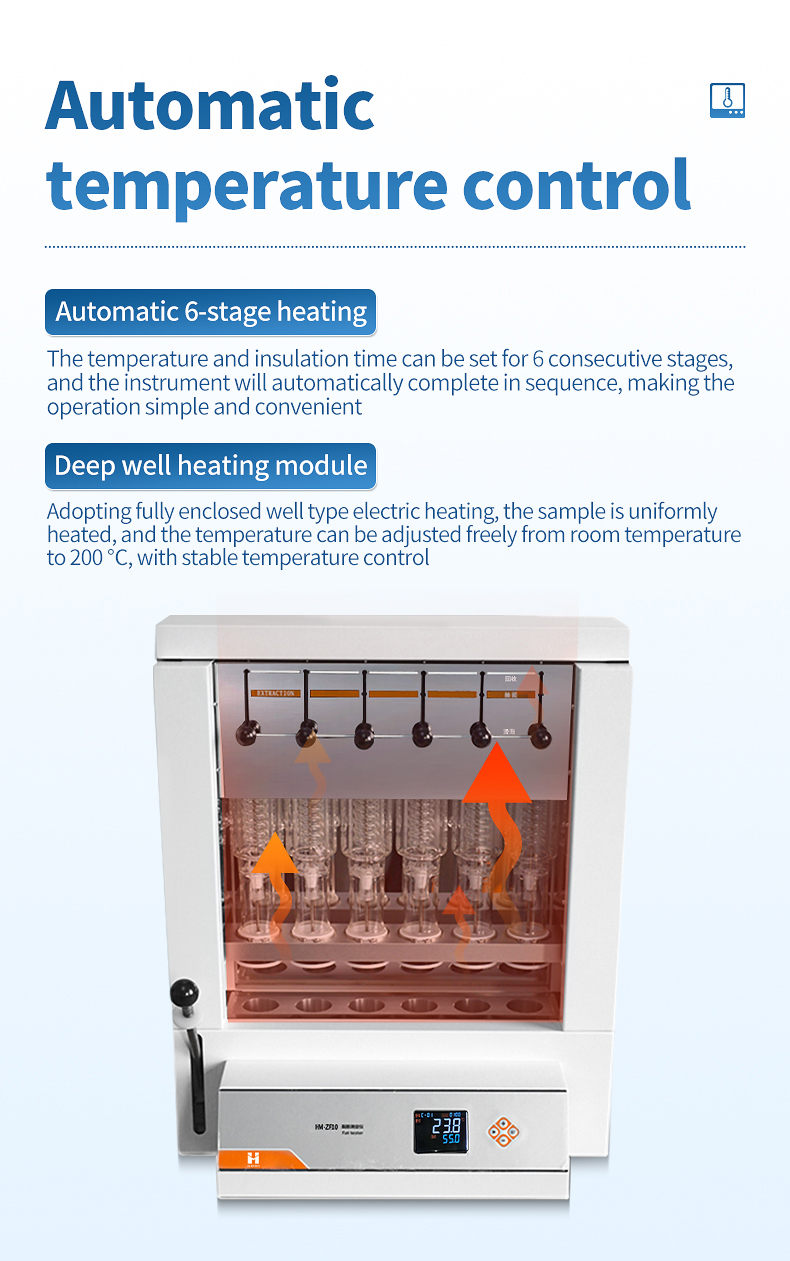

3. ★ Automatic 6-stage heating: The temperature and insulation time for 6 consecutive stages can be set, and the instrument will automatically complete the process in sequence, making the operation simple and convenient;

4. Deep well heating module: using fully enclosed well type electric heating, the sample is uniformly heated, and the temperature can be adjusted freely between room temperature and 200 ℃, with stable temperature control;

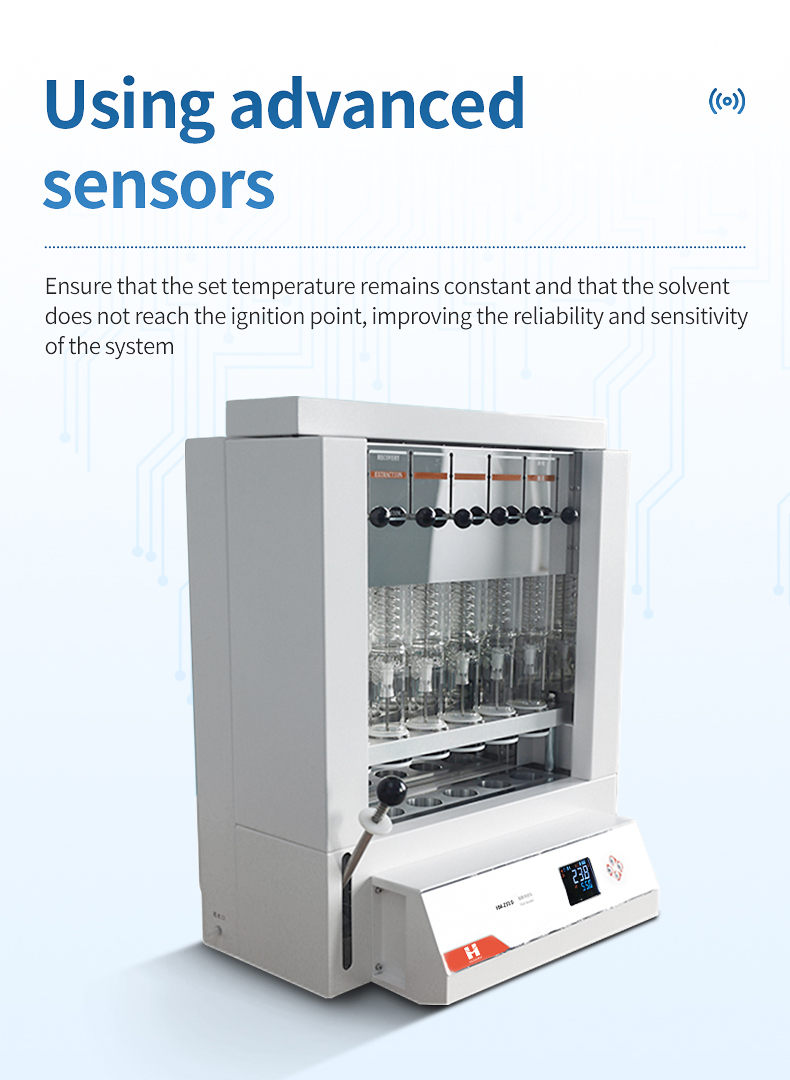

5. ★ Advanced sensors are used to ensure that the set temperature remains constant, and the use of solvents will not reach the ignition point, thereby improving the system

Reliability and sensitivity of the system;

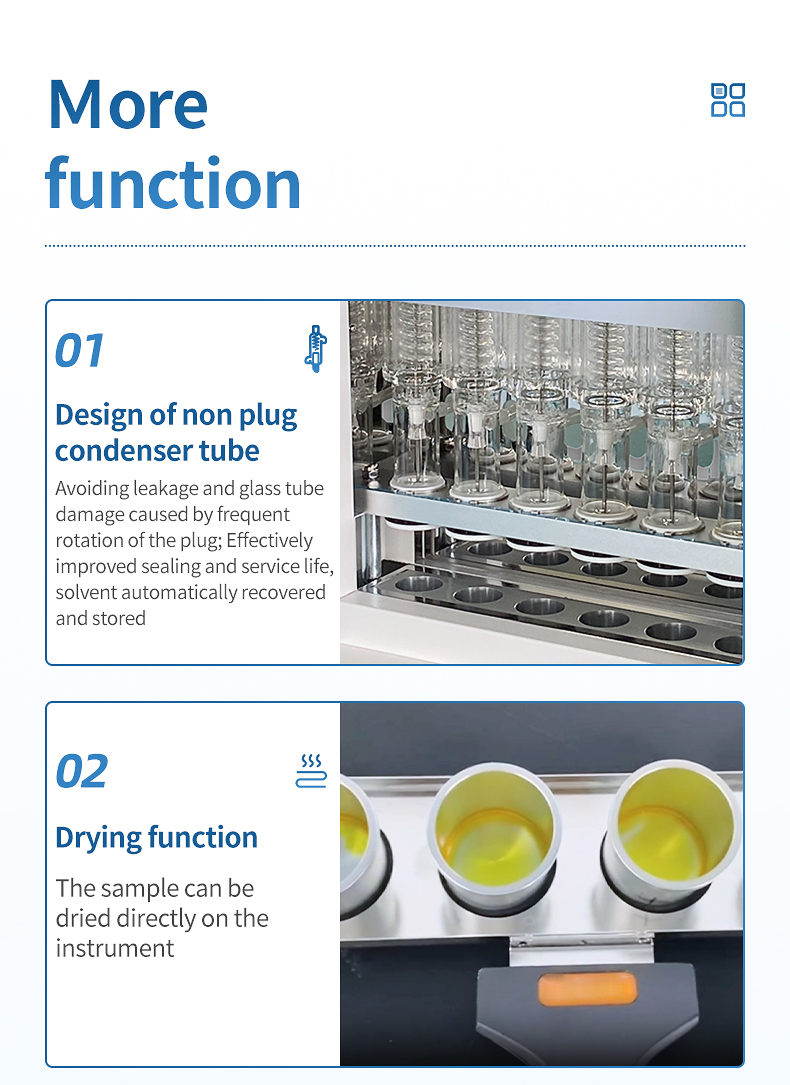

6. ★ Plug free condenser tube design: avoids leakage and glass tube damage caused by frequent rotation of the plug; Effectively improves sealing and service life, with automatic solvent recovery and storage;

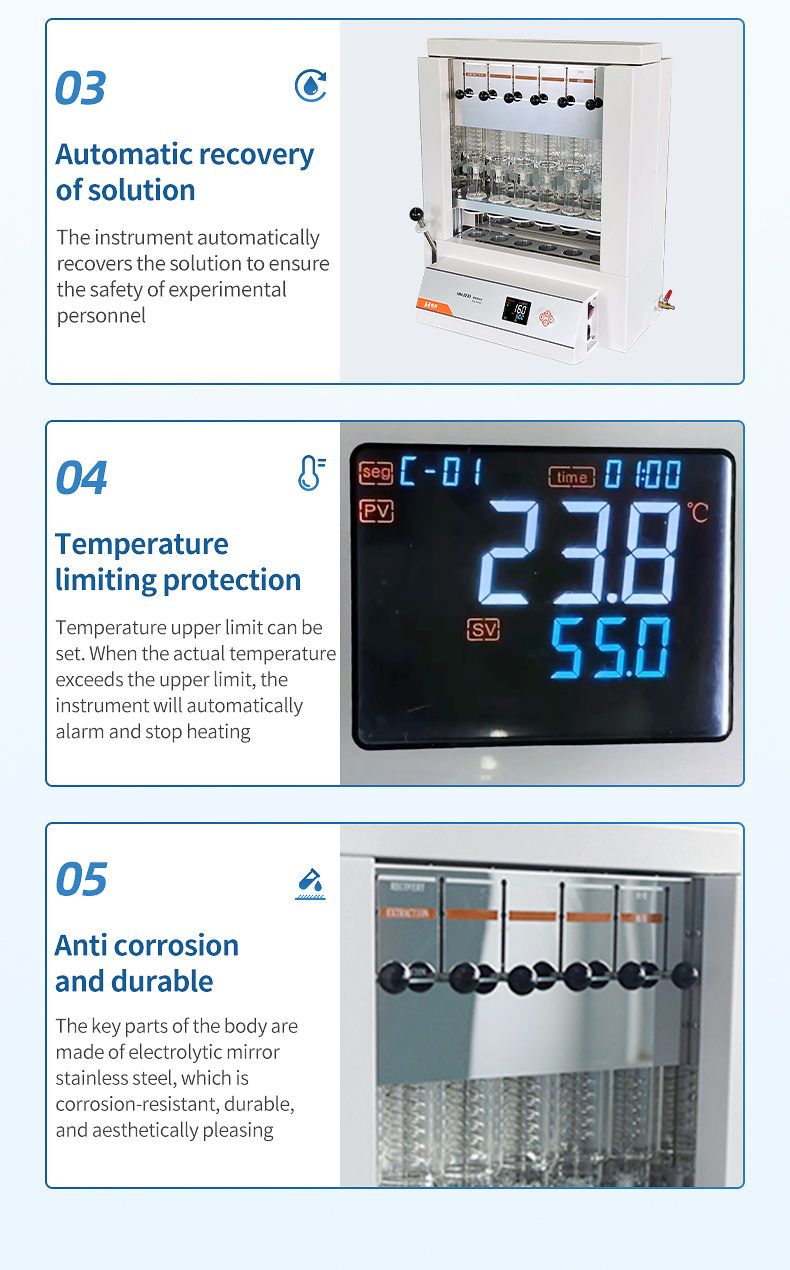

7. Temperature limit protection: The temperature upper limit can be set. When the actual temperature exceeds the upper limit, the instrument will automatically alarm and stop heating;

8. ★ Drying function: The sample can be dried directly on the instrument;

9. Automatic solution recovery: The instrument automatically recovers the solution to ensure the safety of experimental personnel

10. The key parts of the body are made of electrolytic mirror stainless steel, which is corrosion-resistant, durable, and aesthetically pleasing;

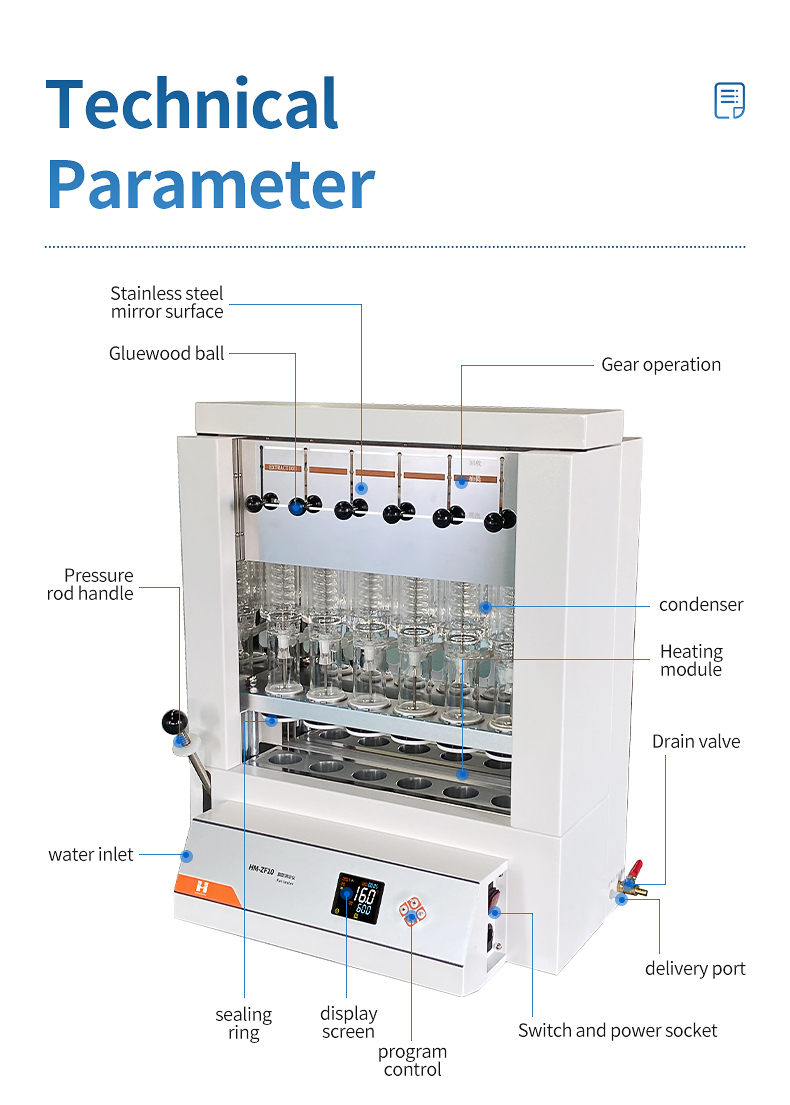

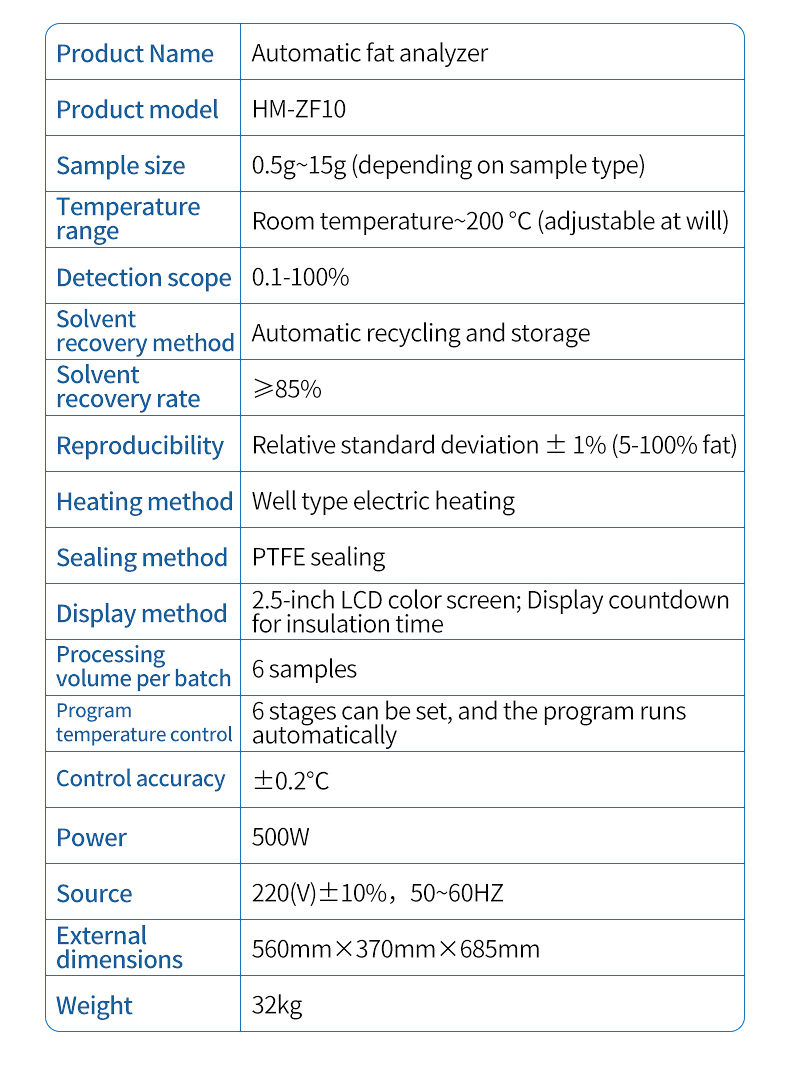

Technical Specifications:

Sample size: 0.5g~15g (depending on sample type)

Temperature control range: Room temperature~200 ℃ (adjustable arbitrarily)

Detection range: 0.1-100%

Solvent recovery method: automatic recovery and storage

Solvent recovery rate: ≥ 85%

Reproducibility: Relative standard deviation ± 1% (5-100% fat)

Heating method: Well type electric heating

Sealing method: PTFE sealing

Display mode: 2.5-inch LCD color screen; Insulation time display countdown

Batch processing capacity: 6 samples

Program temperature control: 6 stages can be set, and the program runs automatically

Temperature control accuracy: ± 0.2 ℃

Power: 500W

Power supply: 220 (V) ± 10%, 50~60HZ

Dimensions: 560 × 370 × 685 (mm)

Weight: 32kg
