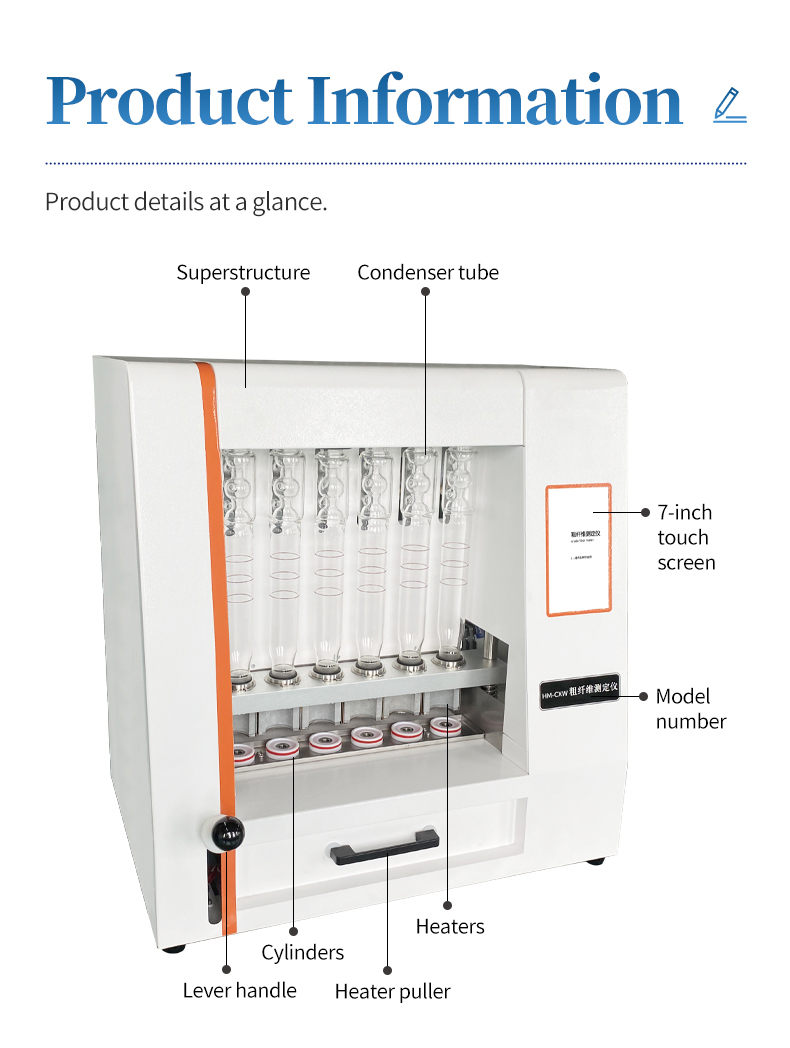

Crude Fiber Analyzer

Product Overview:

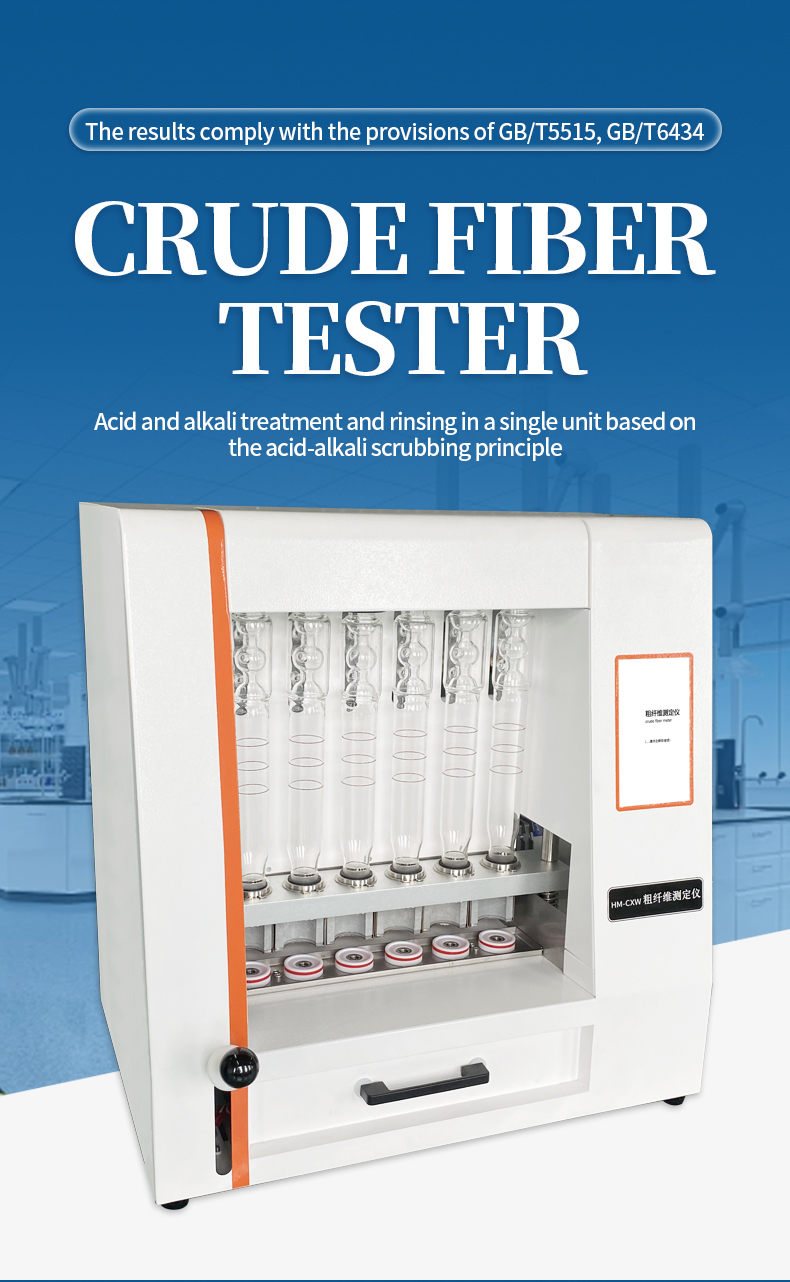

The crude fiber analyzer is a fiber content detection instrument that is easy to operate and flexible in application. It can be used for traditional Wende method to detect coarse fibers and normal form method to detect washing fibers. It is based on the principle of acid-base washing method, integrating acid and alkali treatment and rinsing. It uses fully enclosed electric heating, liquid addition, digestion, filtration, and rinsing methods to determine fiber content. Suitable for the determination of crude fiber in plants, feed, food, and other agricultural and sideline products, as well as the testing of washing fiber, cellulose, hemicellulose, and other related parameters. The results comply with the provisions of GB/T5515 and GB/T6434.

Product Features:

1. Adopting imported chip integrated circuit control system to ensure the high quality and standards of the instrument;

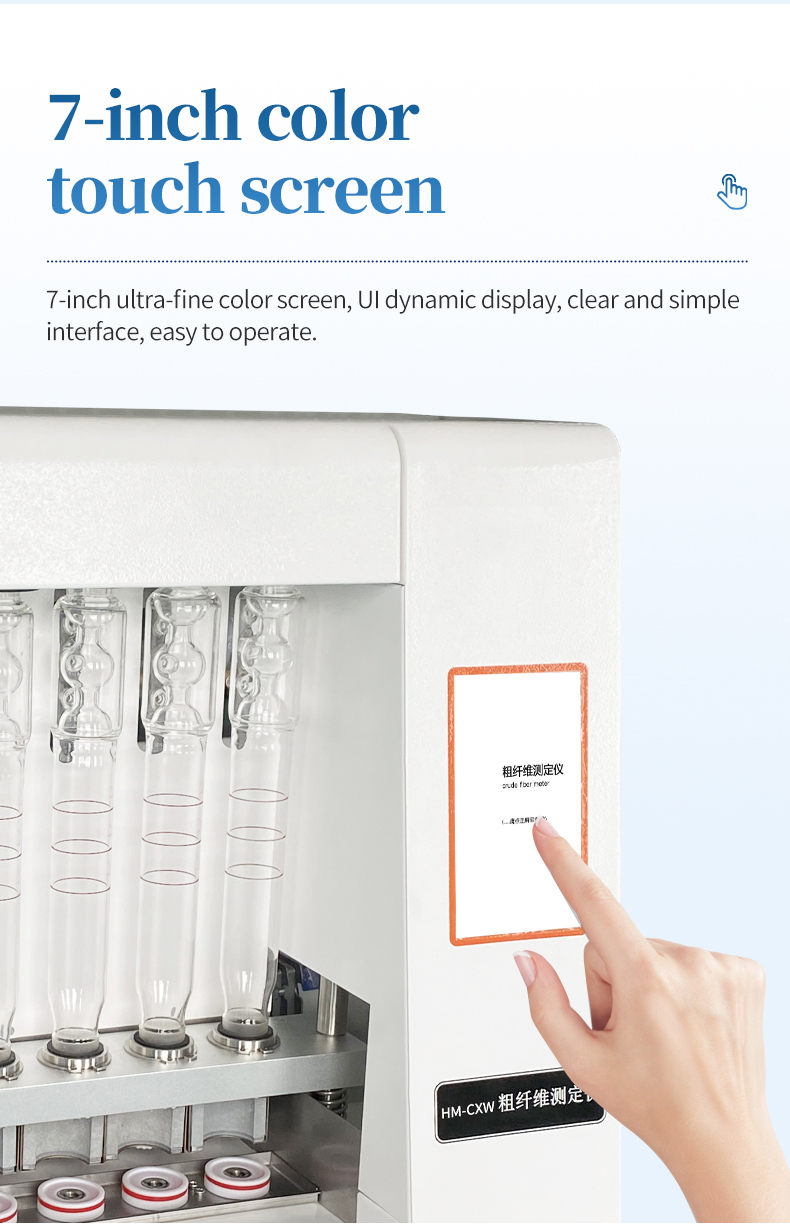

2.7-inch ultra-fine color screen, dynamic UI display, clear and simple interface, easy to operate;

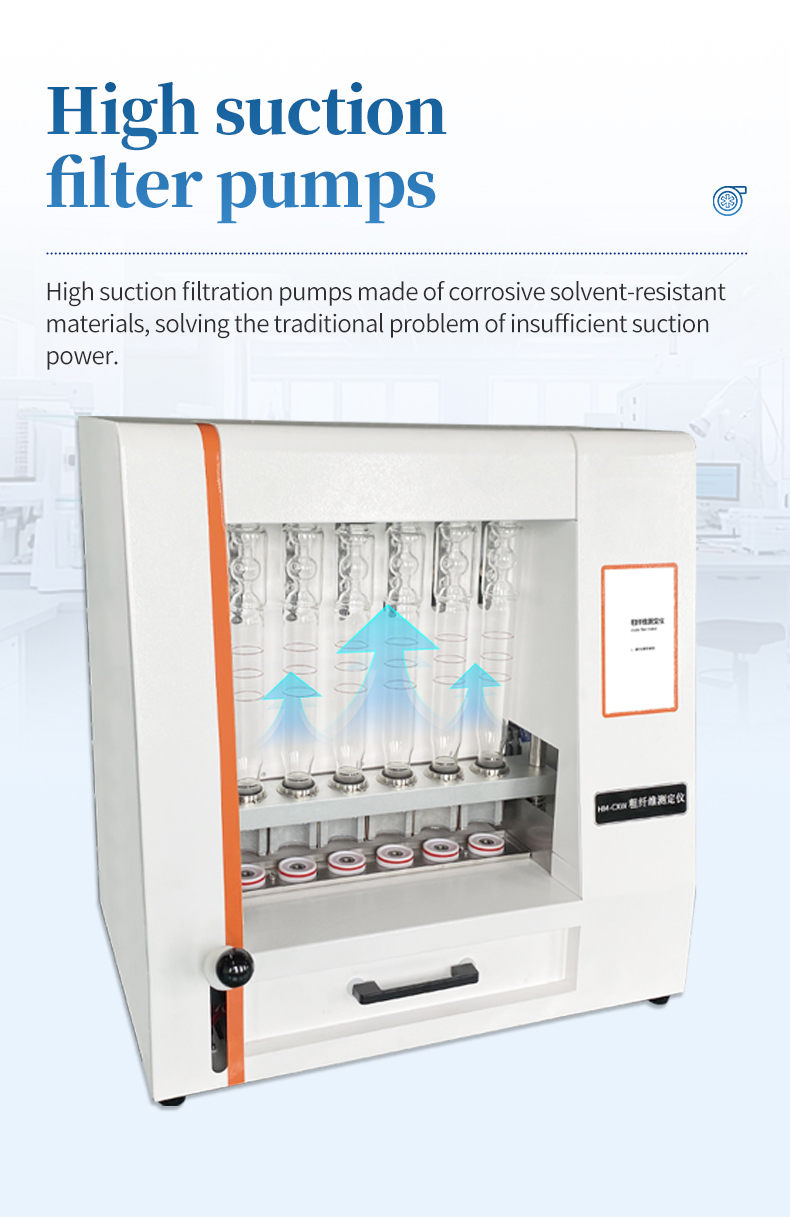

3. ★ High suction filtration pump, made of corrosion-resistant solvent material, solves the problem of insufficient traditional suction;

4. The body is designed without mechanical switches and adopts corrosion-resistant and highly sensitive valve island groups for more efficient and smooth operation;

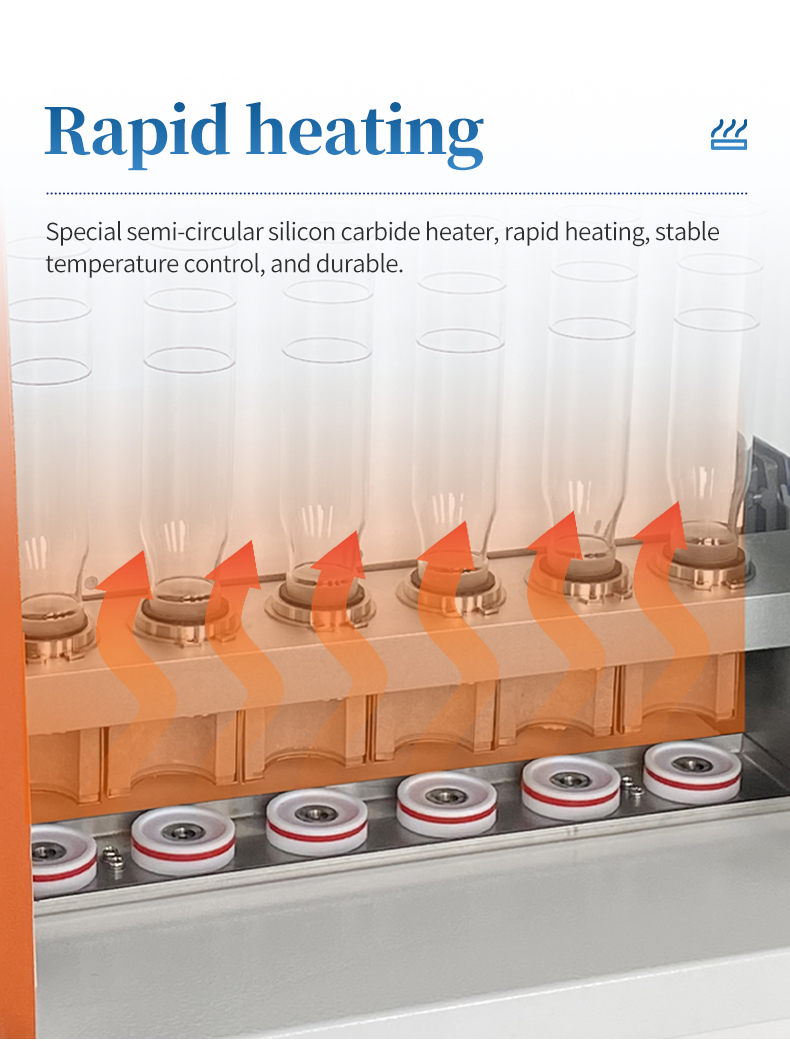

5. Specially designed semi-circular silicon carbide heater, with fast heating, stable temperature control, and durability;

6. Built in blowback pump solves the problem of sample cake formation in the crucible that cannot be filtered;

7. ★ External reagent preheating bucket, which can preheat the reagents before conducting experiments, speeding up the experiment time;

8. The program has a function to prevent excessive liquid from overflowing, which prevents corrosive liquids from overflowing due to operational errors during liquid addition and protects the safety of operators;

9. Can detect substances such as coarse fiber, detergent fiber, hemicellulose, cellulose, lignin, etc;

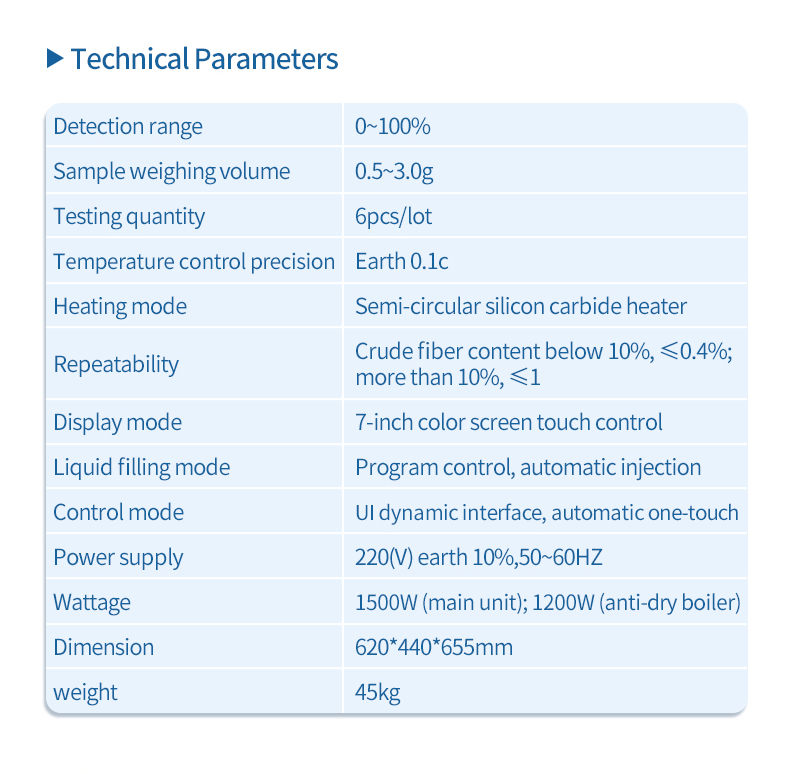

Technical Specifications:

Detection range: 0-100%

Sample weighing: 0.5~3.0g

Testing quantity: 6 pieces/batch

Temperature control accuracy: ± 0.1 ℃

Heating method: semi-circular silicon carbide heater

Repeatability: The crude fiber content is below 10%, ≤ 0.4%; More than 10%, ≤ 1%

Display mode: 7-inch color screen touch control

Liquid addition method: program control, automatic injection

Control mode: UI dynamic interface, automatic one click mode

Power supply: 220 (V) ± 10%, 50~60HZ

Power: 1500W (host); 1200W (anti dry burning boiling pot)

Dimensions: 620 * 440 * 655mm

Weight: 45kg
