Contact Angle Goniometer

Product Introduction

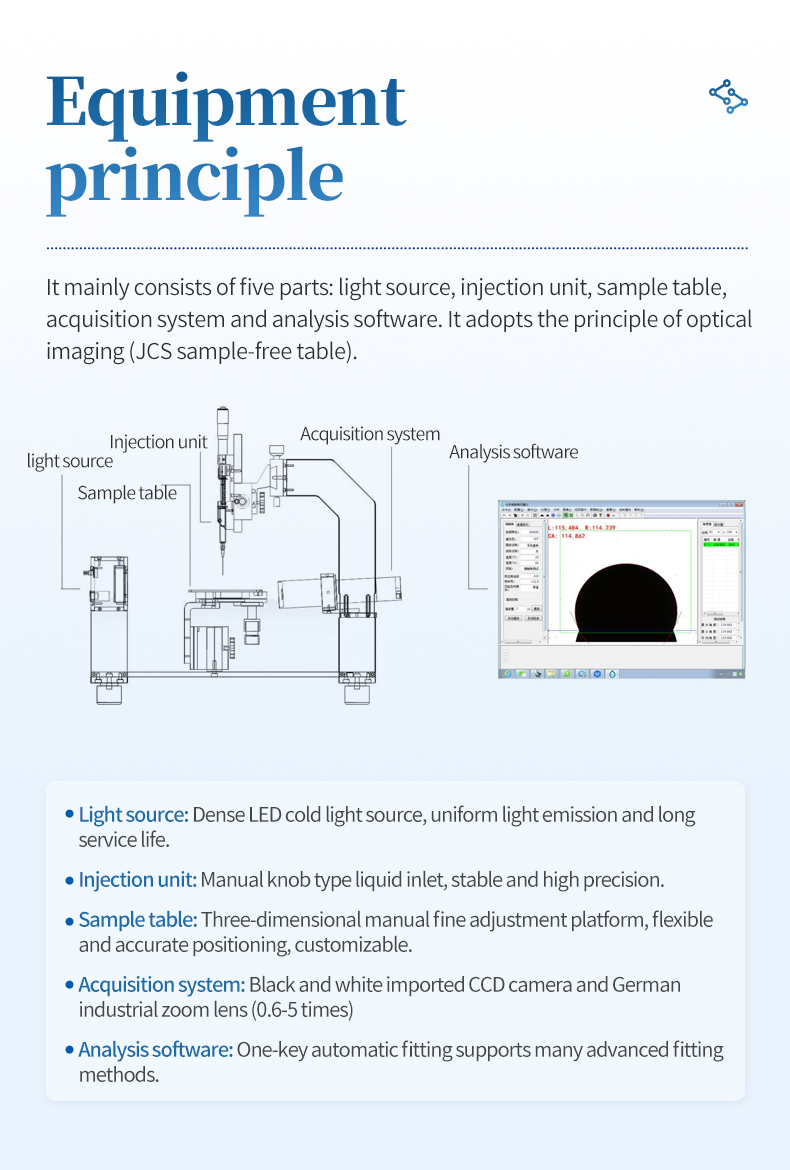

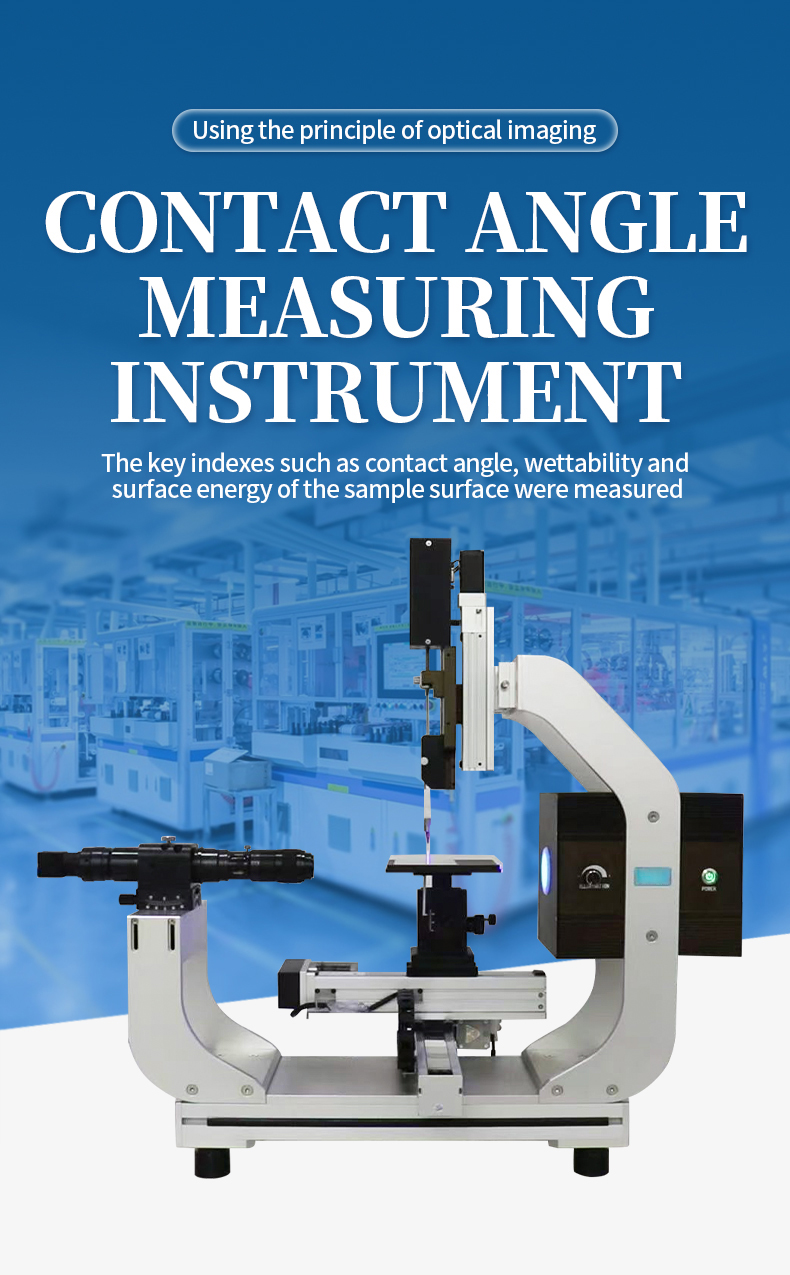

Optical contact angle measuring instrument is an instrument used to measure the contact angle between liquid and solid materials. It is mainly used to characterize the wetting performance of liquid on the surface of solid materials. The image of liquid droplets is obtained through optical imaging, and the contour of the droplet image is fitted by mathematical models using computer software to obtain the contact angle or surface tension. Surface energy calculation and wetting analysis are also performed.

Application Scope

It can be widely applied in materials research, industrial coatings, mobile phone manufacturing, biomedicine, electronic circuits, textile fibers, petroleum extraction, aerospace and other fields.

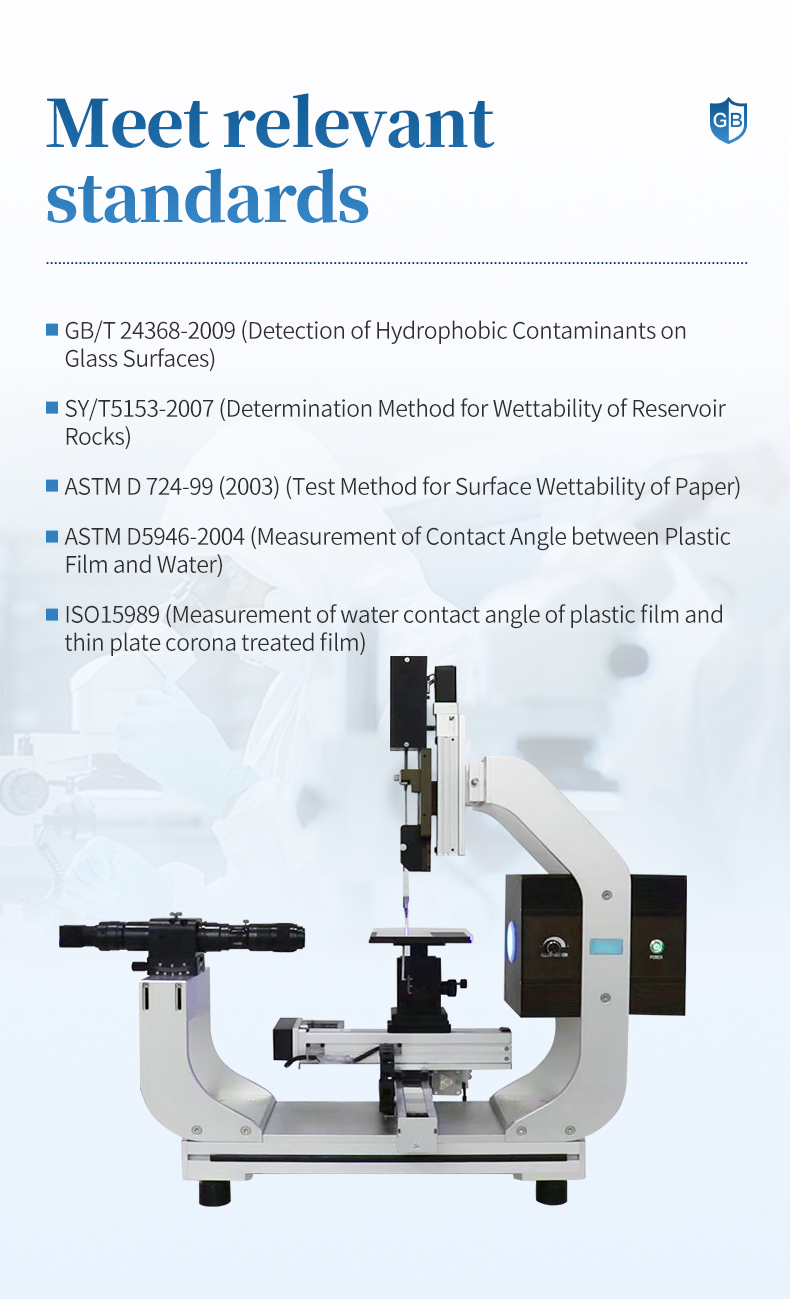

Execution Standards (partial standards)

JJF 2099-2024 Calibration Specification for Optical Contact Angle Measuring Instruments;

2. GBT 30693-2014 Measurement of Contact Angle between Plastic Film and Water;

3. GBT 30447-2013 Measurement Method for Contact Angle of Nanofilm;

4. GBT 42694-2023 Testing and Evaluation of Surface Wettability of Textiles - Contact Angle and Rolling Angle Method;

5. ASTM D 724-1999 (2003) Standard Test Method for Surface Wettability of Paper (Contact Angle Method);

Product Features

1. High precision and wide range measurement capability, supporting contact angle measurement and surface tension measurement.

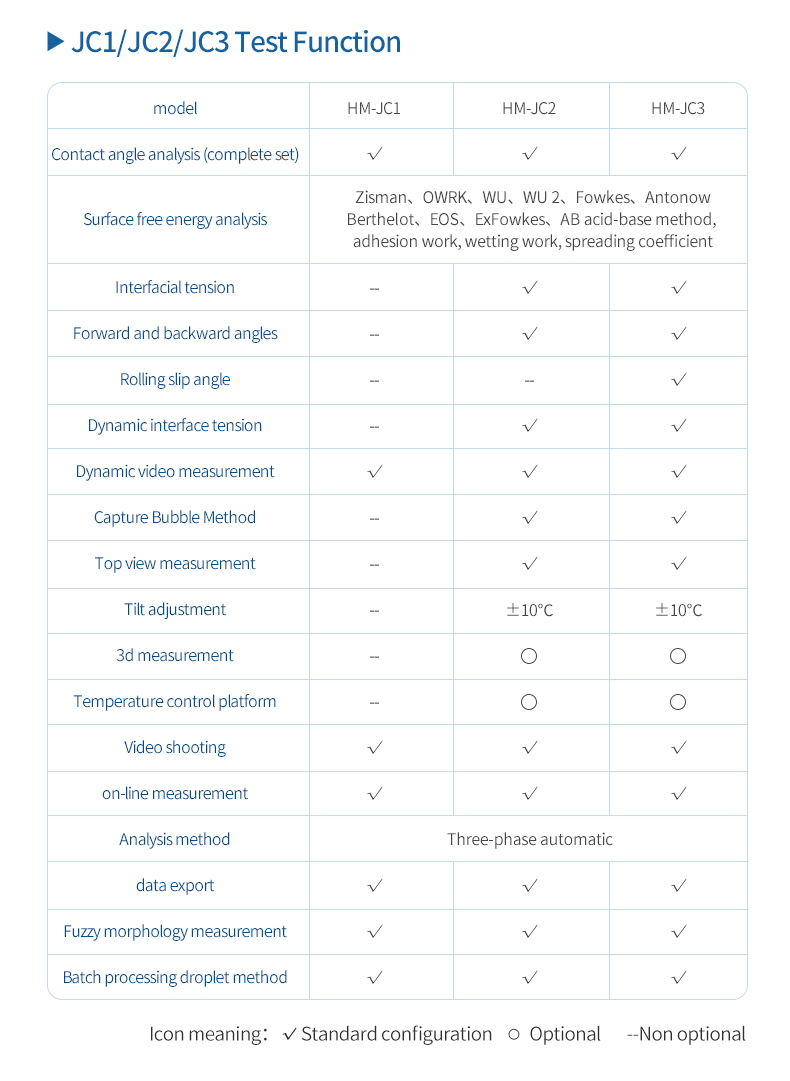

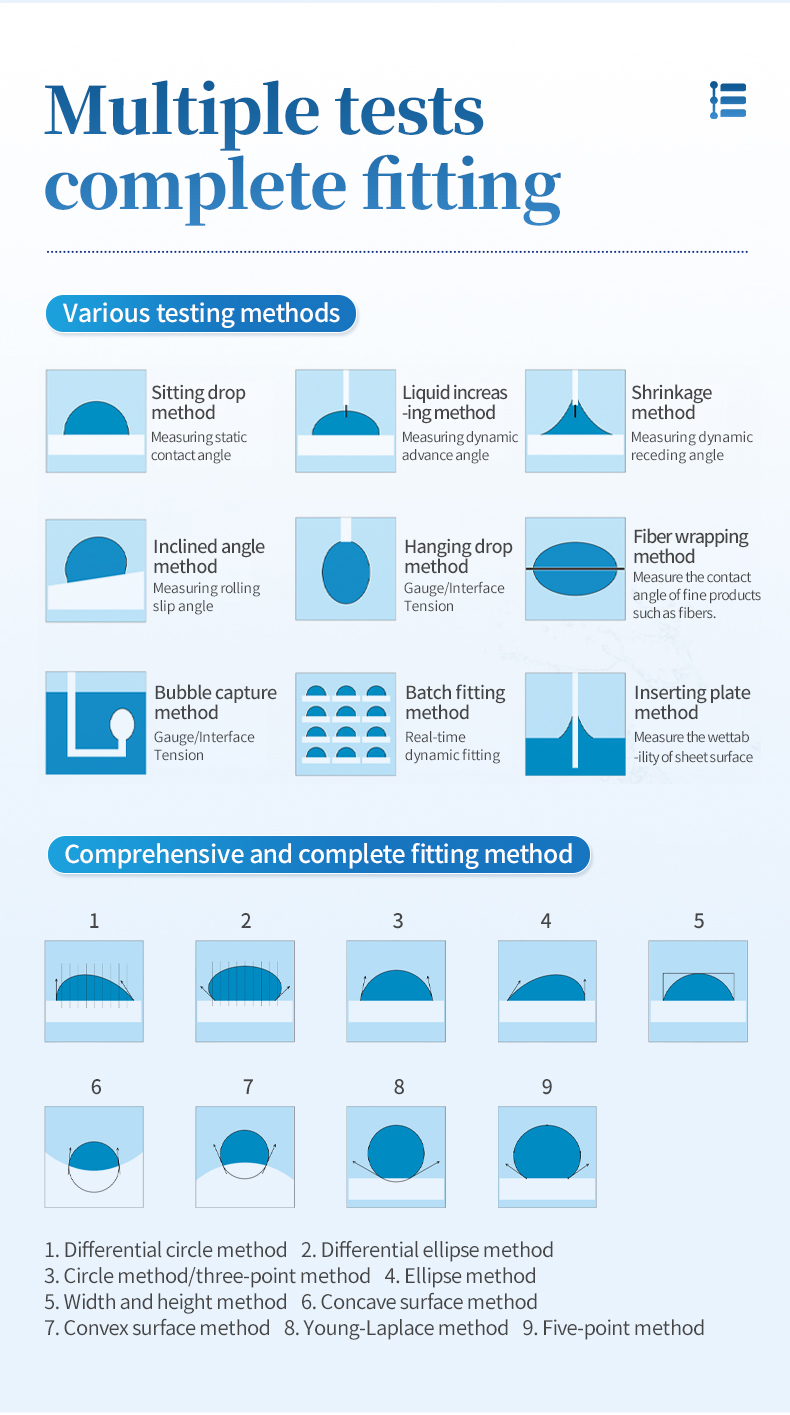

2. Multi functional analysis module and algorithm, multi-mode measurement method; Surface energy and wettability analysis.

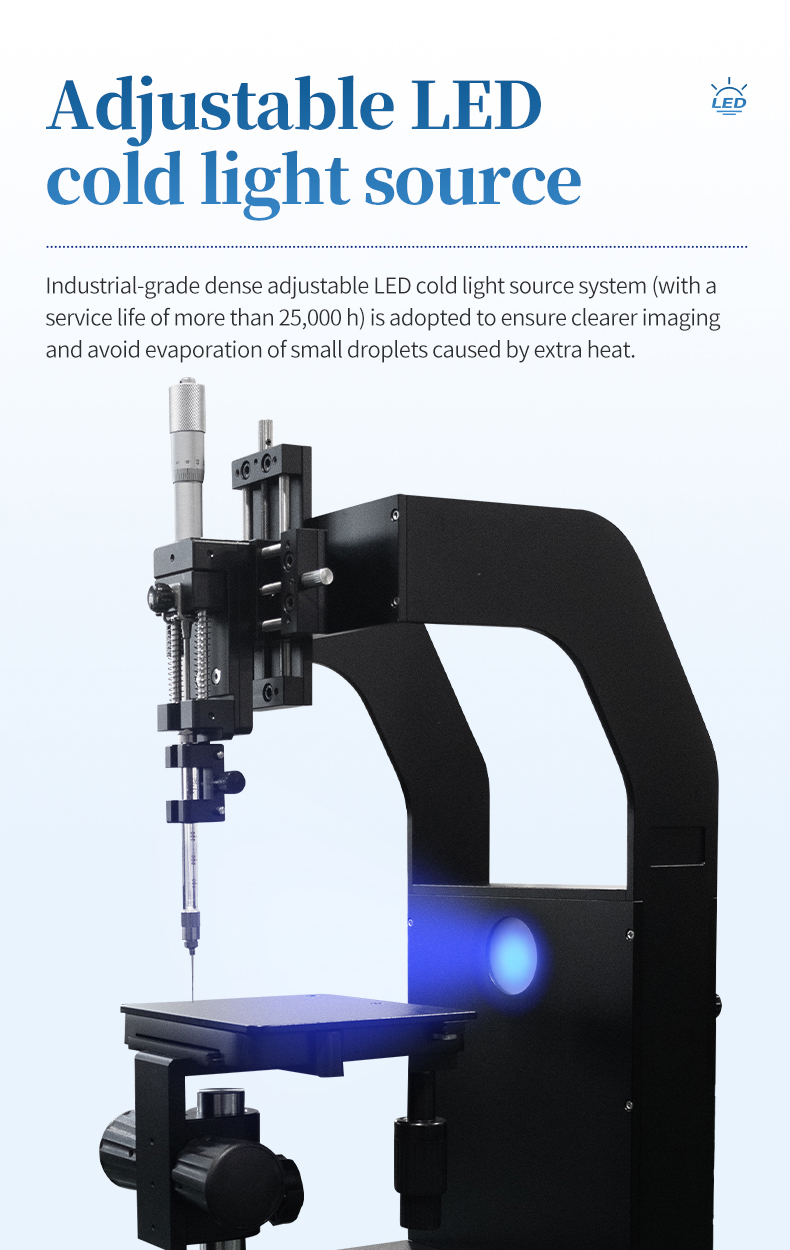

3. Adopting dense LED cold light design, uniform light emission, image cleaning, long lifespan;

4. The sample stage adopts a three-dimensional manual precision adjustment platform, which is flexible in operation and accurate in positioning. The sample stage can be customized according to the actual sample size;

5. High definition imaging system: High definition industrial camera, continuous zoom telephoto lens, stable shooting, clear images;

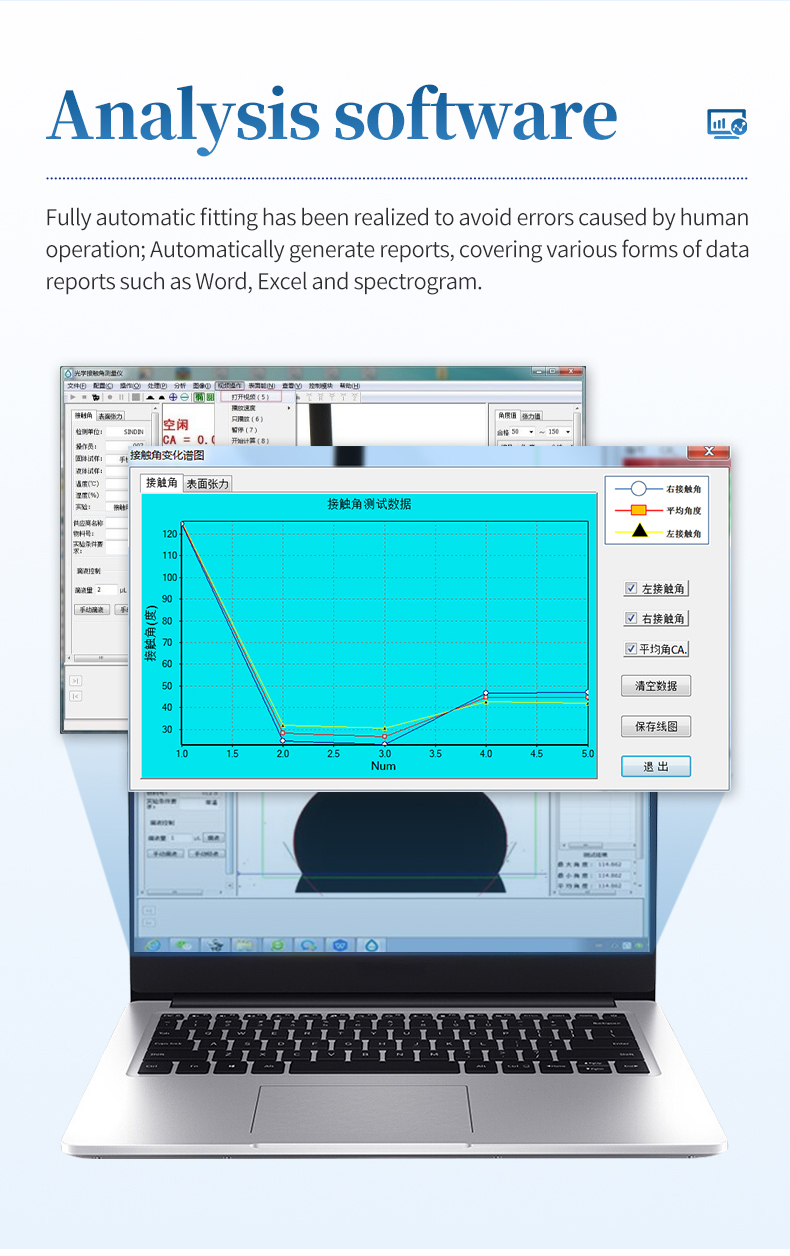

6. The analysis software has powerful functions: it has a one click fully automatic fitting ability and the most advanced fitting method internationally, meeting the precise fitting of various droplet shapes;

• Previous: no more

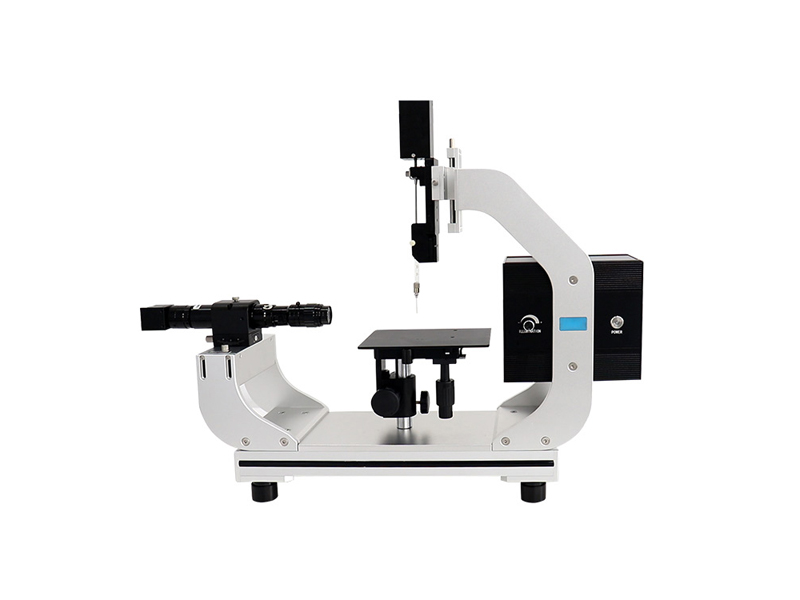

• Next: Contact Angle Meter
