Ion Chromatography Instrument

As a new business model in the ion chromatography instrument market, our company has been committed to providing users with faster and higher quality instruments to ensure the construction and operation of laboratories. Always adhere to customer-centric approach and serve customers with testing needs. Good value for money, quick response, and comprehensive service.

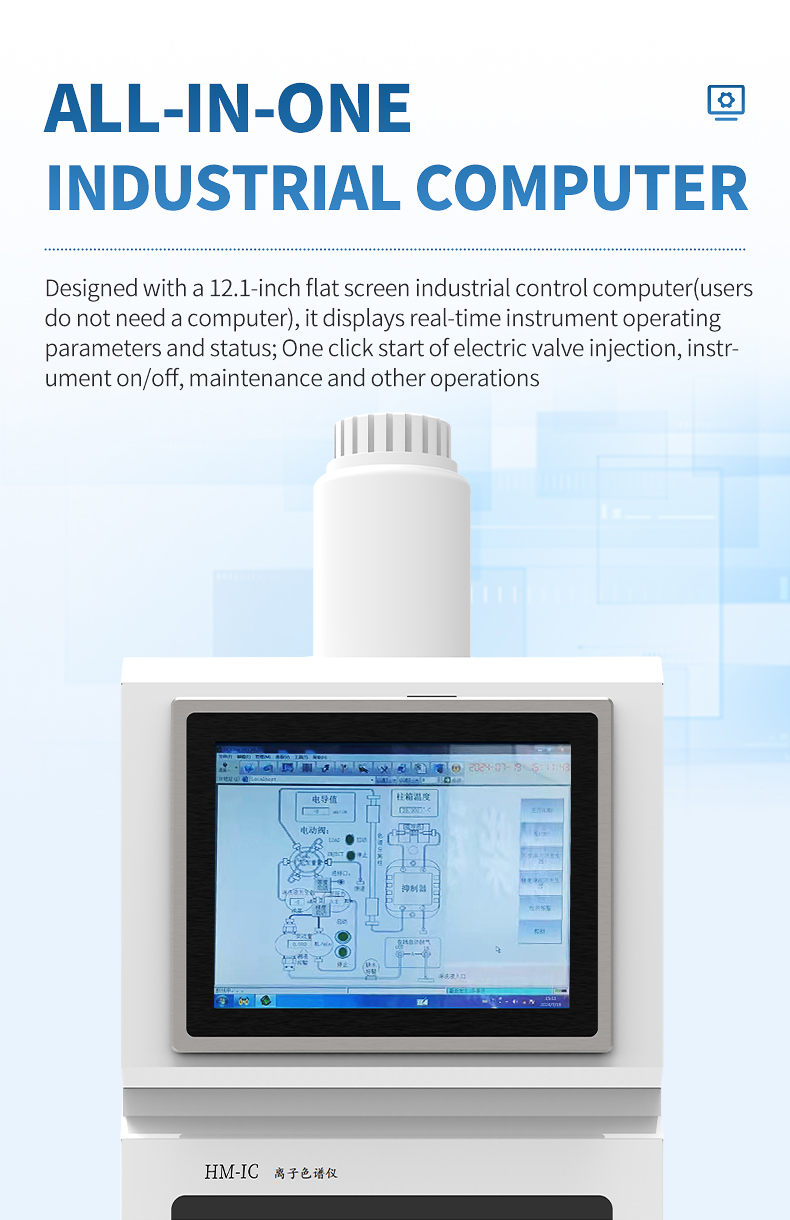

The new generation ion chromatograph adopts a 12.1-inch flat industrial computer integrated design (users do not need to equip a computer), which displays the instrument's operating parameters and status in real time; One click start of electric valve injection, one click completion of instrument on/off, maintenance and other operations, one click access to instrument operation tutorials, convenient and fast.

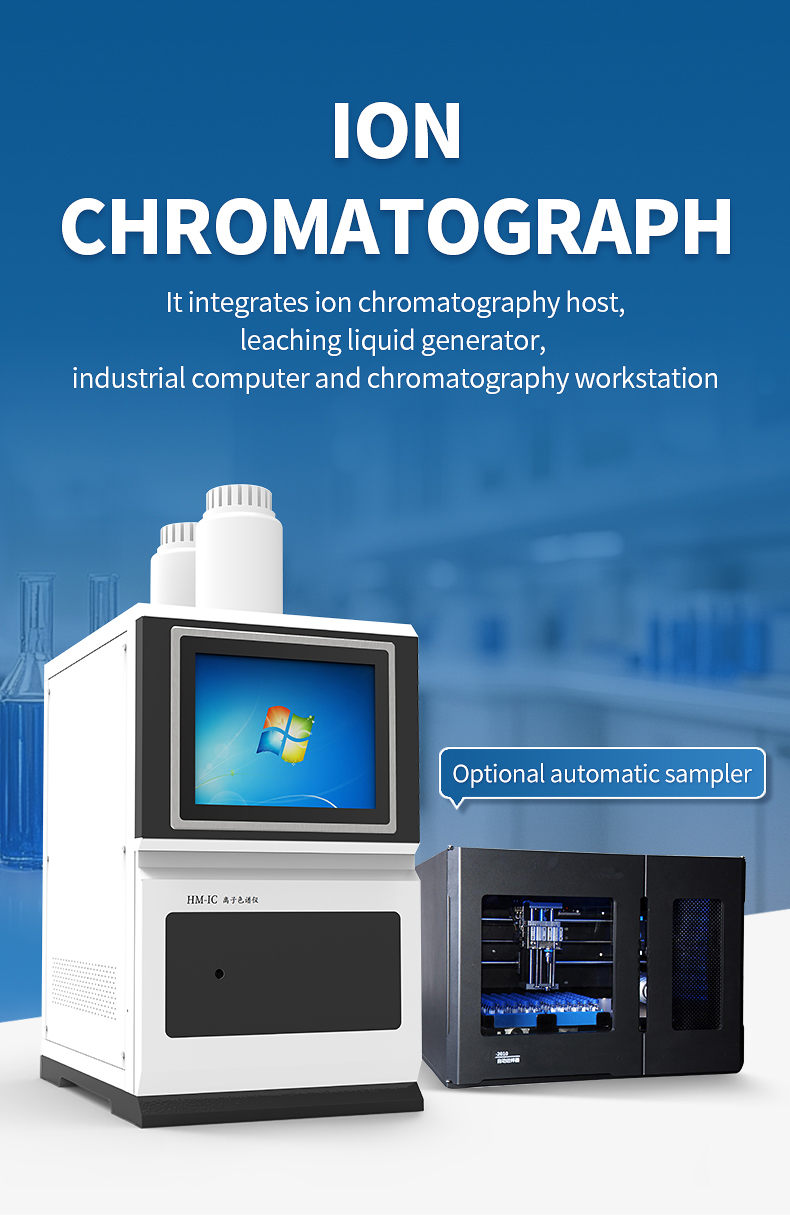

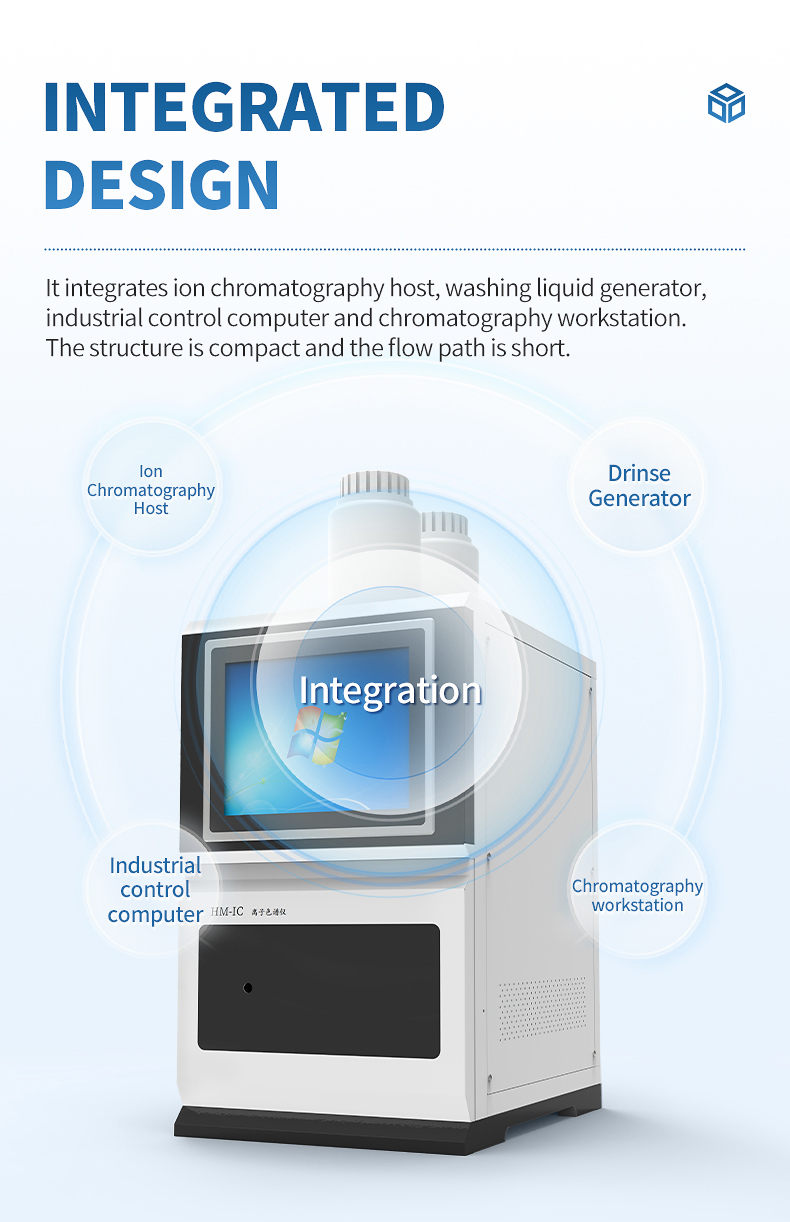

The core components of ion chromatography are independently developed and have controllable intellectual property rights. Adopting an integrated design, it integrates the ion chromatography host, eluent generator, industrial computer, and chromatography workstation into one, with a compact structure and the shortest flow path, which greatly improves the peak expansion caused by the flow path. Integrated constant temperature box: The chromatographic column, suppressor, conductivity cell, and amplification circuit are all in the same constant temperature system, which improves the temperature drift and baseline noise of the conductivity detector. Built in multiple leak and water shortage alarms for comprehensive safety monitoring. The various components controlled by PLC are unified into a centralized software control system on the computer display screen, which is easy to operate and controlled by the mouse.

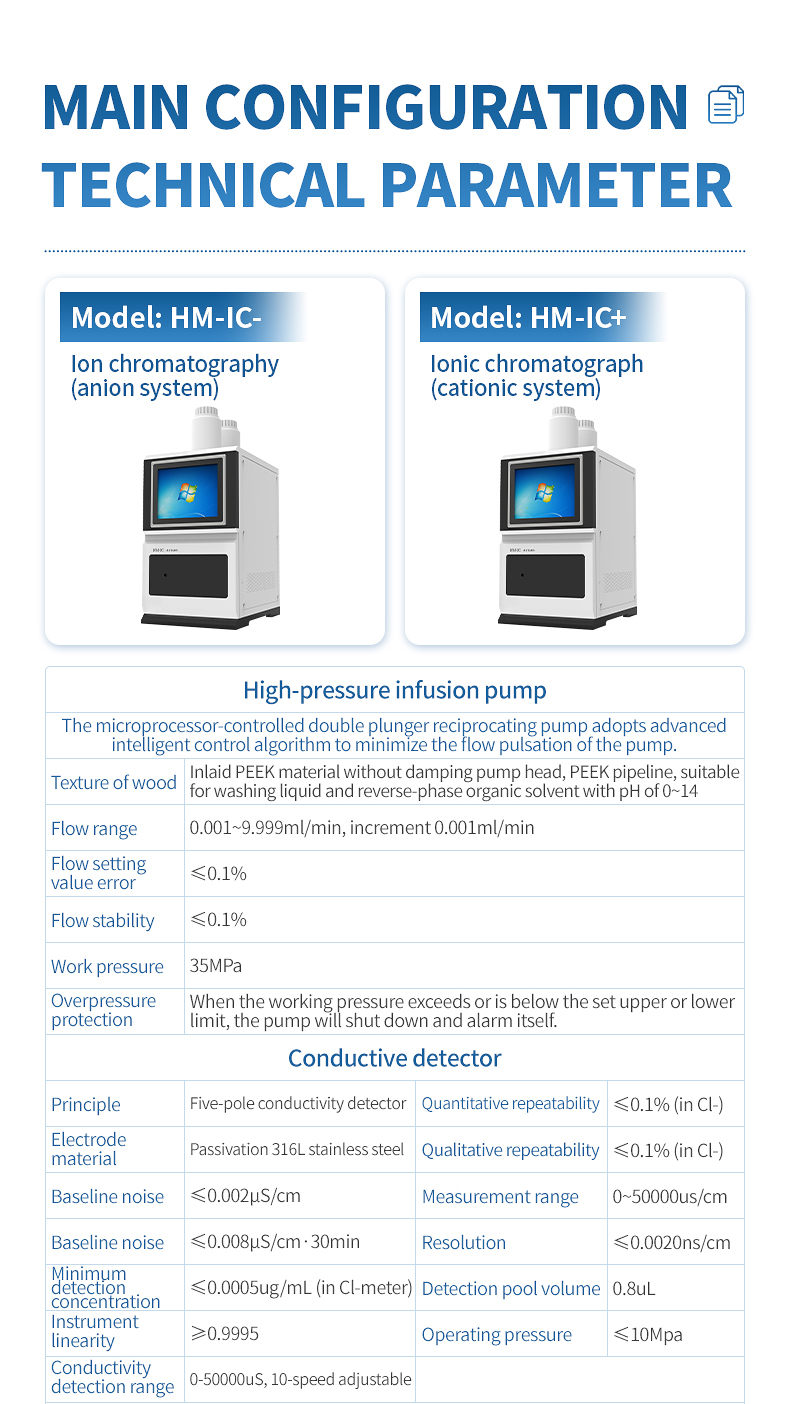

Main configuration and technical parameters:

1. High pressure infusion pump:

The microprocessor controlled dual plunger reciprocating pump adopts advanced intelligent control algorithms to minimize the flow pulsation of the pump.

1.1 Material: Inlaid PEEK material without damping pump head, PEEK pipeline, suitable for pH 0-14 rinsing solution and reverse phase organic solvents.

1.2 Flow range: 0.001~9.999ml/min, incremental 0.001ml/min.

1.3. Flow setting error: ≤ 0.1%

1.4. Traffic stability: ≤ 0.1%

1.5. Working pressure: 35MPa

1.6. Overpressure protection: When the working pressure exceeds or falls below the set upper or lower limit, the pump will automatically shut down and sound an alarm.

2 Conductivity detector:

2.1 Principle: Five pole conductivity detector

2.2. Electrode material: passivated 316L stainless steel

2.3. Baseline noise: ≤ 0.002 μ S/cm

2.4. Baseline drift: ≤ 0.008 μ S/cm · 30min

2.5, minimum detectable concentration: ≤ 0.0005ug/mL (calculated as Cl -)

2.6, Instrument linearity: ≥ 0.9995

2.7, Quantitative repeatability: ≤ 0.1% (calculated as Cl -)

2.8, Qualitative repeatability: ≤ 0.1% (calculated as Cl -)

2.9, Measurement range: 0~50000us/cm

2.10, Resolution: ≤ 0.0020n/s/cm

2.11, detection pool volume: 0.8uL

2.12. Operating pressure: ≤ 10Mpa.

2.13, Conductivity detection range: 0-50000uS, adjustable in 10 levels.

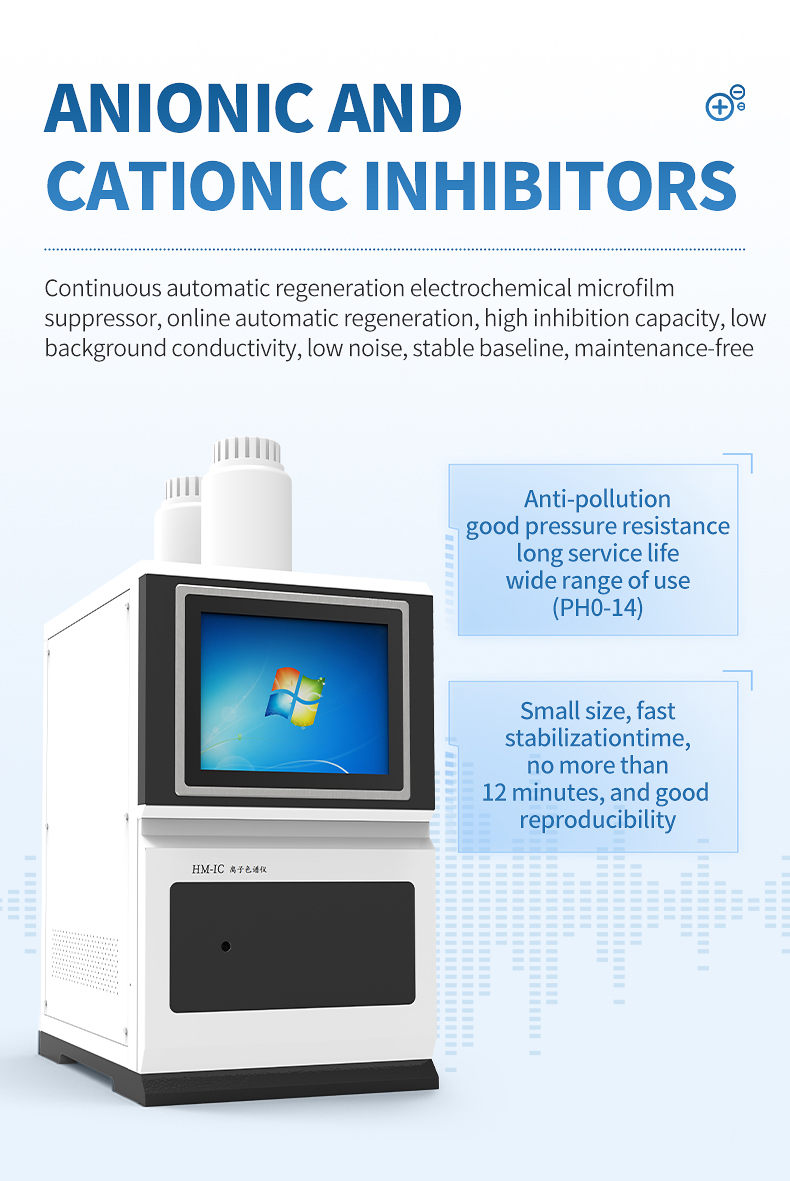

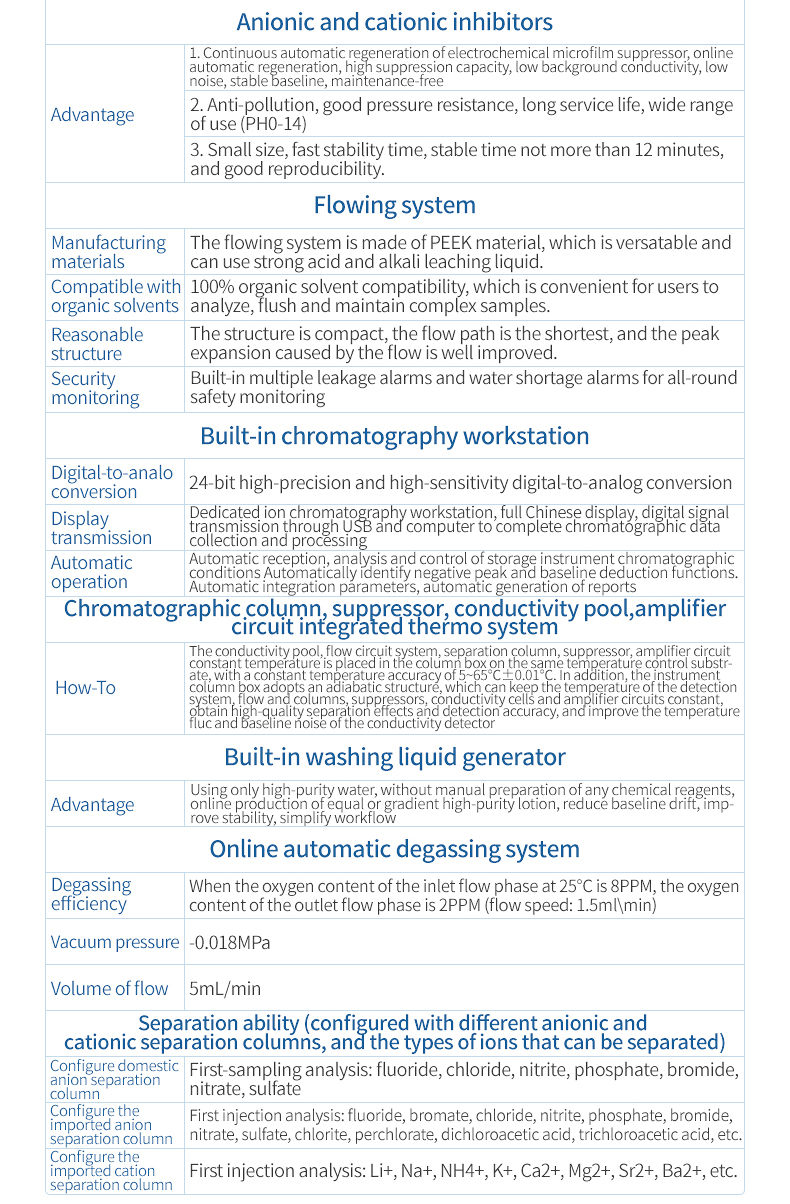

3. Negative and cationic suppressors:

3.1 Continuous automatic regeneration electrochemical biofilm suppressor, online automatic regeneration, high suppression capacity, low background conductivity, low noise, stable baseline, maintenance free.

3.2 Anti pollution, good pressure resistance, long service life, and wide range of use (PH0-14).

3.3 Small size, fast stabilization time, stabilization time not exceeding 12 minutes, and good reproducibility.

4 Flow System:

4.1 The flow path system is made of PEEK material, which has good universality and can use strong acid and strong alkali leaching solutions.

4.2 100% organic solvent compatibility, convenient for users to analyze, rinse, and maintain complex samples.

4.3 Compact structure, shortest flow path, and significant improvement in peak expansion caused by flow path.

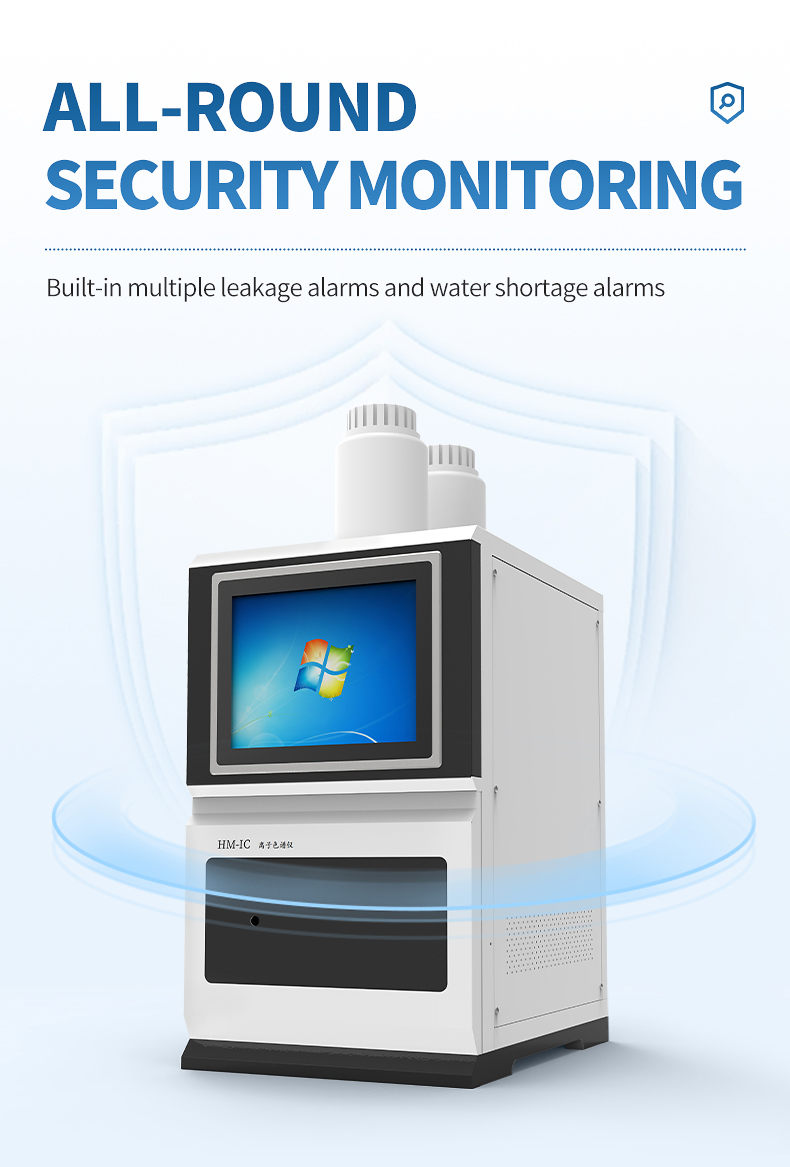

4.4 Built in multiple leakage alarms and water shortage alarms for comprehensive safety monitoring.

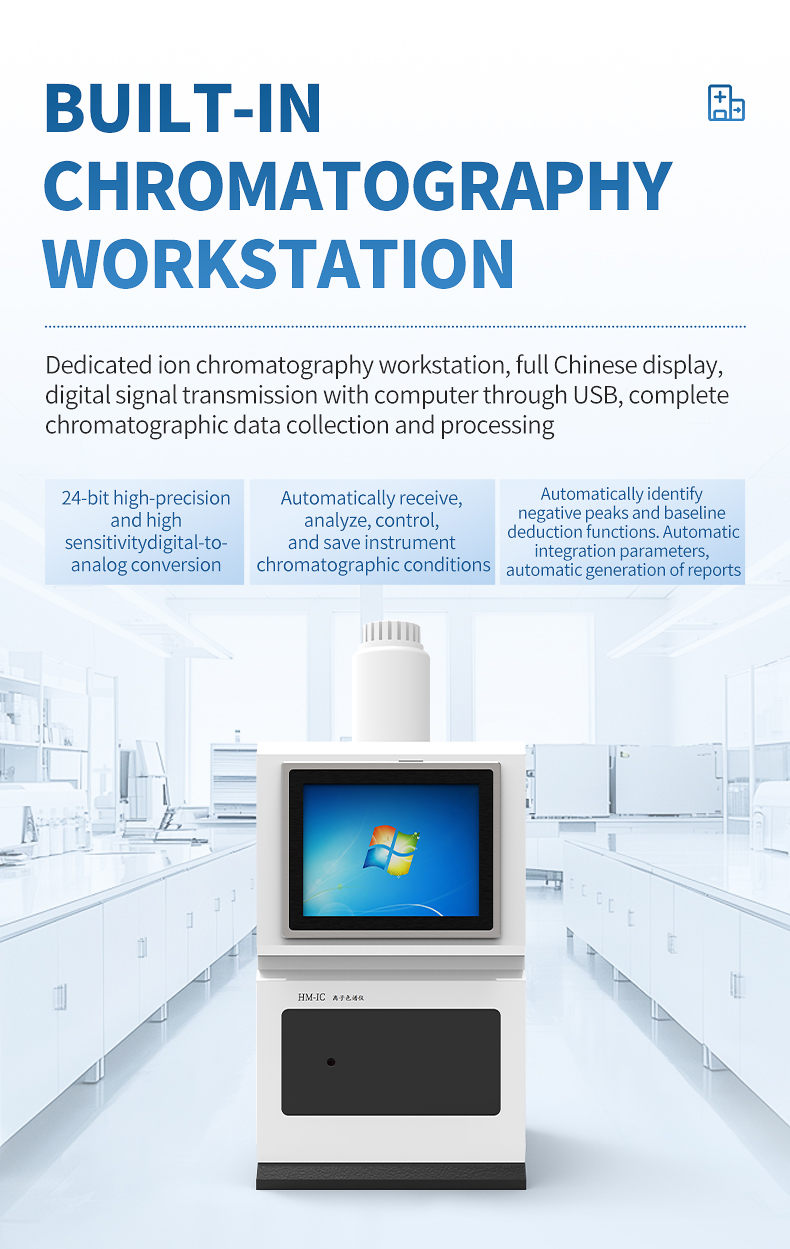

5 Built in chromatography workstations:

5.1 24 bit high-precision and high-sensitivity degree to analog conversion.

5.2 Dedicated ion chromatography workstation, fully displayed in Chinese, capable of transmitting digital signals to a computer via USB to complete chromatographic data acquisition and processing.

5.3 Automatic reception, analysis, and control of instrument chromatographic conditions.

5.4 Automatic identification of negative peaks and baseline deduction function. Automatically integrate parameters and generate reports.

Integrated constant temperature system including chromatography column, suppressor, conductivity cell, and amplification circuit:

Place the conductivity cell, flow path system, separation column, suppressor, and amplifier circuit at a constant temperature on the same temperature control substrate inside the column box, with a constant temperature accuracy of 5-65 ℃± 0.01 ℃. And the instrument column box adopts an insulated structure, which can keep the temperature of the detection system, flow path and column, suppressor, conductivity cell, and amplification circuit constant, achieving high-quality separation effect and detection accuracy, and improving the temperature drift and baseline noise of the conductivity detector.

7 built-in rinsing solution generator, using only high-purity water, without the need for manual preparation of any chemical reagents, producing isocratic or gradient high-purity rinsing solution online, reducing baseline drift, improving stability, and simplifying workflow.

8 Online automatic degassing system:

1. Degassing efficiency: When the oxygen content of the inlet mobile phase is 8PPM at 25 ℃, the oxygen content of the outlet mobile phase is 2PPM (flow rate: 1.5ml/min)

2. Vacuum pressure: -0.018MPa

3. Flow rate: 5mL/min

9 Separation ability: (Different anion and cation separation columns are configured separately, and the types of ions that can be separated are:)

Configure domestic anion separation column: one-time injection analysis: fluoride, chloride, nitrite, phosphate, bromide, nitrate, sulfate

Configure imported anion separation column: one-time injection analysis: fluoride, bromate, chloride, nitrite, phosphate, bromide, nitrate, sulfate, chlorite, perchlorate, dichloroacetic acid, trichloroacetic acid, etc

Configure imported cation separation column: One injection analysis: Li+, Na+, NH4+, K+, Ca2+, Mg2+, Sr2+, Ba2+, etc

10 Weight: Approximately 30kg Size mm: Length 500, Width 400, Height 600
