Hydrogen Generator

Instrument Introduction:

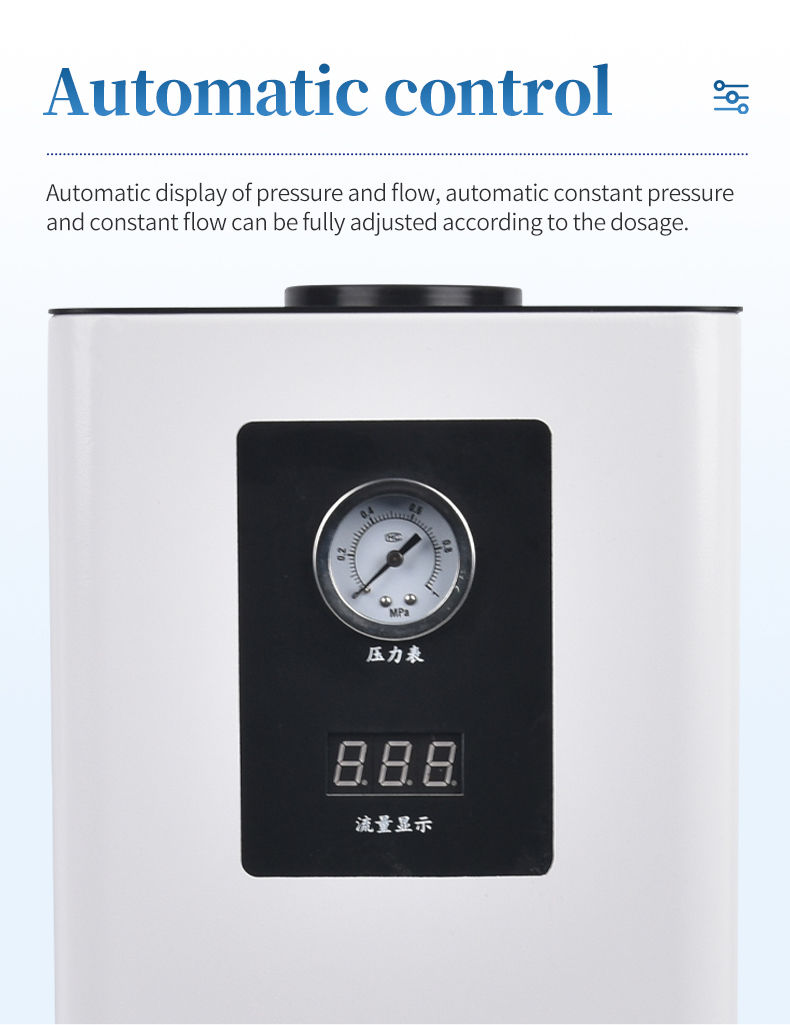

1. Automatic display of pressure and flow rate, automatic constant pressure, constant current, and hydrogen flow rate can be fully automatically adjusted according to usage.

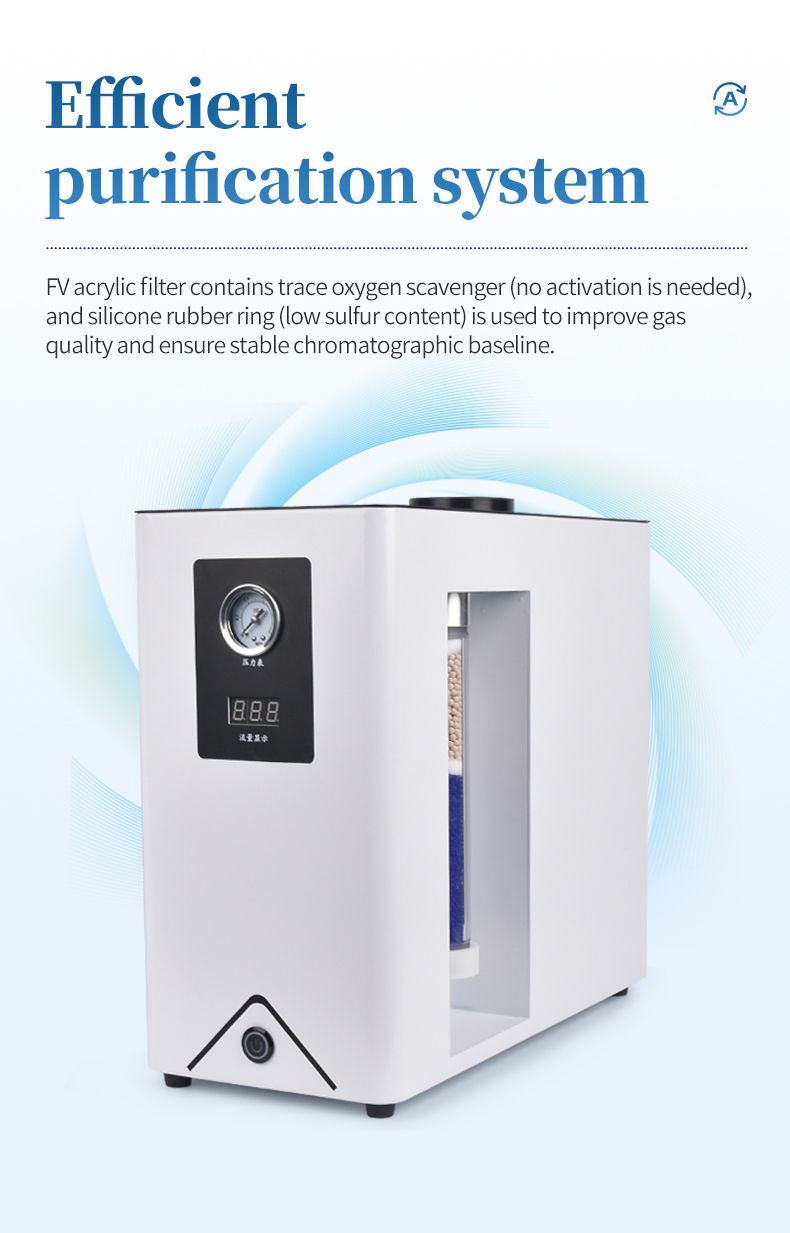

2. FV type acrylic filter with trace oxygen removal agent (no activation required) inside, resulting in higher hydrogen purity; The instrument uses silicone rubber rings (with low sulfur content) inside to effectively improve gas quality and ensure a stable chromatographic baseline.

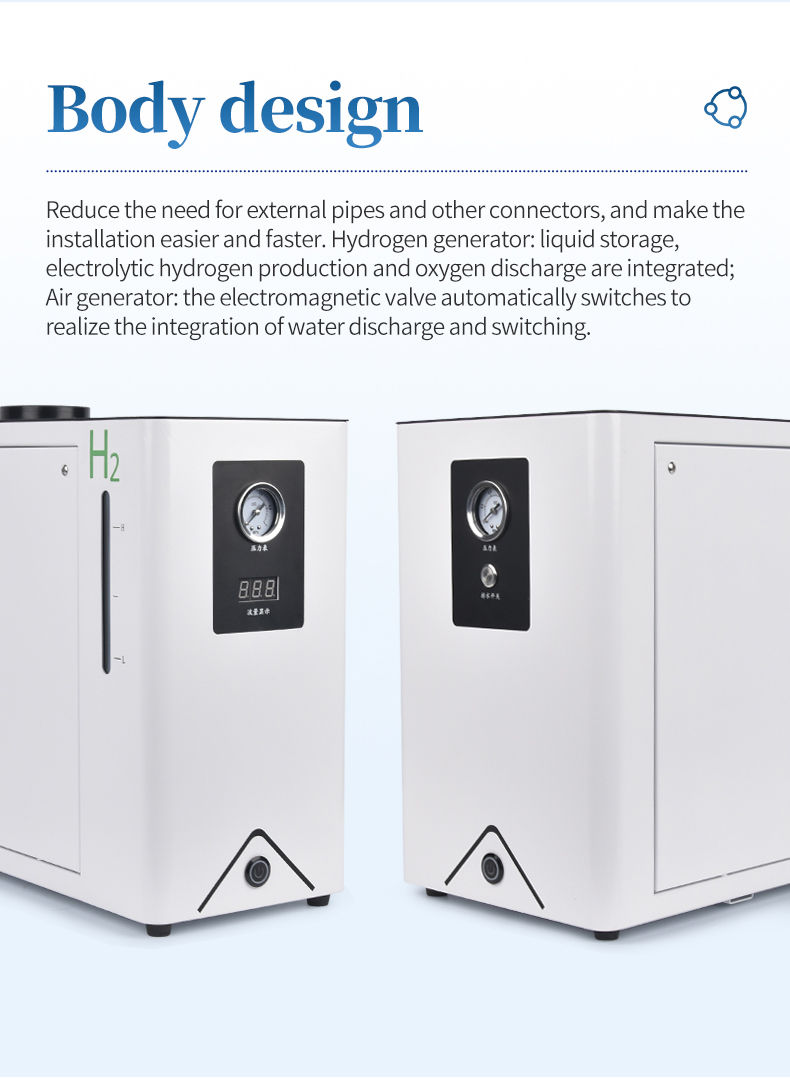

3. Integrated liquid storage, electrolytic hydrogen production, and oxygen discharge, with low pool temperature and long lifespan.

4. Equipped with safety devices, sensitive and reliable, automatic anti alkali return.

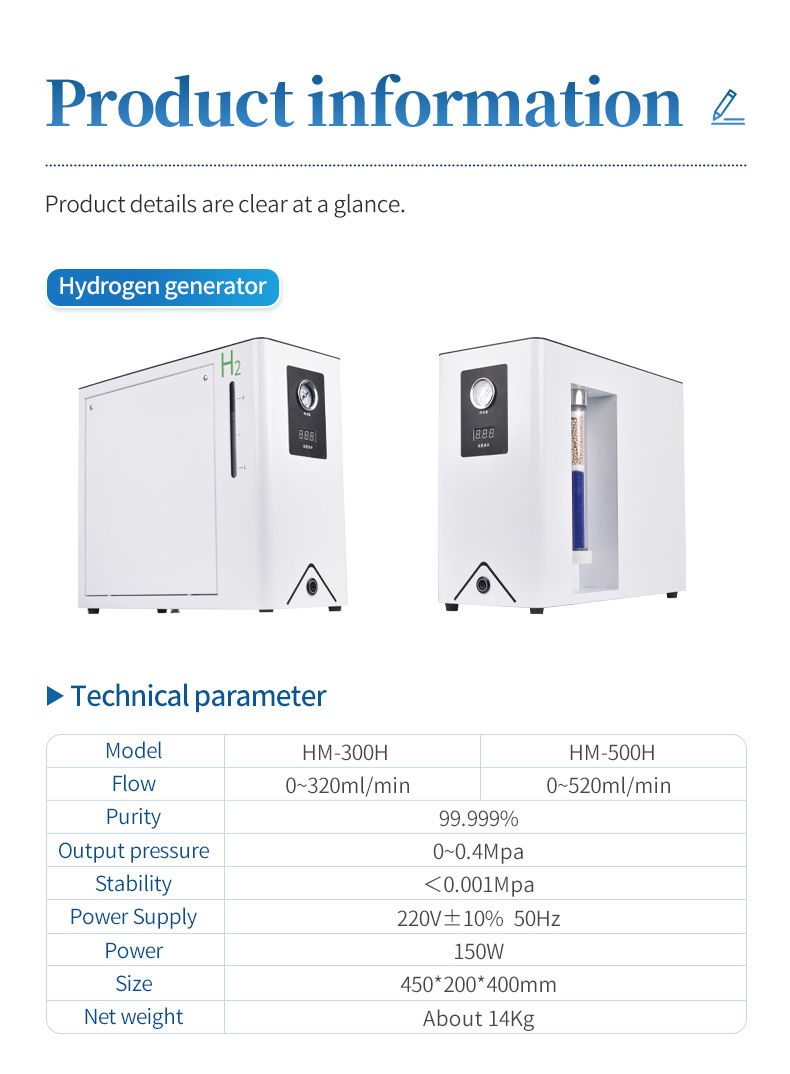

Technical Specifications:

1. Hydrogen purity: 99.999%

2. Hydrogen flow rate: 0-320ml/min

3. Output pressure: 0-0.4Mpa

4. Pressure stability:<0.001Mpa

5. Power supply: 220V ± 10% 50Hz

6. Power consumption: 120W

7. Dimensions: 450 * 200 * 400mm

8. Net weight: approximately 14Kg

• Previous: no more

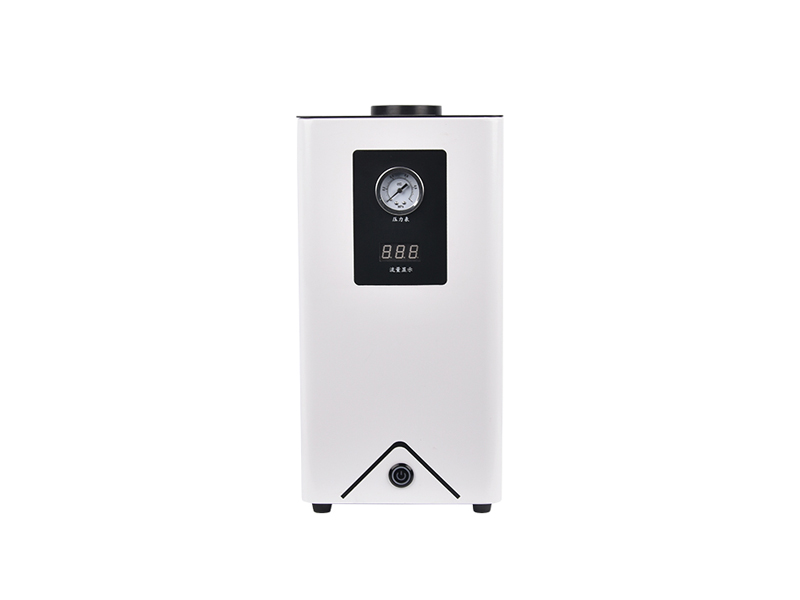

• Next: Hydrogen Generator for Gas Chromatography
