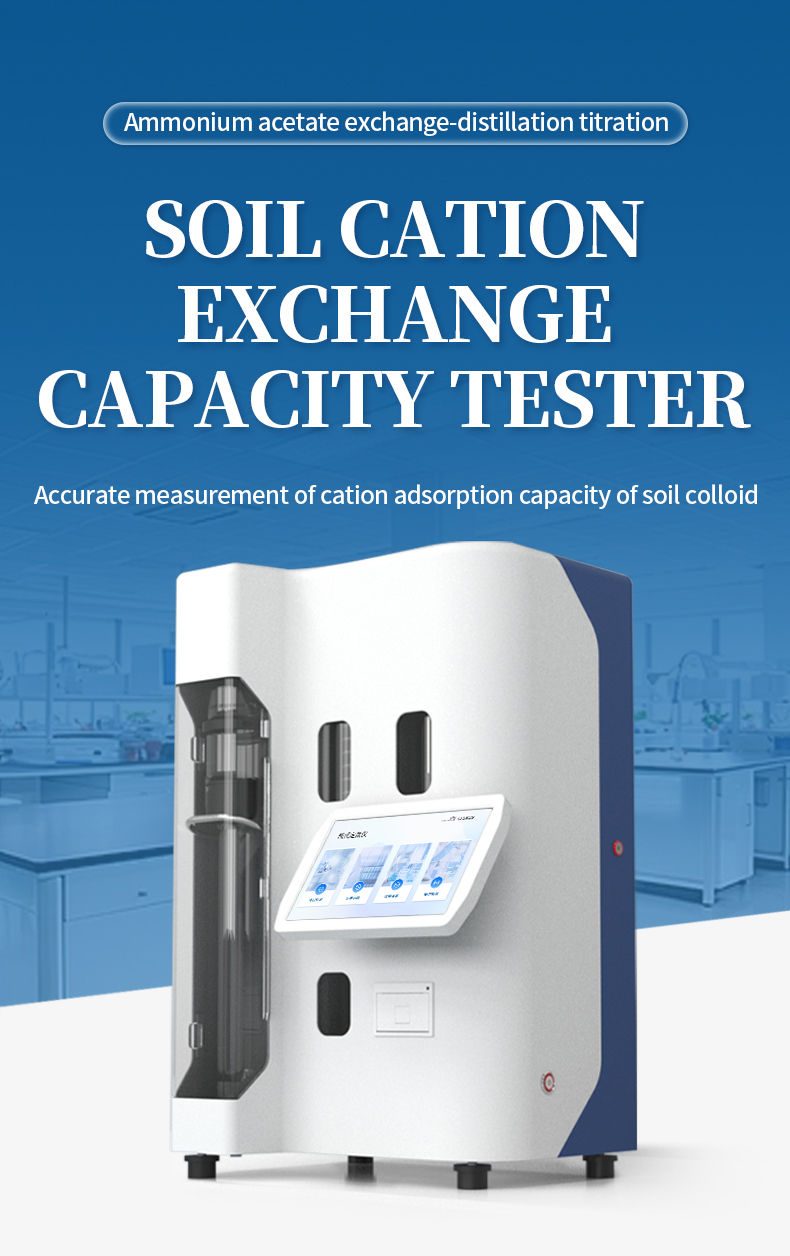

Soil Cation Exchange Capacity Analyzer

Equipment Introduction:

The soil cation exchange capacity meter is a specialized device designed to measure soil cation exchange capacity (CEC), which represents the total amount of various cations that can be adsorbed by soil colloids. It operates based on electrochemical principles, by applying a solution under certain conditions to soil samples and measuring the ability of cations absorbed on the soil particle surface to exchange with cations in the solution.

Equipment Principle:

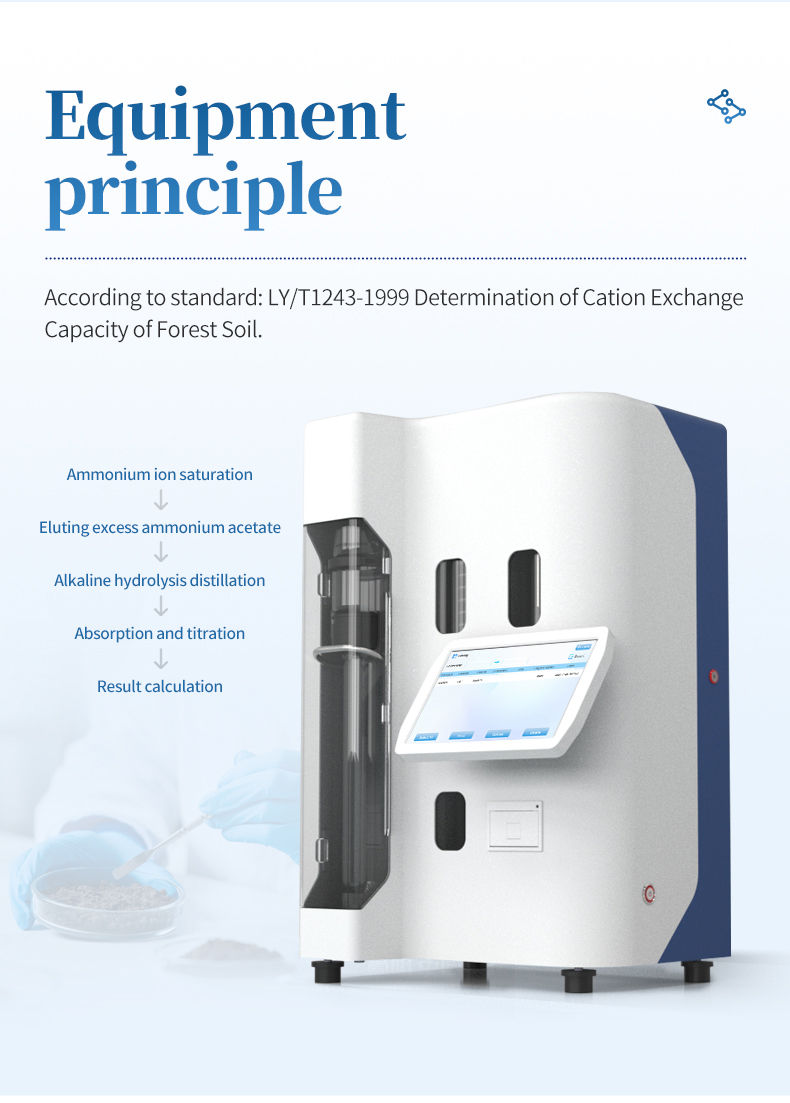

According to "Determination of Cation Exchange Capacity of Forest Soils" (LYT 1243-1999), the soil is repeatedly treated with a 1 mol/L ammonium acetate solution to make it ammonium ion-saturated. The excess ammonium acetate is washed away with 95% ethanol, and then magnesium oxide is added. Distillation is carried out using the nitrogen determination distillation method. The ammonia distilled is absorbed by a boric acid solution and titrated with a standard acid solution. The cation exchange capacity of the soil is calculated based on the amount of ammonium ions.

Advantages and Features:

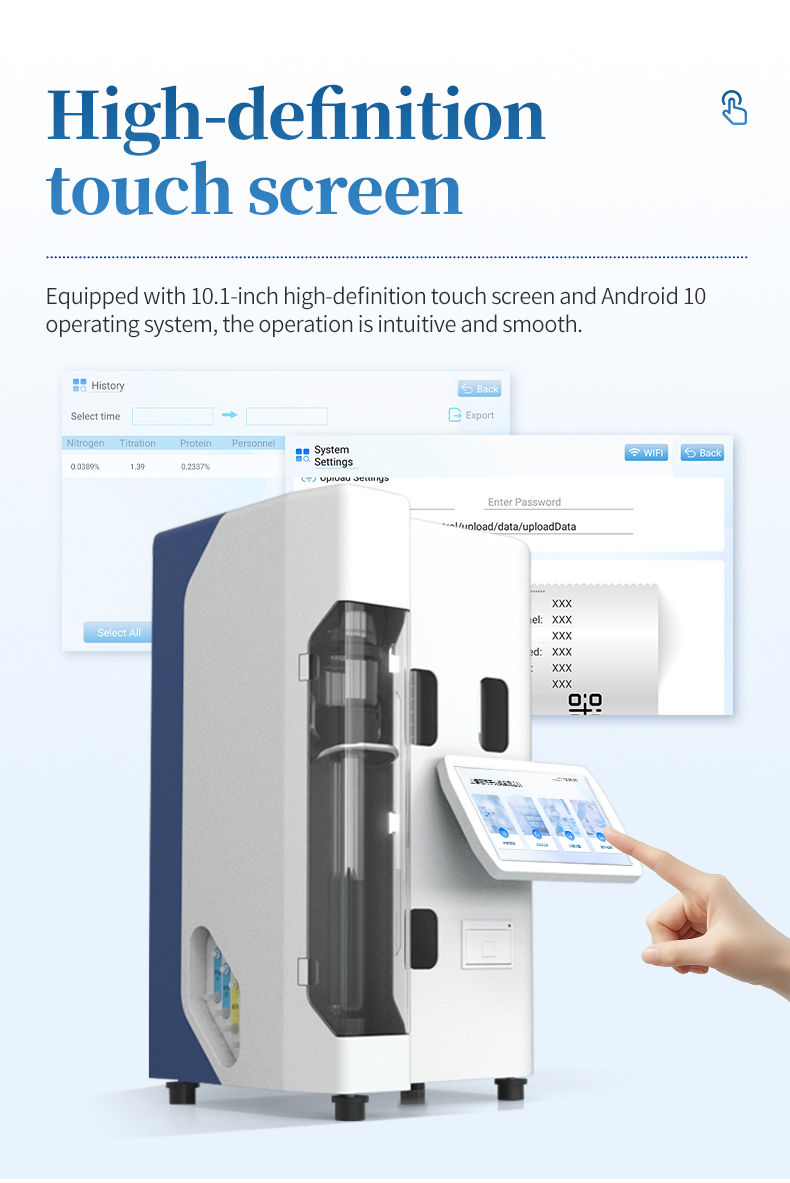

1. 7-inch touch screen, Android 10 operating system.

2. Equipped with WiFi networking capabilities, test results can be directly uploaded to the monitoring platform.

3. High-capacity 16G storage capacity, capable of storing up to 5 million detection results.

4. The test results are in Excel format and can be directly copied to a USB flash drive. The test results can be printed and uploaded in bulk.

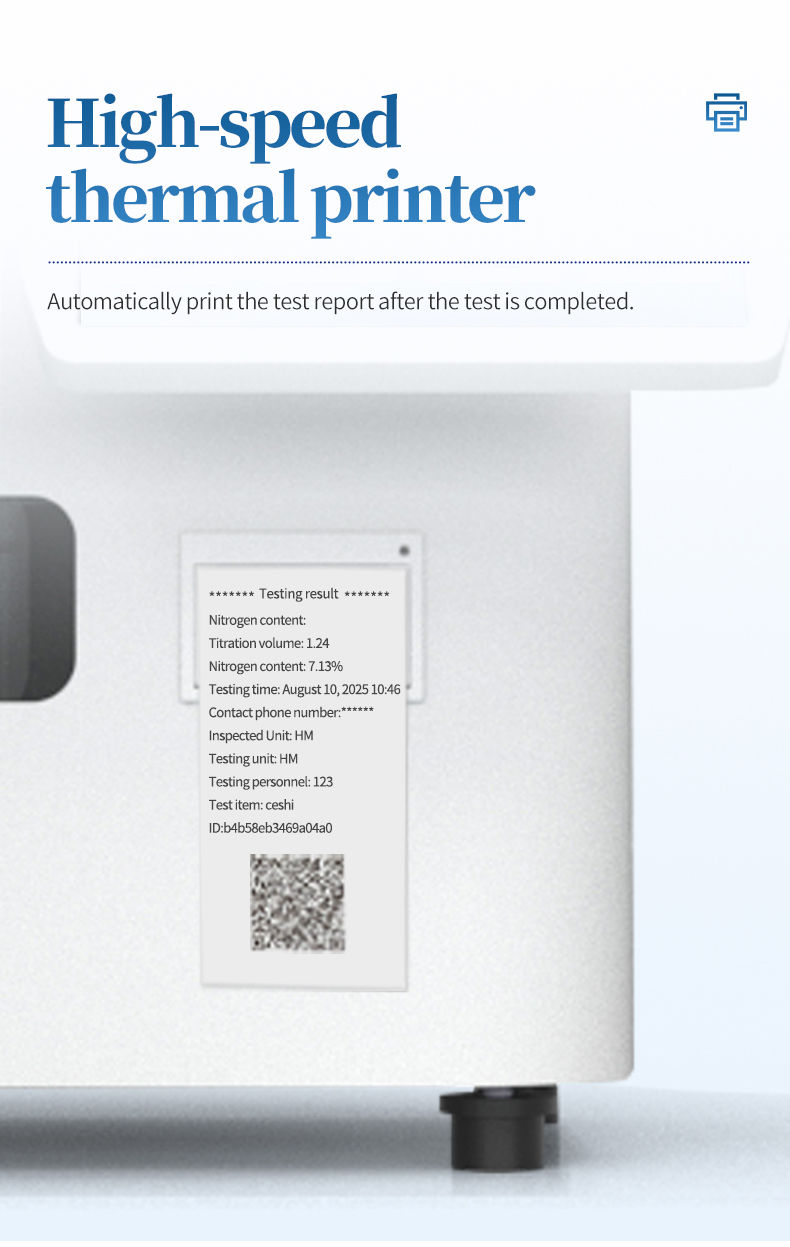

5. High-speed thermal printer, automatically printing the test report upon completion of testing.

6. The program controls the opening and closing of condensed water to conserve water usage.

7. Monitor the flow rate of the condensed water and trigger an alarm in case of low flow rate.

8. Multiple protections for evaporator water level, temperature, pressure, etc.

9. Adopt components with strong corrosion resistance.

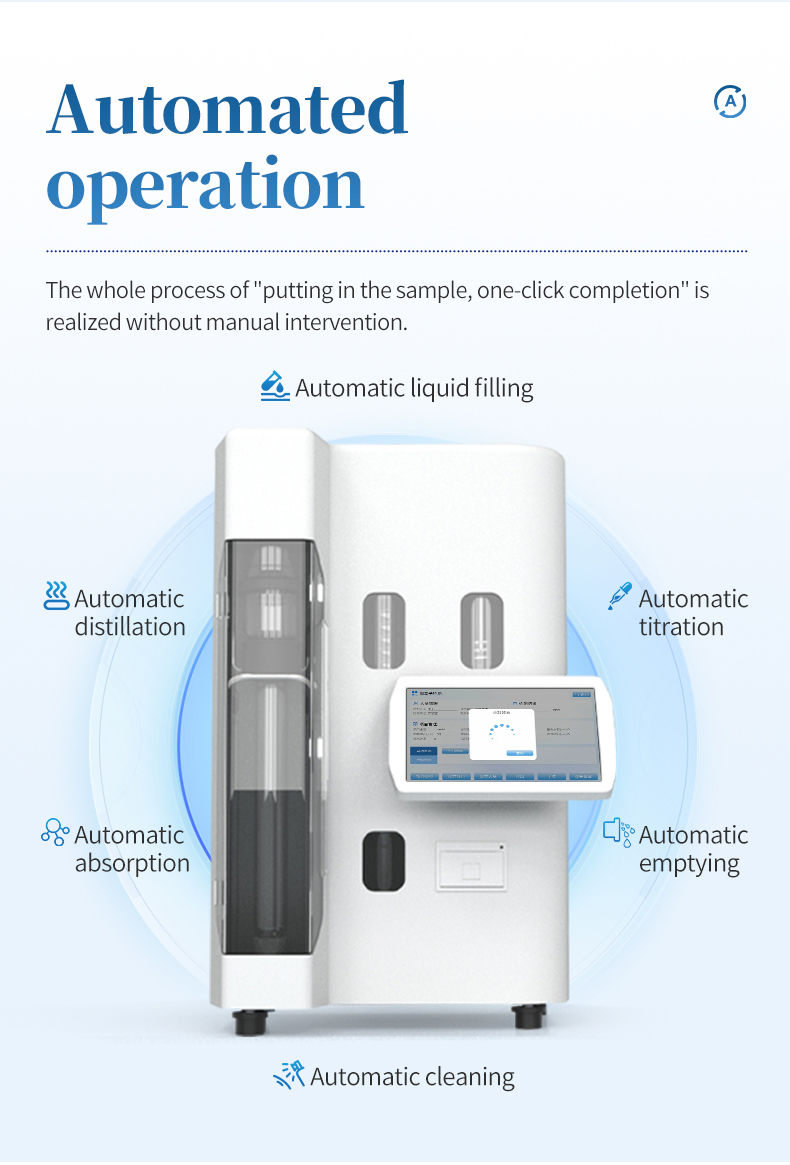

10. Automatic waste removal and cleaning.

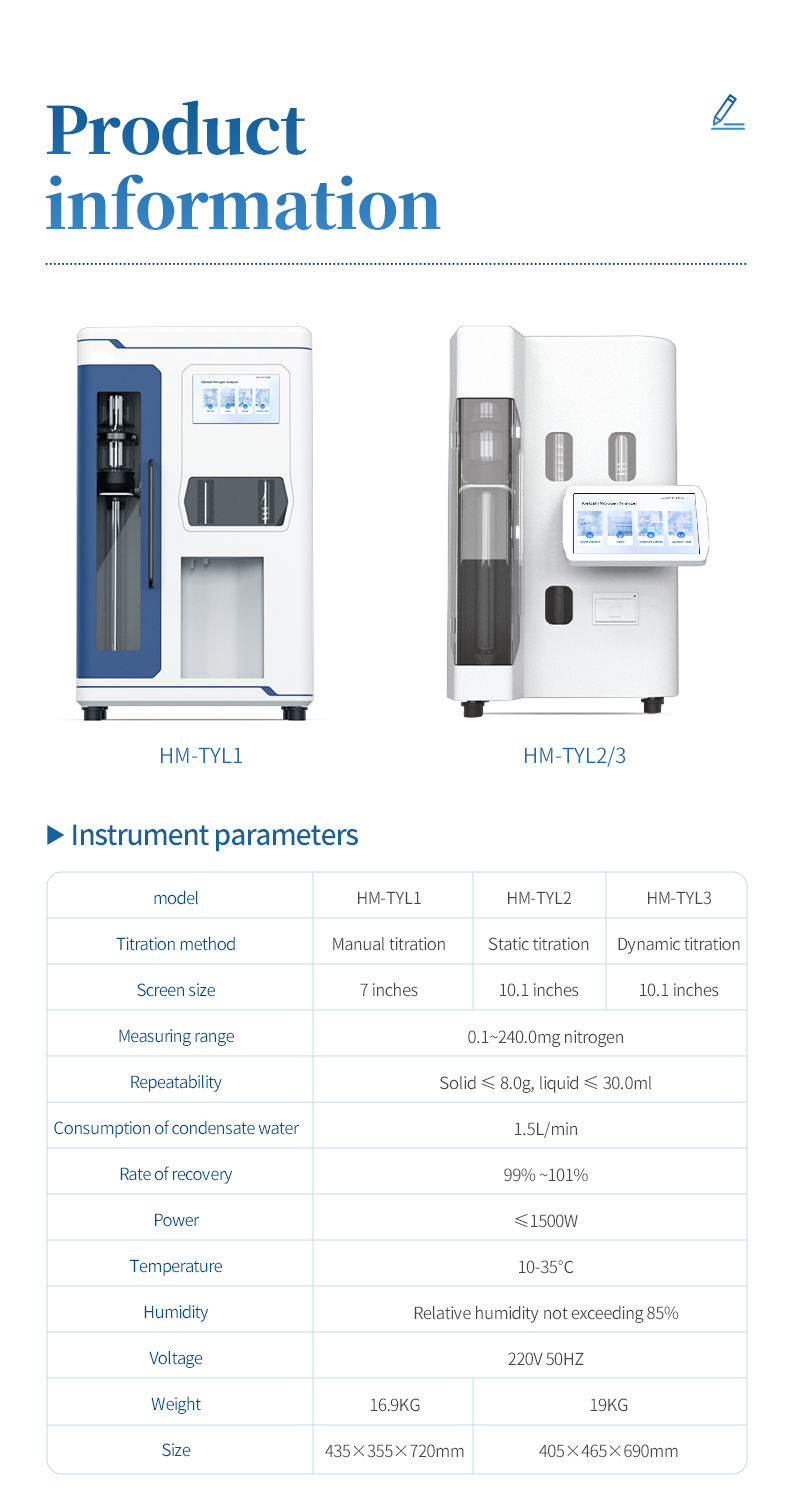

Instrument Parameters:

(1) Measurement range: 0.1~240.0mg nitrogen

(2) Sample weight: solids ≤ 8.0g, liquids ≤ 30.0ml

(3) Condensate water consumption: 1.5L/min

(4) Recovery rate: 99% ~101%

(5) Power: ≤1500W

(6) Temperature: 10-35℃

(7) Humidity: Relative humidity not exceeding 85%

(8) Voltage: 220V 50HZ

(9) Bare machine weight: 16.9kg

(10) Overall dimensions: 435mm × 355mm × 720mm (length × width × height)

(11) Instrument packaging and weight: 420*500*750mm, 23.5kg

(12) Accessory packaging and weight: 510*390*375mm, 3.75kg
