Automatic Headspace Sampler

Introduction:

The automatic headspace sampler is a headspace sampling device with a six way valve quantitative loop pressure balance injection and multiple sample bottle capacities. It has unique technical characteristics such as good universality, simple operation, and good reproducibility of analysis results. With a durable structure and simplified design, it is almost suitable for continuous operation in any environment.

Product Features:

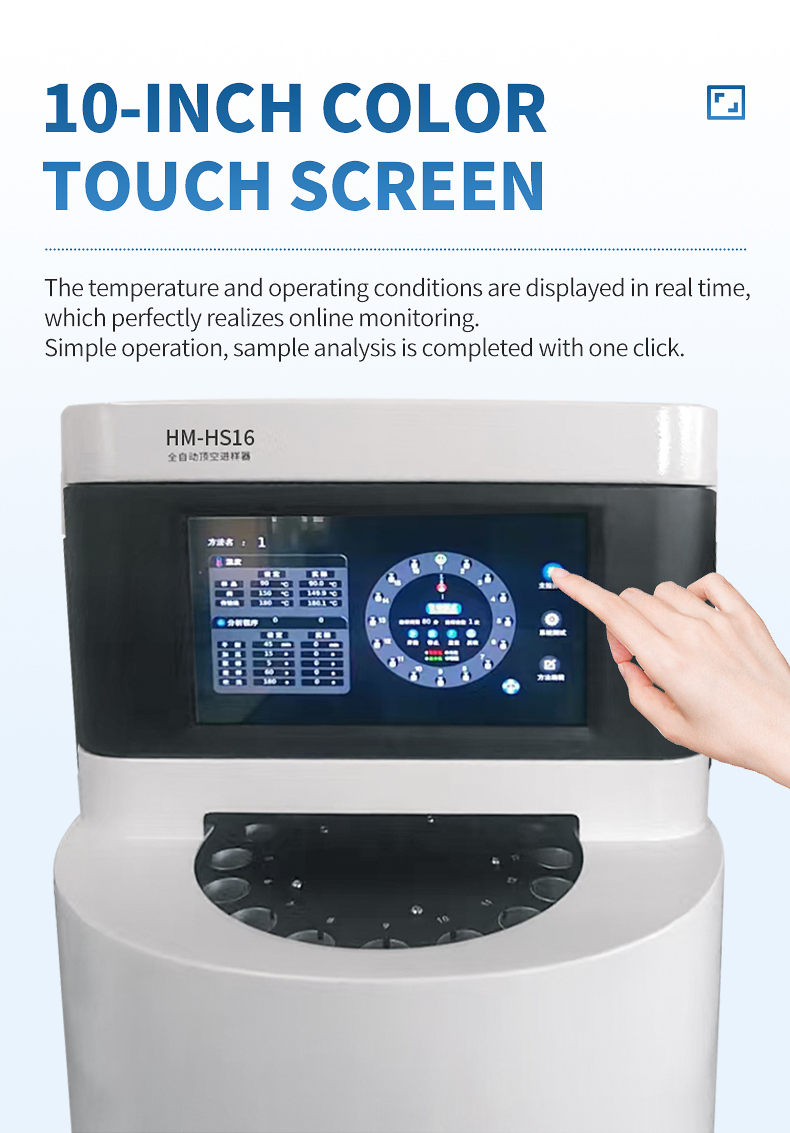

1. 10 inch color touch screen, real-time display of various temperatures and operating conditions, perfect for online monitoring

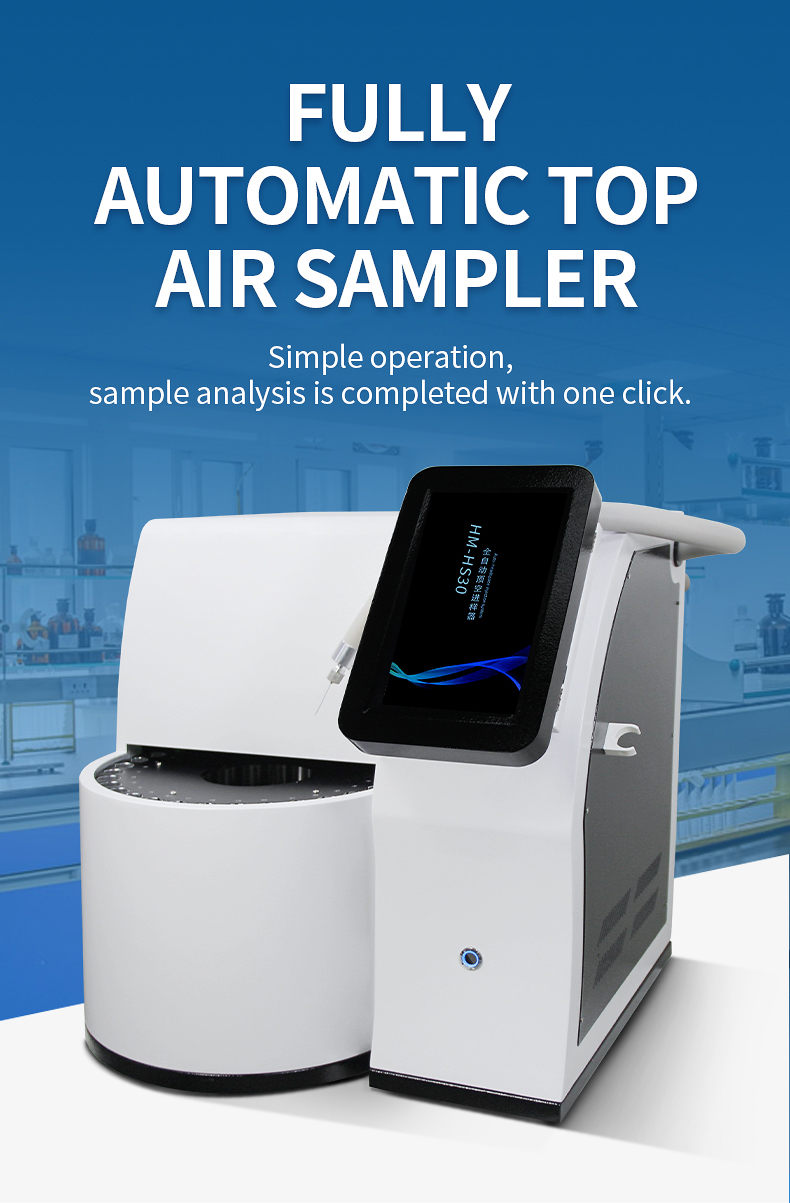

2. Easy to operate, one click completion of sample analysis

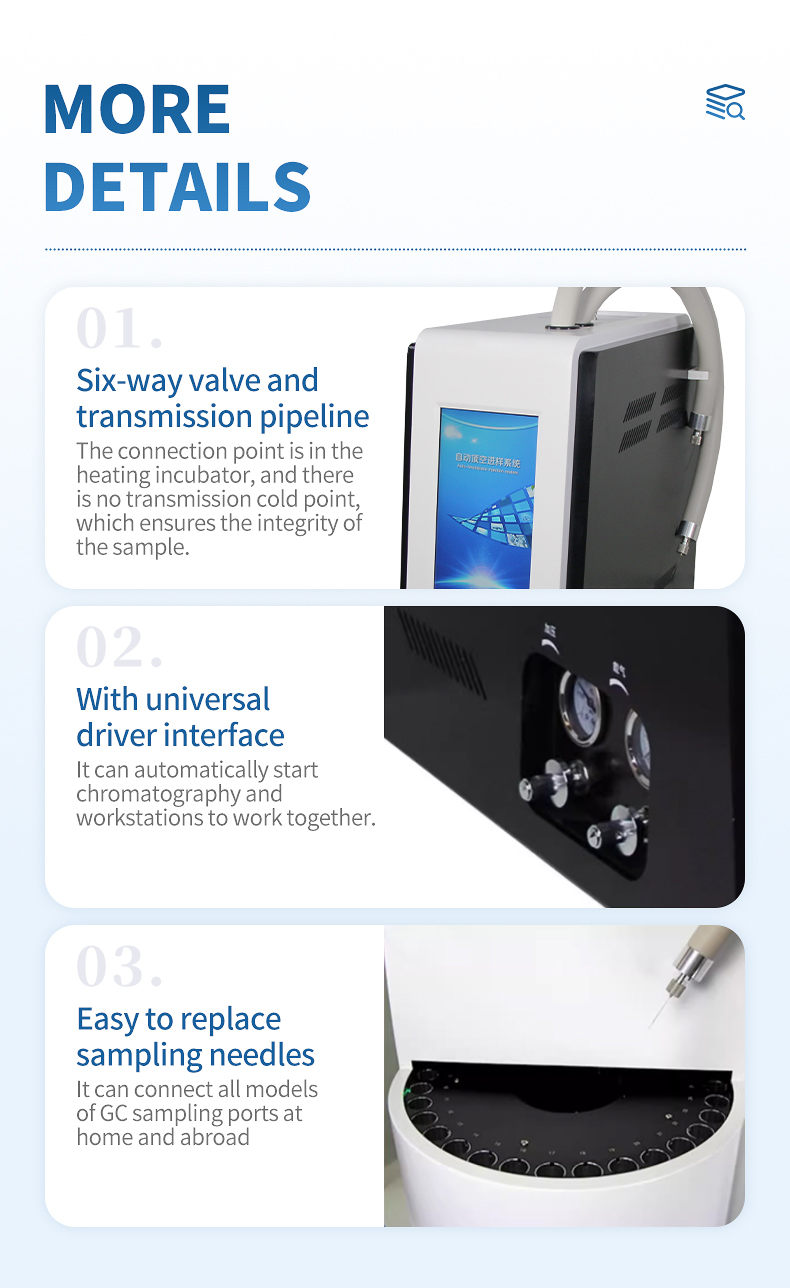

3. The connection point between the six way valve and the transmission pipeline is located inside the heating insulation box, without any transmission cold points, ensuring the integrity of the sample

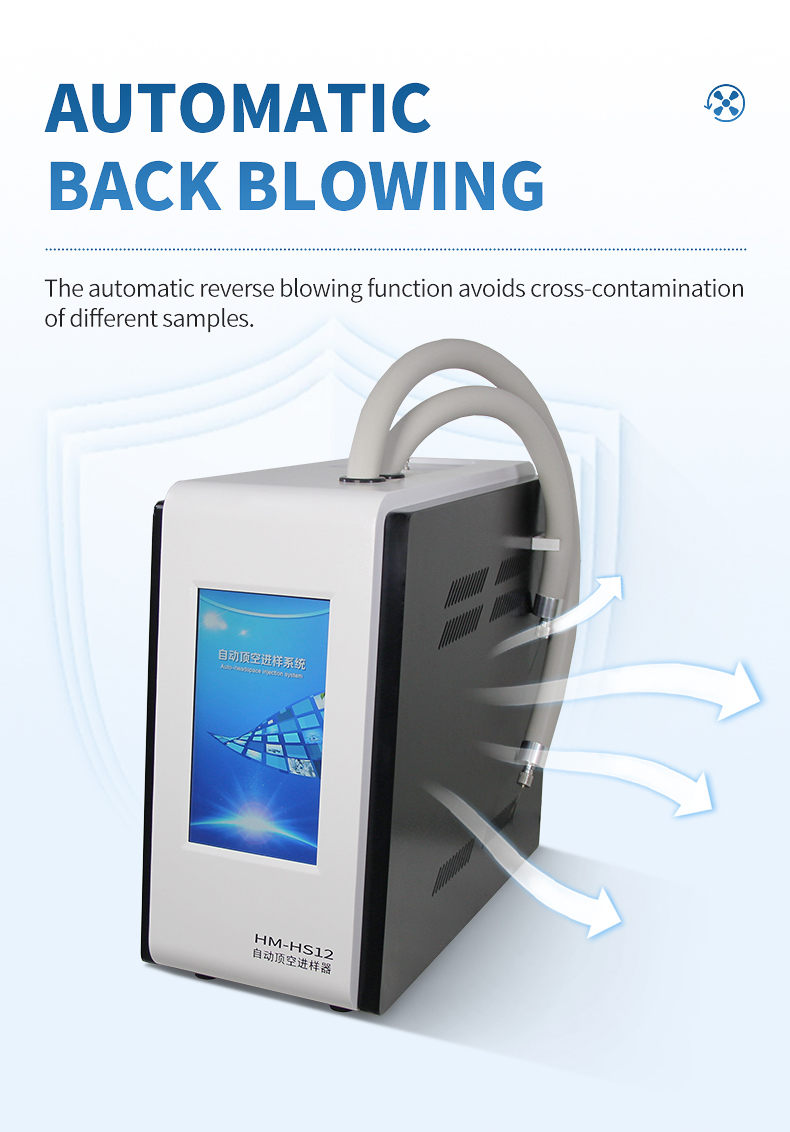

4. Automatic blowback function, avoiding cross contamination of different samples

5. Equipped with a universal driver interface, it can automatically start the collaborative work of chromatography and workstation

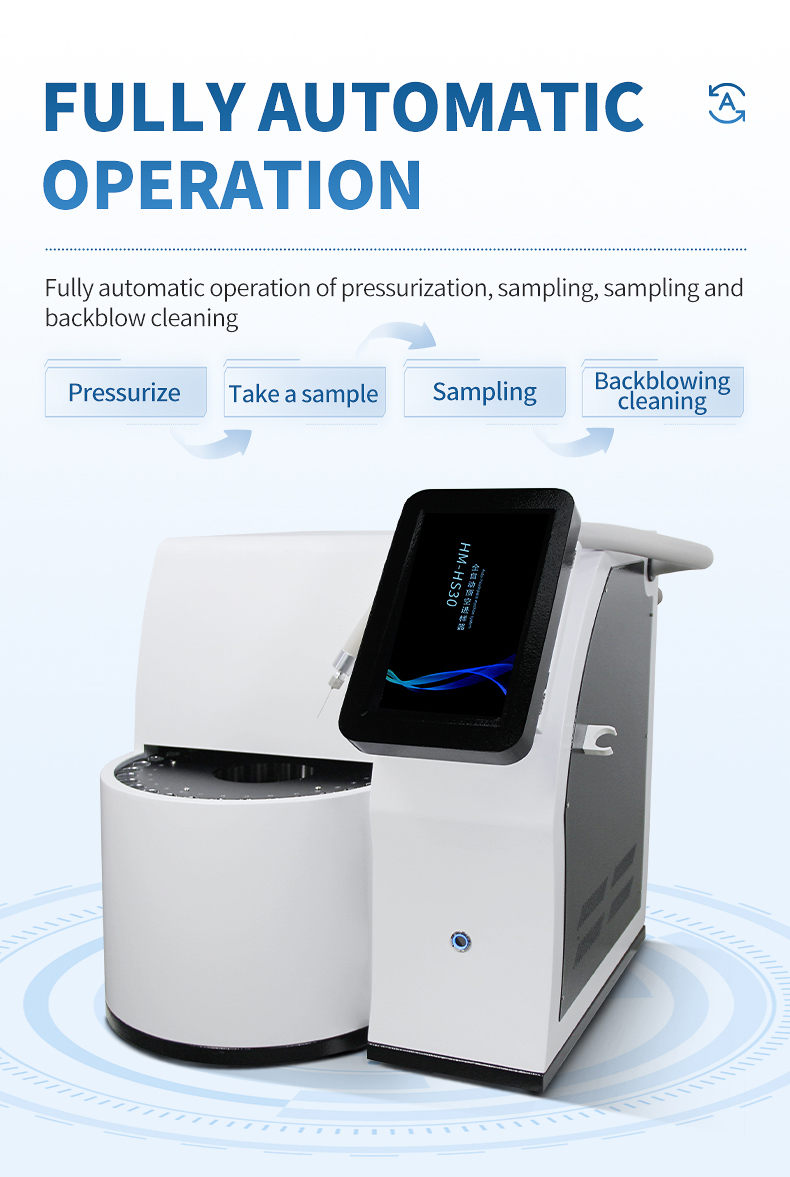

6. Fully automatic operation of pressurization, sampling, injection, and blowback cleaning

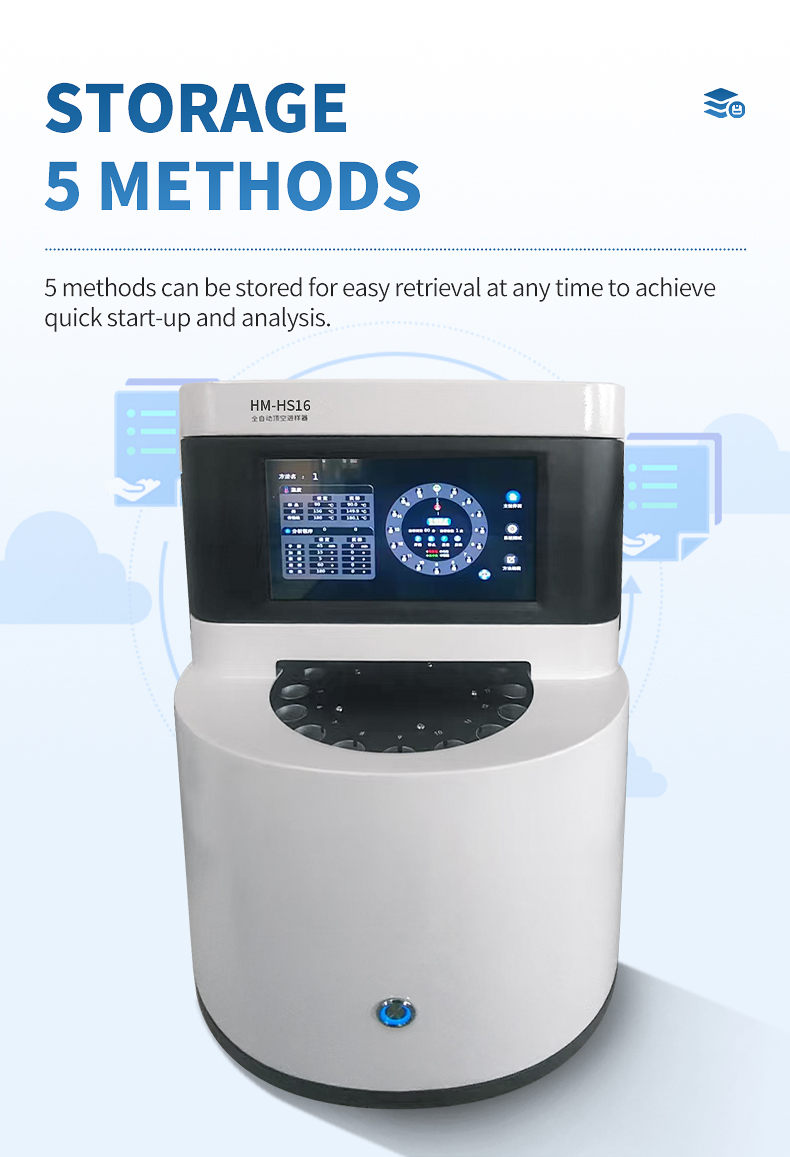

7. Can store 5 methods for easy calling at any time, achieving fast startup and analysis

8. High temperature resistant six way valve, small dead volume, maximum operating temperature up to 200 ℃

9. The GC and chromatographic data processing workstations can be started synchronously, and the device can also be started using external programs

10. The injection needle is easy to replace and can be connected to all models of GC injection ports at home and abroad

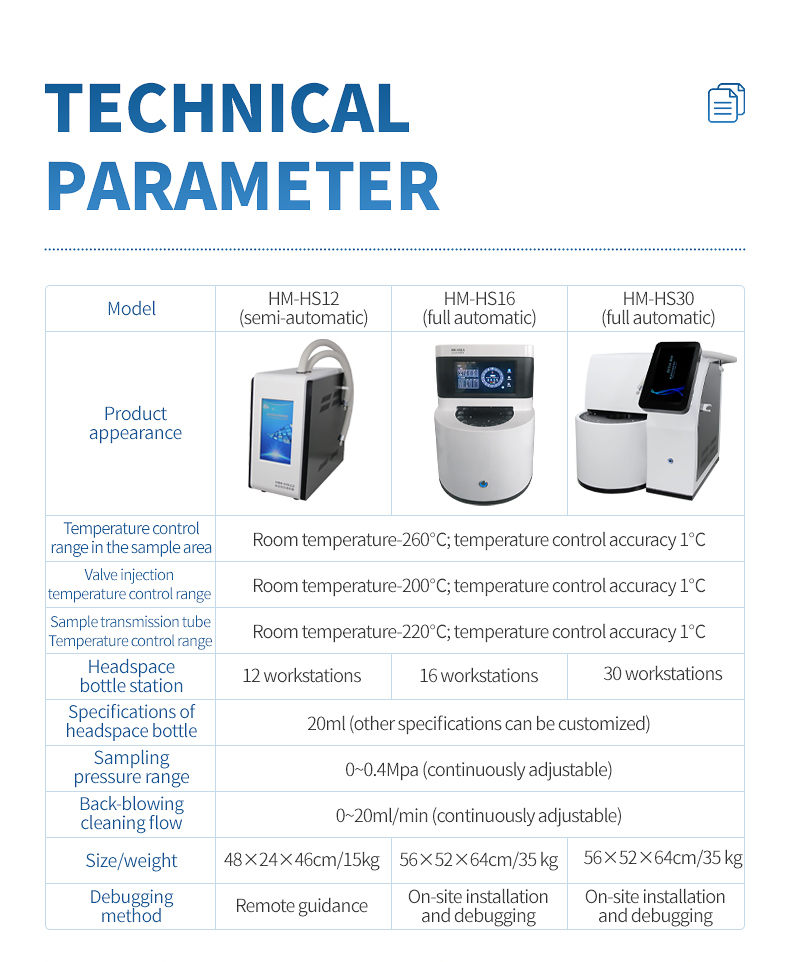

Technical Indicators:

Sample area temperature control range: room temperature -220 ℃, temperature control accuracy 1 ℃

Valve injection temperature control range: room temperature -200 ℃, temperature control accuracy 1 ℃

Sample transfer tube temperature control range: room temperature -220 ℃, temperature control accuracy 1 ℃

Headspace bottle workstation: 30 people

Headspace bottle specification: 20ml (other specifications can be customized)

Injection pressure range: 0-0.4Mpa (continuously adjustable)

Backblowing cleaning flow rate: 0-20ml/min (continuously adjustable)

Dimensions/Weight: 560 × 520 × 640mm/35 kg
