Portable Digester

Product Overview

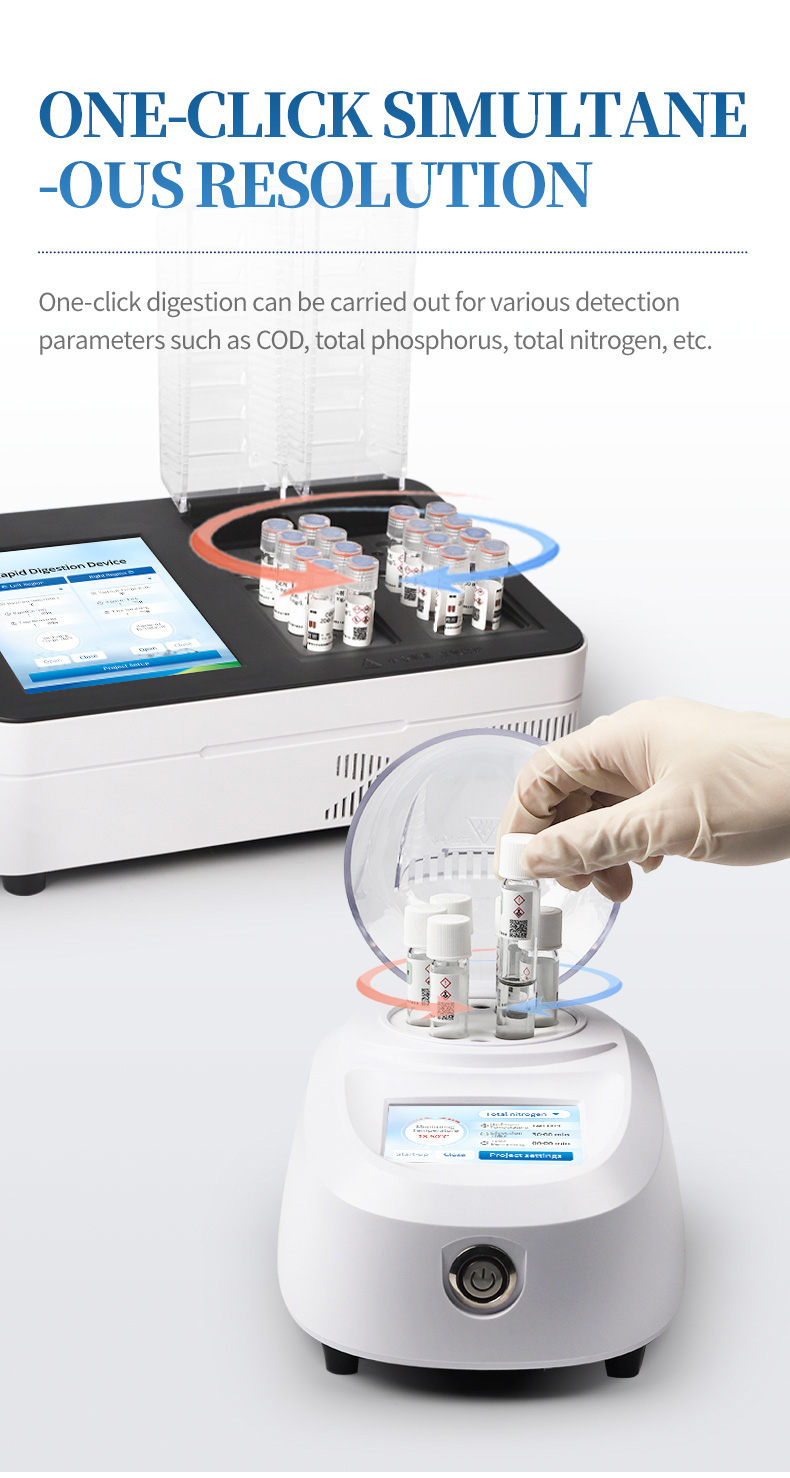

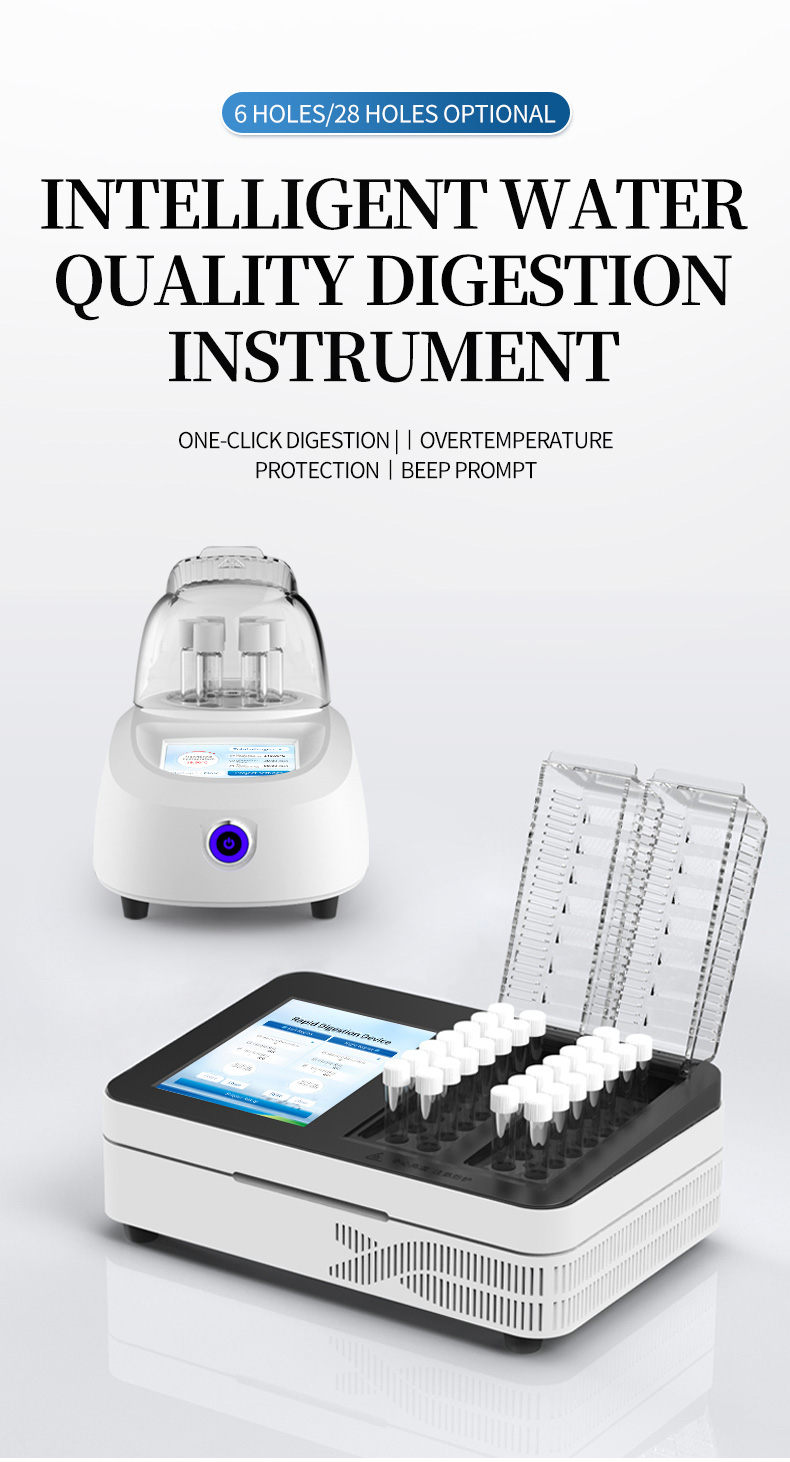

The portable intelligent digestion instrument is a new multi-functional rapid digestion instrument developed according to the environmental protection industry standard HJ/T399-2007. It is equipped with a 3.5-inch capacitive touch screen operation, intelligent and safe, fast heating speed, uniform and stable temperature, and can perform one click digestion on various detection parameters such as COD, total phosphorus, total nitrogen, etc.

Application field

The portable intelligent digestion instrument can be widely used for water quality testing in research institutes, sewage engineering, water environment detection, petrochemicals, metallurgy and steel, biomedicine, food and dairy industry, wool textile printing and dyeing, electronic machinery, aquaculture, photovoltaics, leather, papermaking and other fields.

Features

1. 3.5-inch color LCD touch screen, displaying clear and intuitive content;

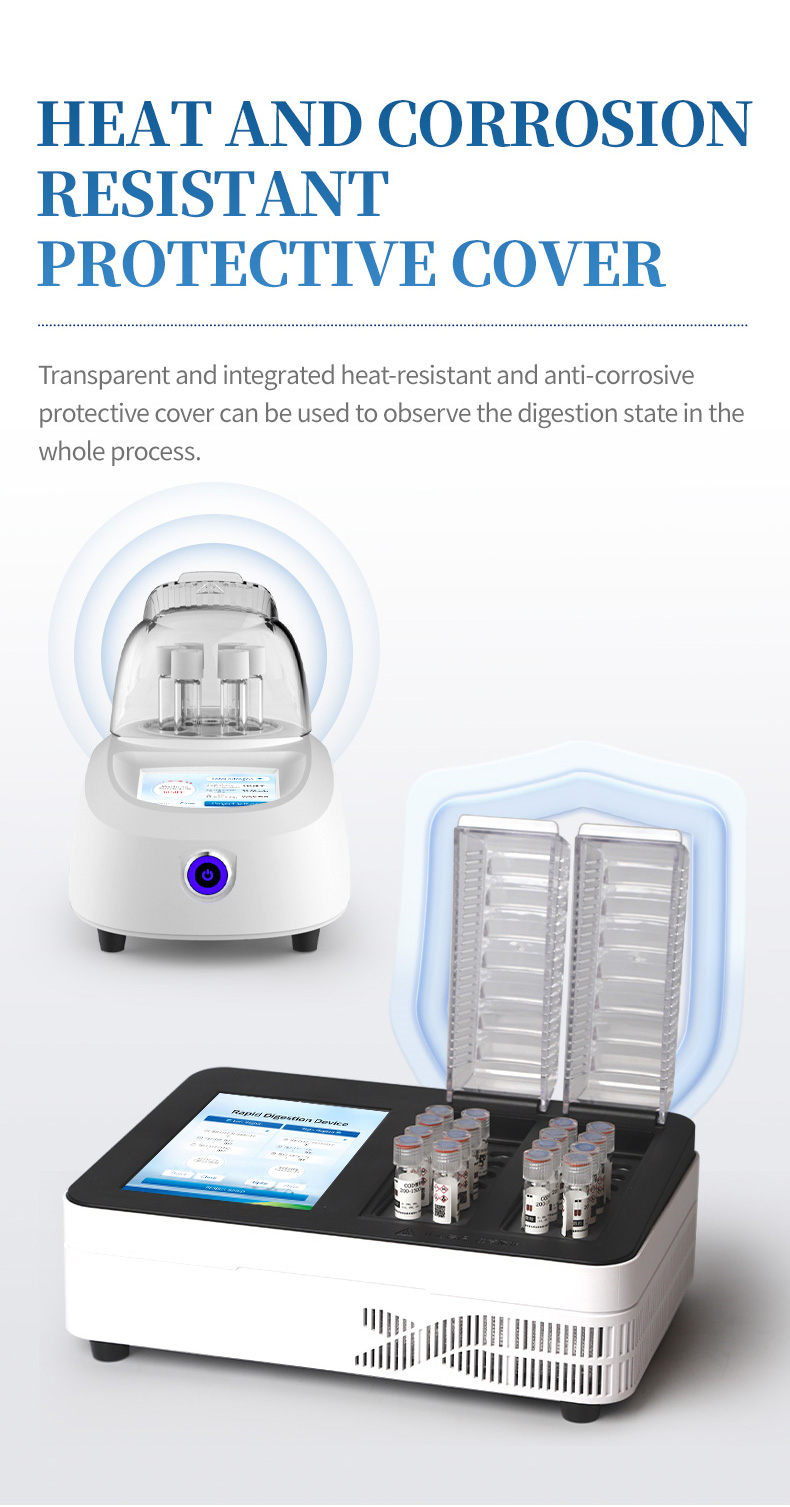

2. A transparent and ventilated protective cover that prevents the splashing of digestion solution, providing a clear understanding of the digestion state and ensuring safety and reliability;

3. It has functions such as constant temperature heating, over temperature protection, automatic timing, and buzzer notification;

4. Pre stored 4 types of digestion programs, one click digestion, no need for modification, can be used directly;

5. Automatically start timing when the temperature rises to the set digestion temperature;

6. Customizable digestion time and temperature;

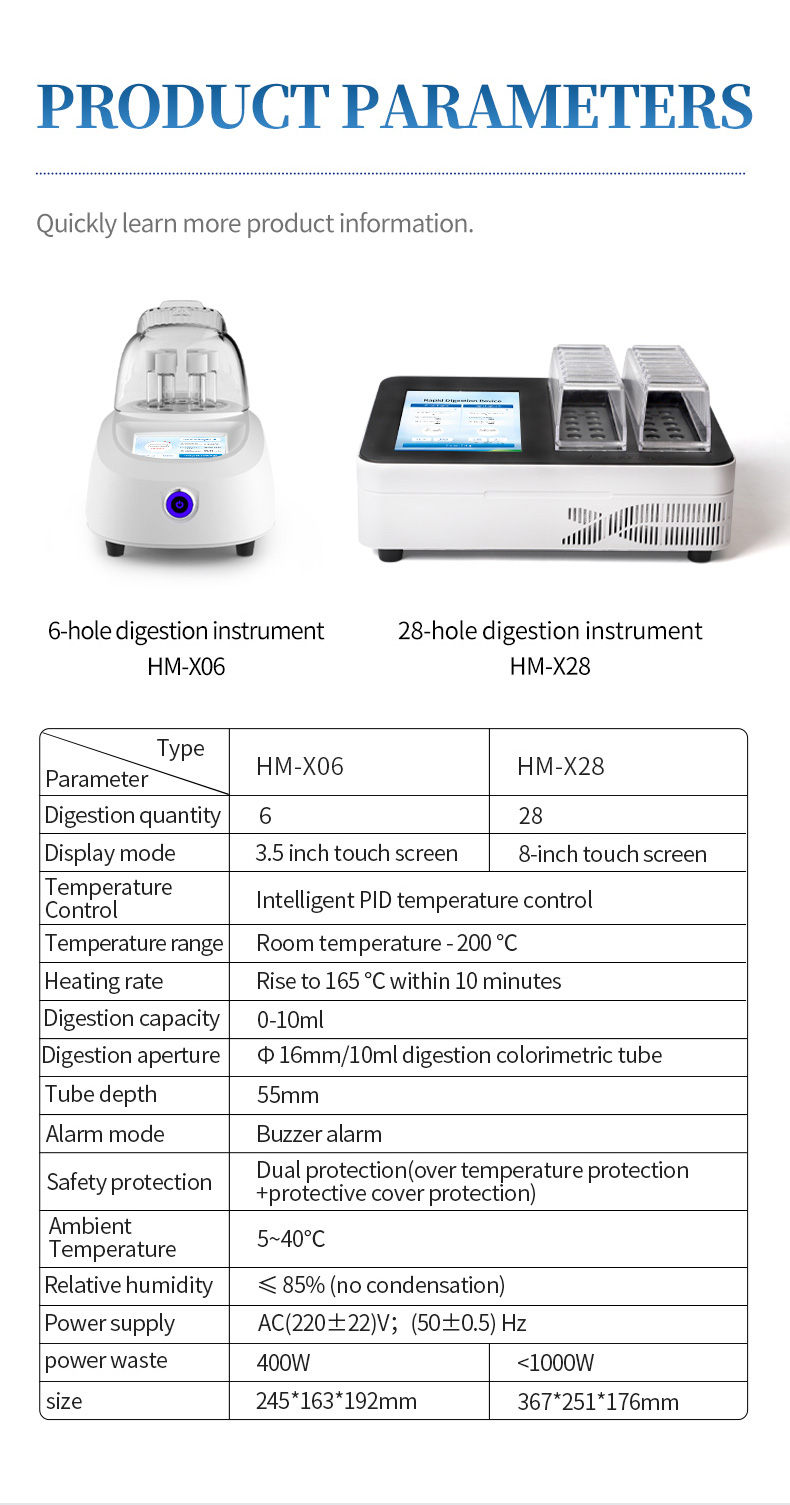

Technical indicators

Dissolve quantity: 6 pieces;

Heating speed: rise to 165 ℃ within 10 minutes;

Dissolving capacity: 0-10ml;

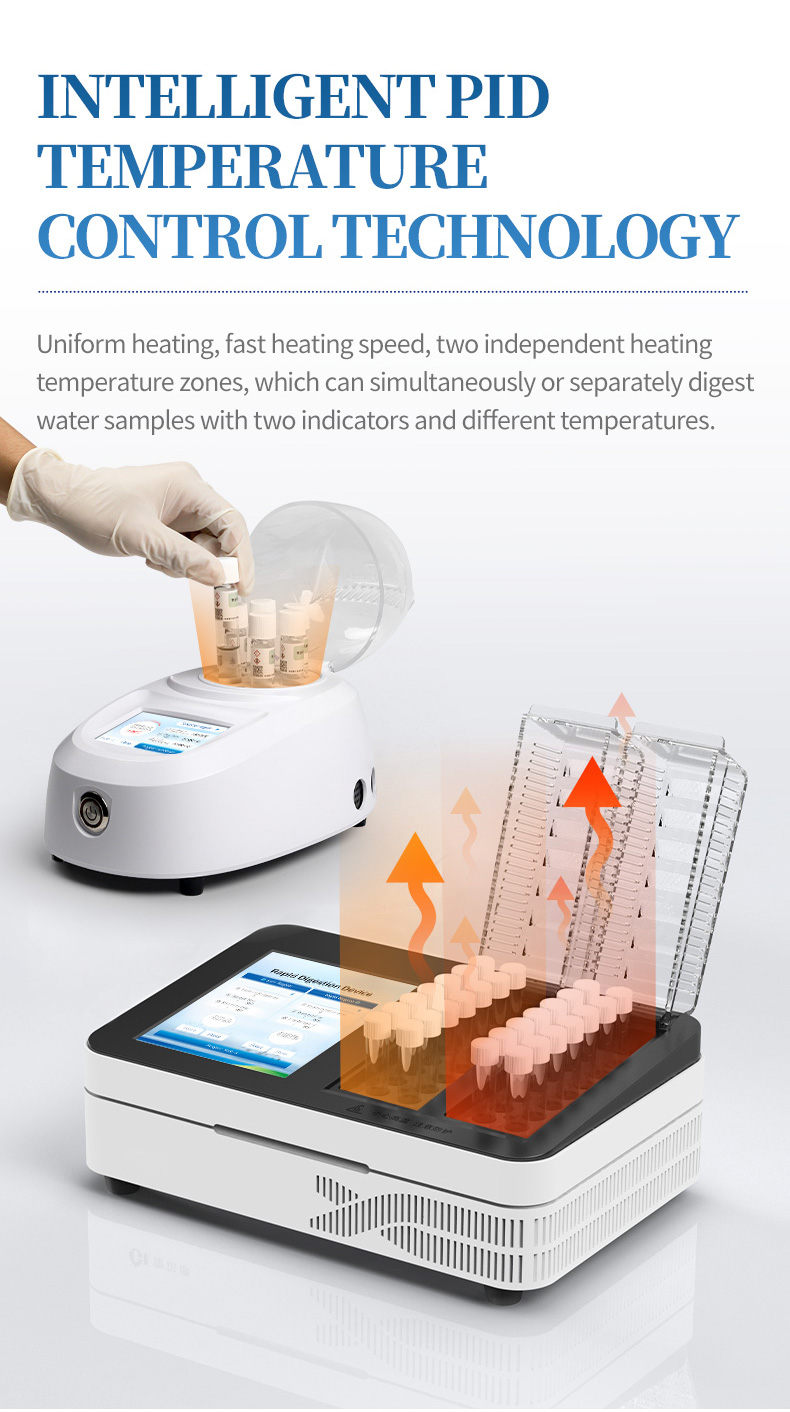

Temperature control mode: intelligent PID temperature control;

Temperature control accuracy: ± 1 ℃;

Dissolving temperature: room temperature -200 ℃;

Time setting: 0-200 minutes;

Dissolution aperture: Φ 16mm/10ml dissolution colorimetric tube;

Test tube depth: 55mm;

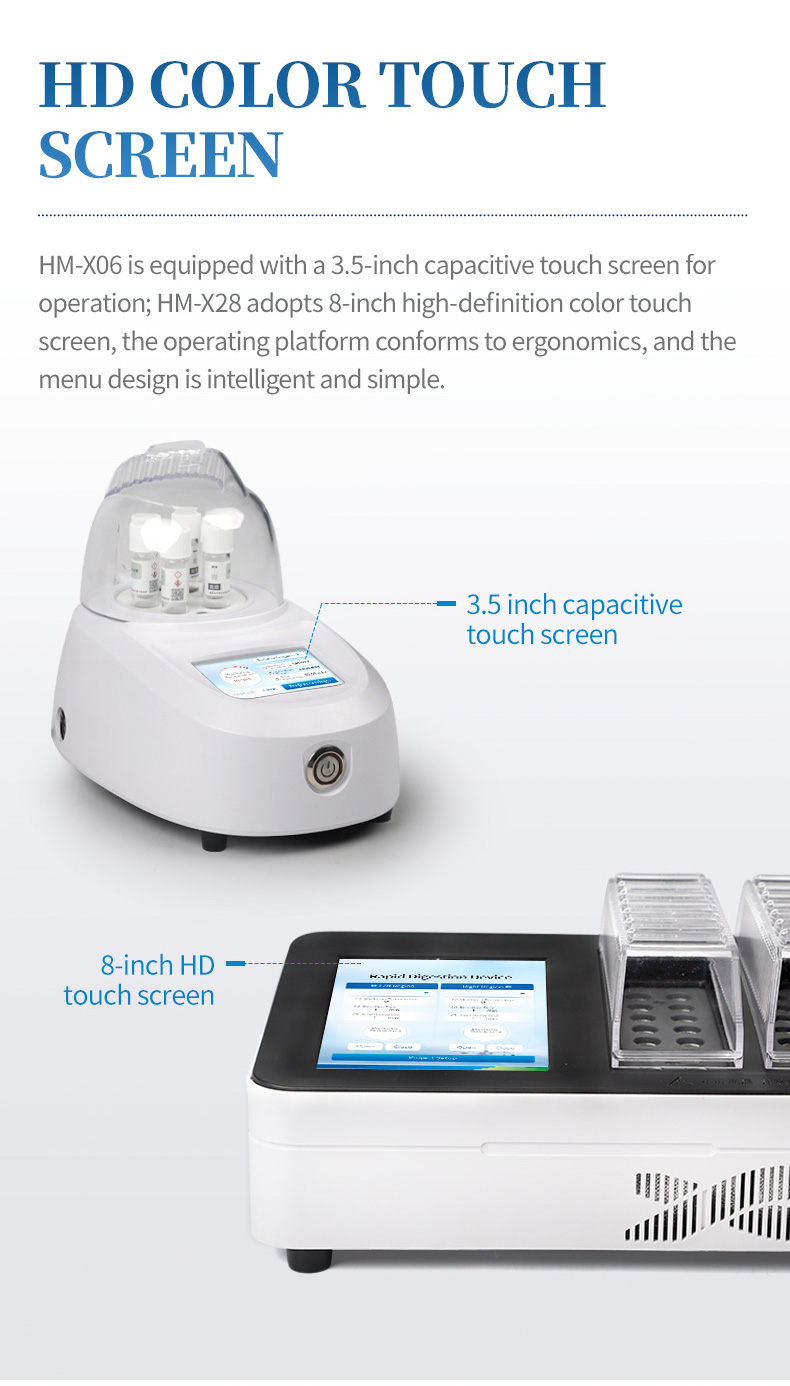

Screen display: 3.5-inch color capacitive touch screen;

Instrument power consumption: 400W;

Pre set digestion mode: COD, total phosphorus, total nitrogen, other;

Featured features: One click resolution, over temperature protection, buzzer prompt, custom settings, countdown function;

Dimensions: 245X163X192mm (length x width x height);

Instrument weight:<2.5kg;

Device language: Chinese/English;

Environmental temperature: 5-40 ℃;

Relative humidity: ≤ 85% (no condensation);

Power supply: AC (220 ± 22) V; (50 ± 0.5) Hz;
