Automatic Headspace Sampler

Performance characteristics:

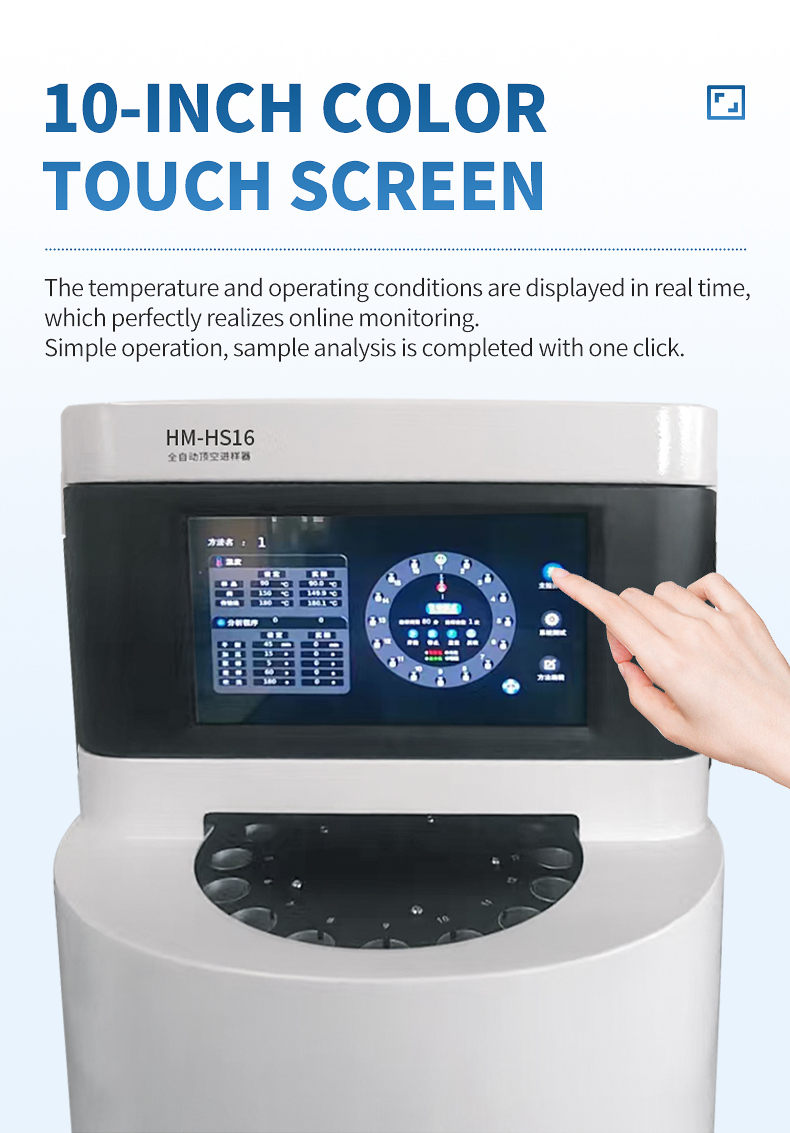

10 inch color touch screen, real-time display of various temperatures and operating conditions, perfect for online monitoring

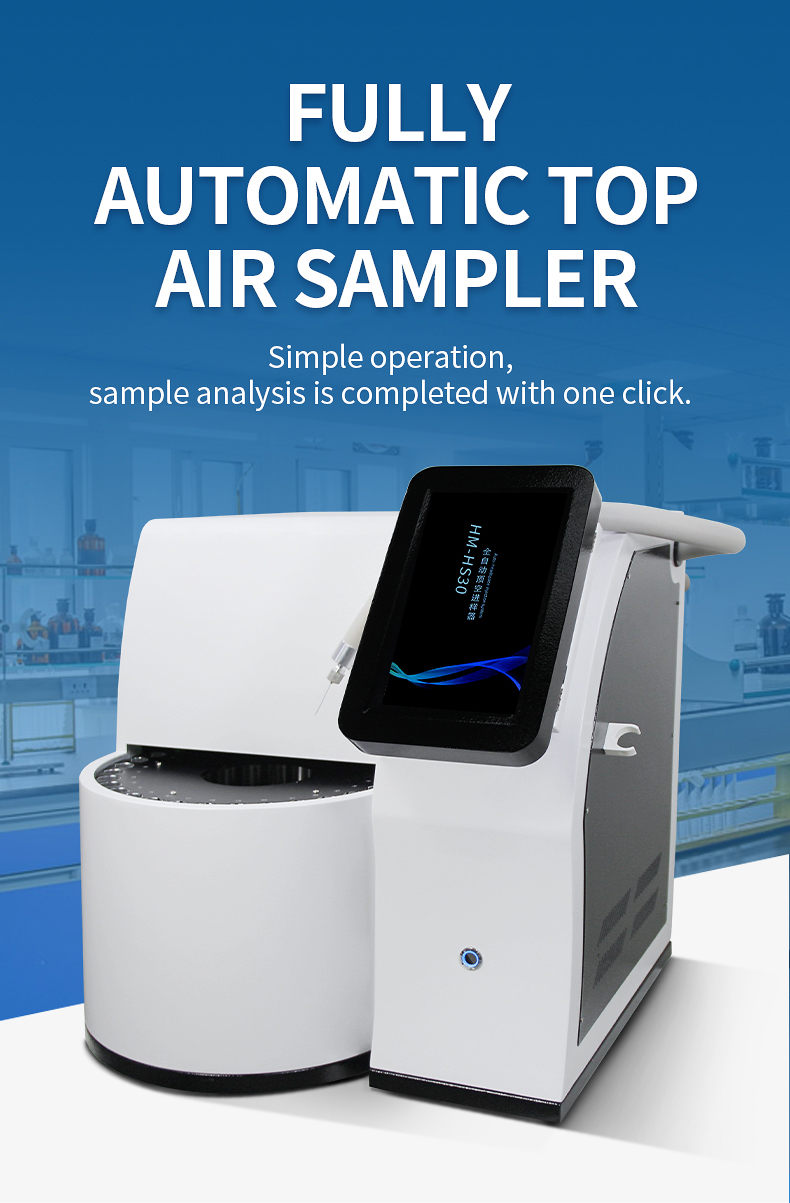

Easy to operate, one click completion of sample analysis

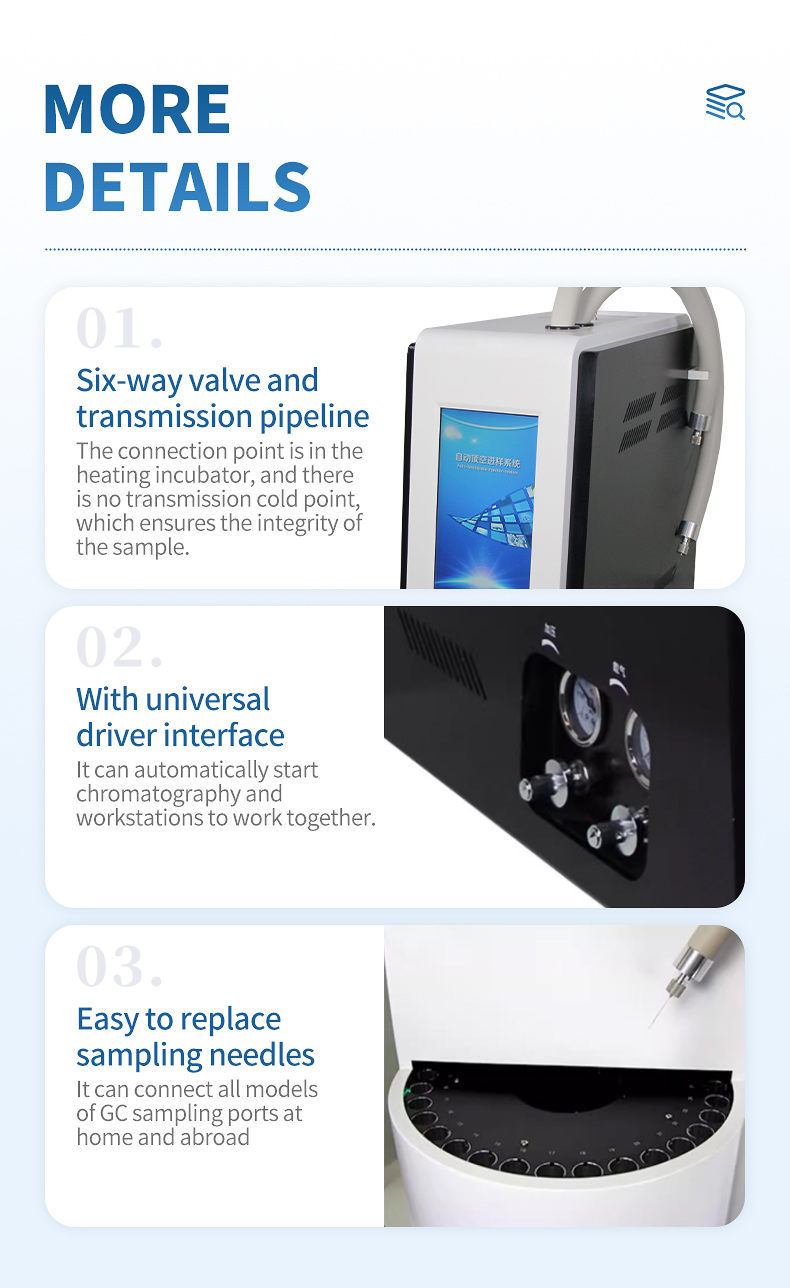

At the connection point between the six way valve and the transmission pipeline, there is no transmission cold point inside the dry heating insulation box, ensuring the integrity of the sample

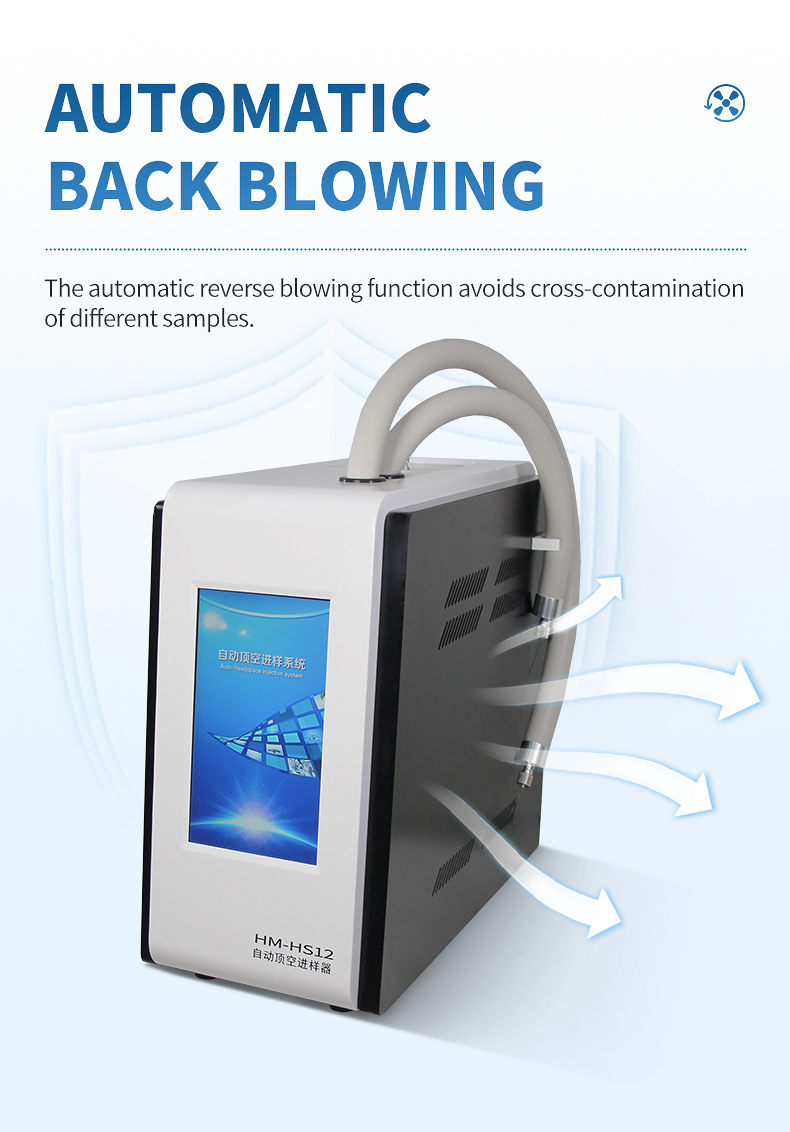

Automatic blowback function, avoiding cross contamination of different samples

Equipped with a universal driver interface, it can automatically start the collaborative work of chromatography and workstation

■ Fully automatic operation of pressurized sampling, injection, and blowback cleaning

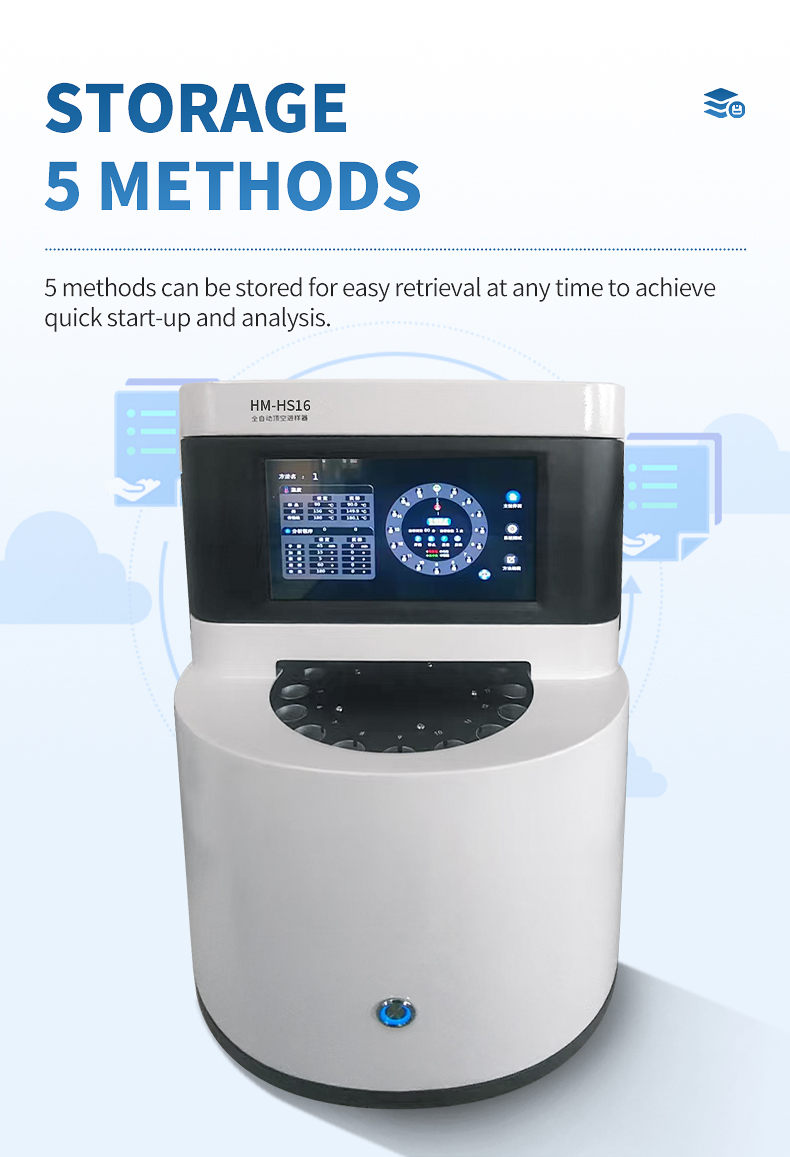

■ Can store 5 methods for easy access at any time, achieving fast startup and analysis

■ High temperature resistant six way valve, small dead volume, with a maximum operating temperature of up to 200

■ The GC chromatography data processing workstation can be started synchronously, and the device can also be started by external programs.

■ The injection needle is easy to replace and can be connected to all models of GC injection ports at home and abroad

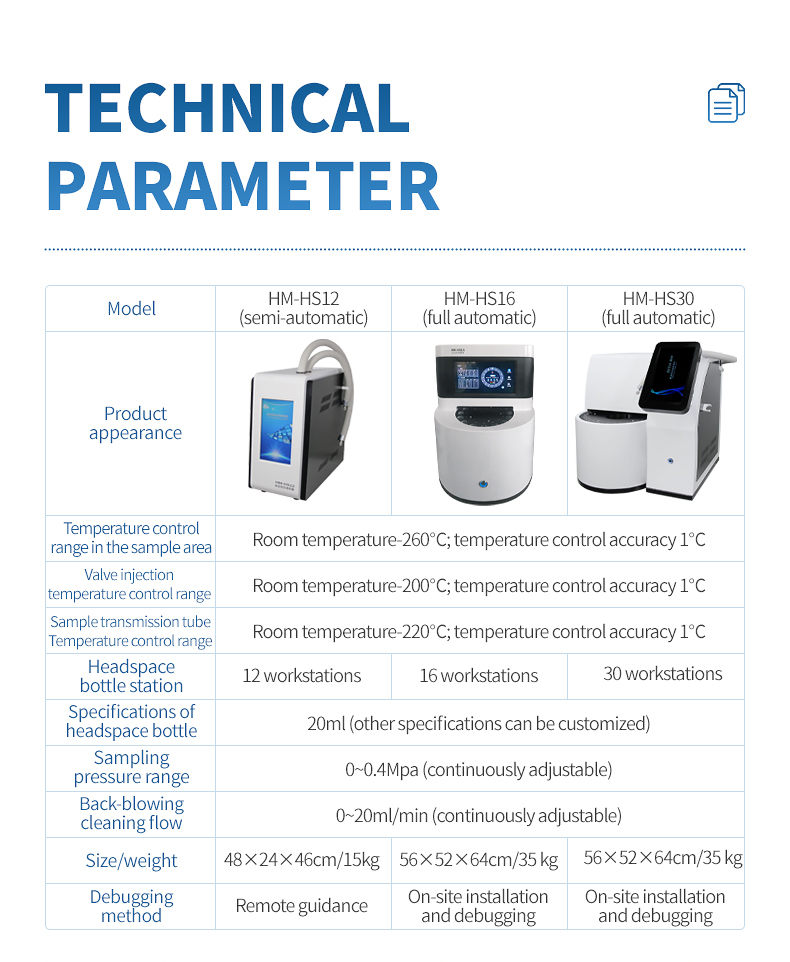

Technical indicators:

■ Sample area temperature control range: room temperature -260C, temperature control accuracy 1 ℃

■ Valve injection temperature control range: room temperature -200 ℃ temperature control accuracy 1 ℃ transmission tube temperature control range: room temperature -220 ℃ temperature control accuracy 1 ℃ temperature control accuracy:<+01 ℃

Headspace bottle workstation: 12 positions

Headspace bottle specification: 20ml (other specifications can be customized)

■ Repeatability: RSD 1.5% (200ppm ethanol water solution)

Injection pressure range: 0~04Mpa (continuously adjustable)

■ Backblowing cleaning flow rate: 0~20ml/min (continuously adjustable)

Dimensions/Weight: 480x240x460mm/15kg
