Instrument Introduction:

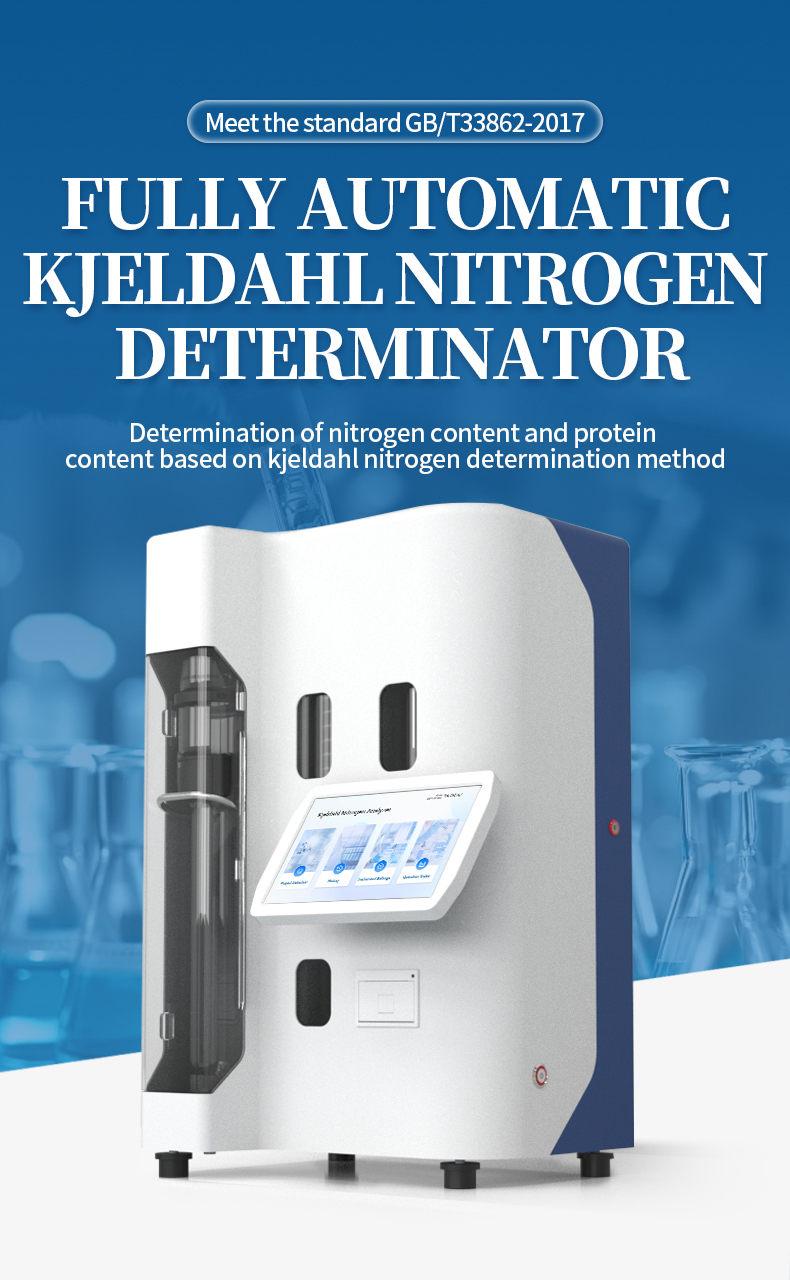

The Kjeldahl apparatus is an instrument used to determine nitrogen and protein content based on the Kjeldahl nitrogen determination method. The semi-automatic Kjeldahl nitrogen analyzer integrates the experimental process of distillation to condensation, which originally required manual operation, into one device for automatic execution, significantly reducing the workload in detection.
Application scope:
It can be widely used for nitrogen and protein analysis in food processing, feed production, tobacco, animal husbandry, soil and fertilizer, environmental monitoring, medicine, agriculture, scientific research, teaching and other fields.
Execution standard:
GB/T 33862-2017 "Fully (Semi) Automatic Kjeldahl Nitrogen Analyzer"
Advantages and Characteristics:

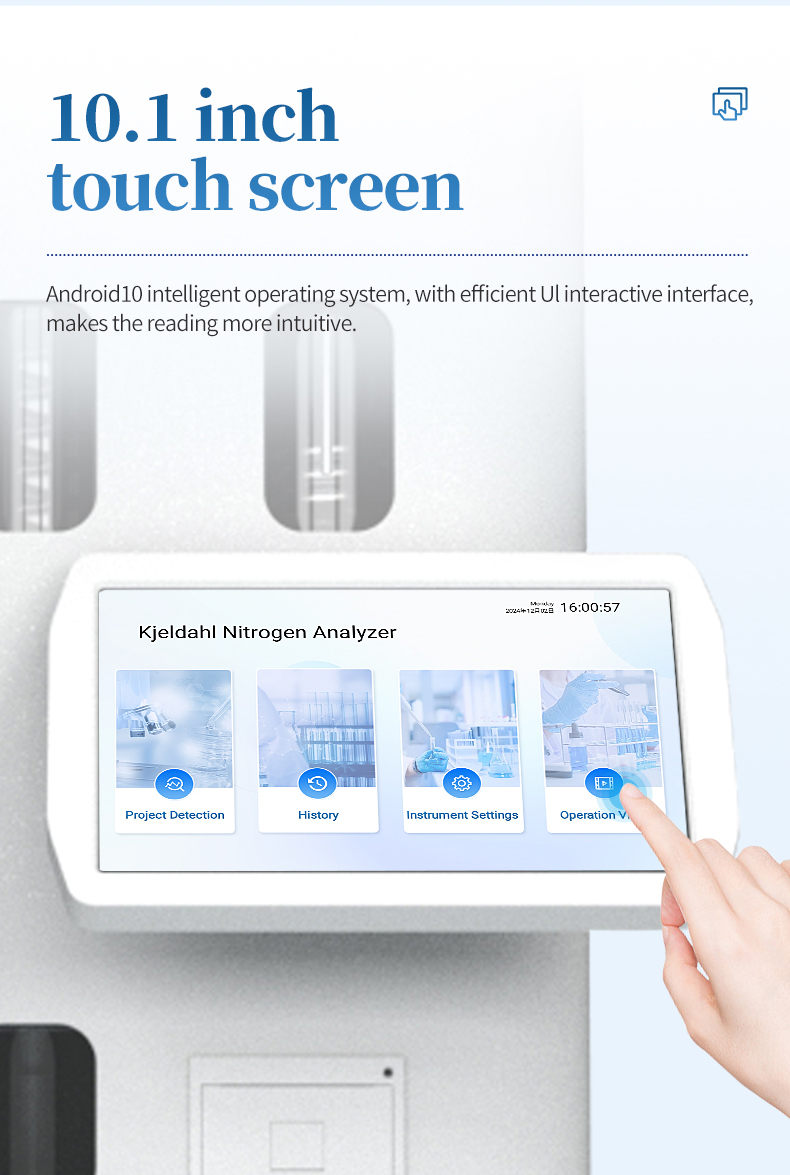

(1) Android 10 system, 7-inch touchscreen.

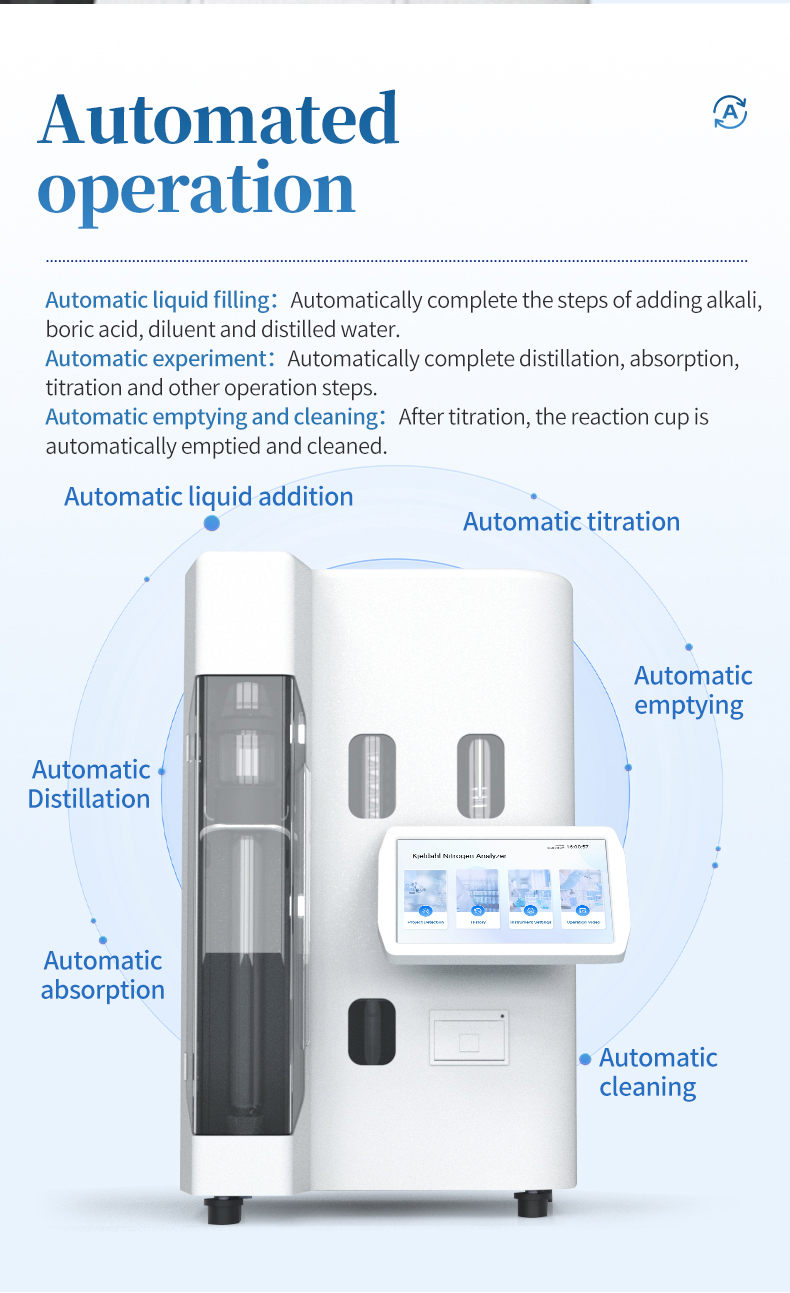

(2) Automatically complete the liquid addition steps such as adding alkali, adding boric acid, adding diluent, and adding distilled water; Automatically complete the distillation and absorption operation steps.

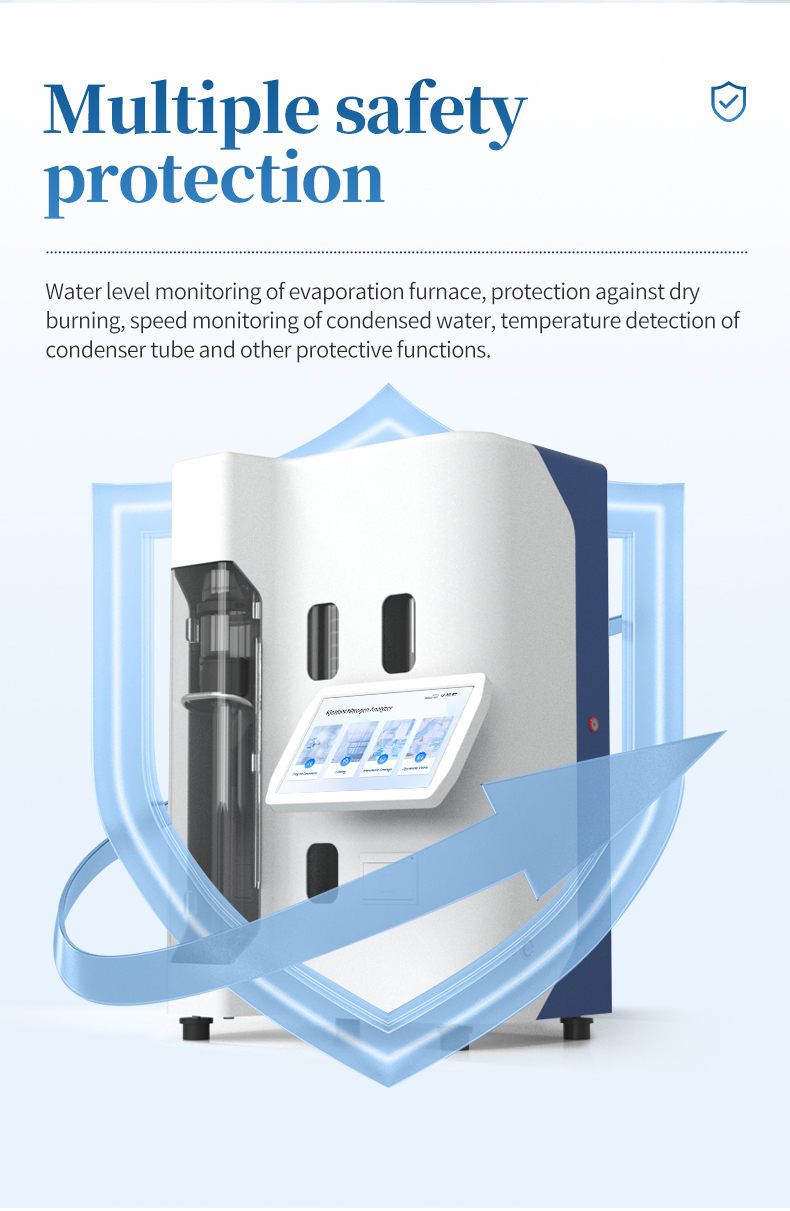

(3) Protection functions include monitoring the water level of the evaporator, preventing dry burning, monitoring the flow rate of condensate water, and detecting the temperature of the condenser tube.
(4) High capacity 16GB storage capacity, with a storage capacity of 5 million test results.
(5) The test result is an Excel spreadsheet, which can be directly copied to a USB drive.
(6) The test results can be printed and uploaded in batches.

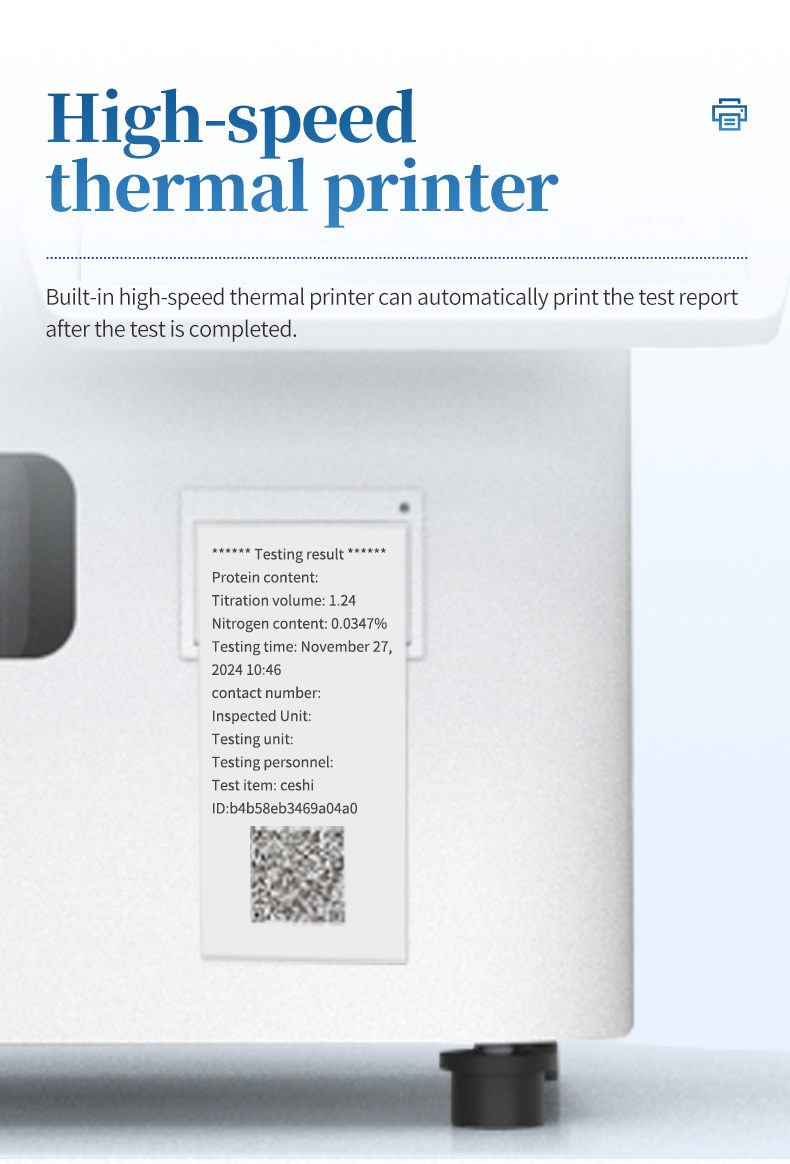

(7) High speed thermal printer, capable of automatically printing inspection reports upon completion of testing.
(8) It has WiFi networking function, and the test results can be directly uploaded to the platform.
(9) Program controls the opening and closing of condensate water to save water usage.
(10) Condensed water flow rate monitoring, low flow rate alarm.
(11) Multiple protections such as evaporator water level, temperature, pressure, etc.
(12) Adopting highly corrosion-resistant components.

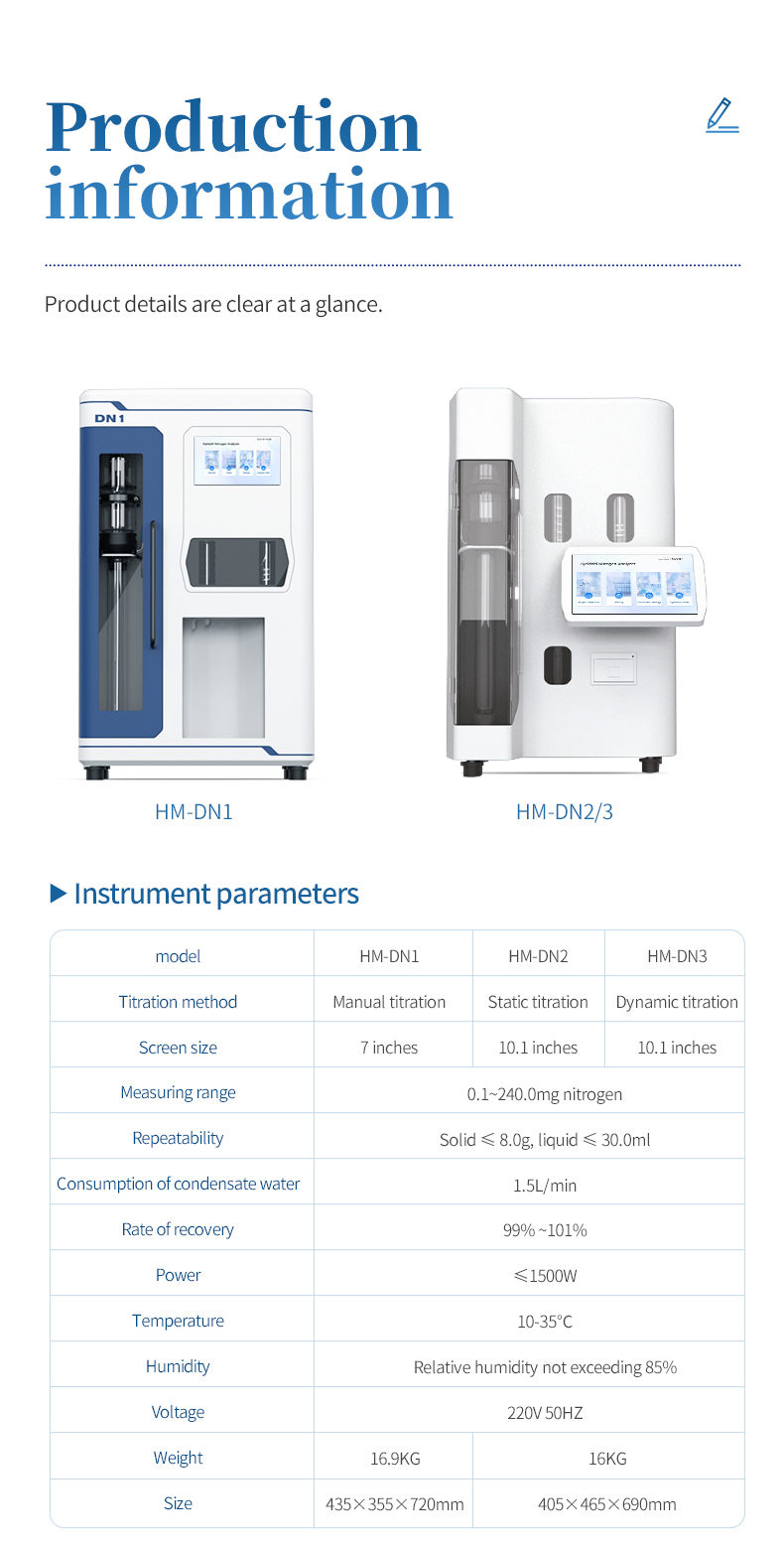

Instrument parameters:
(1) Measurement range: 0.1~240.0mg nitrogen
(2) Sample weight: Solid ≤ 8.0g, Liquid ≤ 30.0ml
(3) Condensed water consumption: 1.5L/min
(4) Recovery rate: 99%~101%
(5) Power: ≤ 1500W
(6) Temperature: 10-35 ℃
(7) Humidity: Relative humidity not exceeding 85%
(8) Voltage: 220V 50HZ
(9) Bare weight: 16.9KG
(10) Dimensions: 435mm x 355mm x 720mm (length x width x height)
