Refractometer

Innovation point:

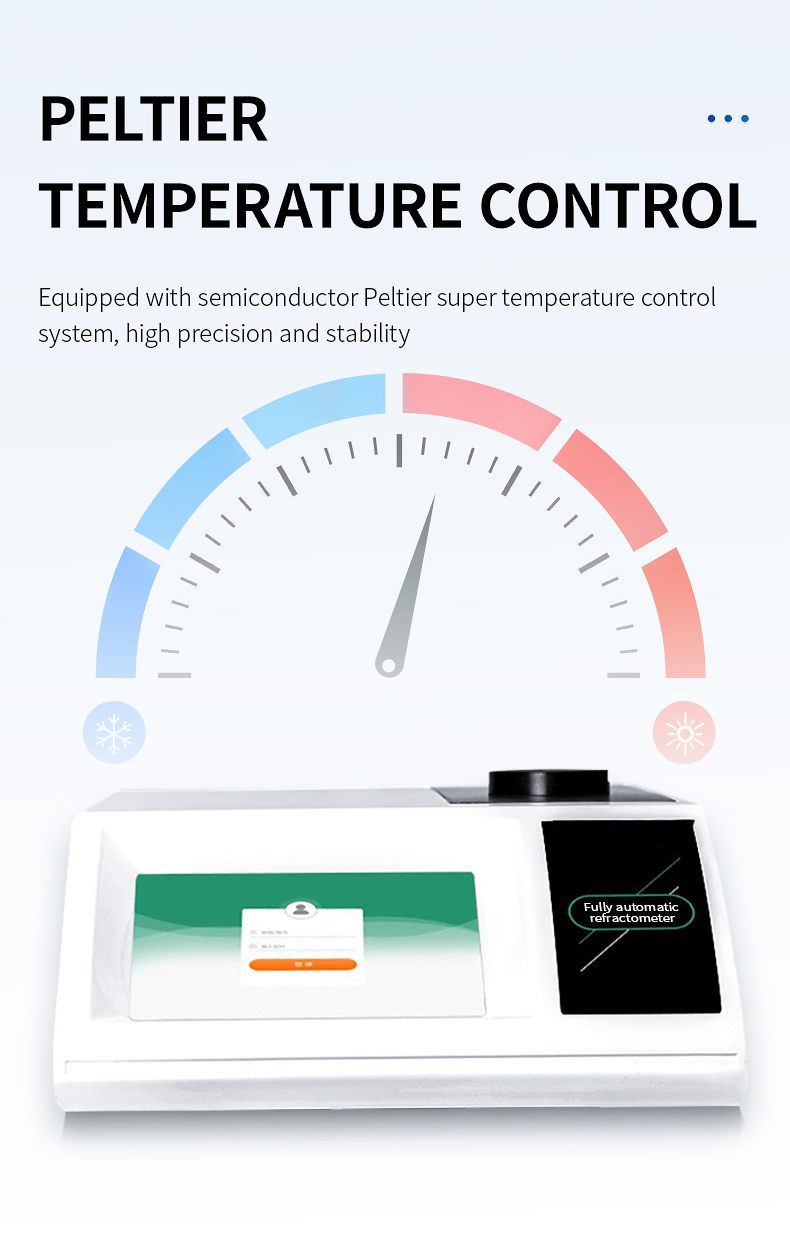

1: Built in Peltier temperature control to improve accuracy and stability;

2: LED cold light source replaces traditional sodium and tungsten halogen lamps;

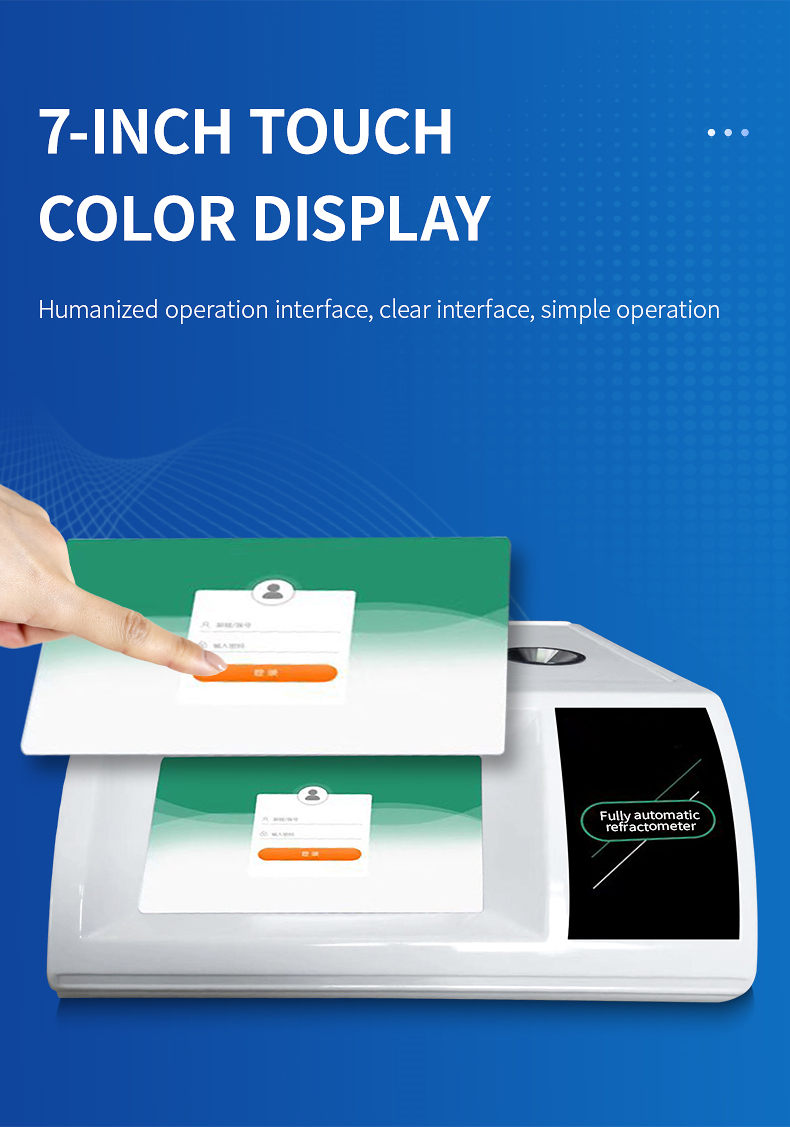

3: 7-inch touch color screen, user-friendly operation interface;

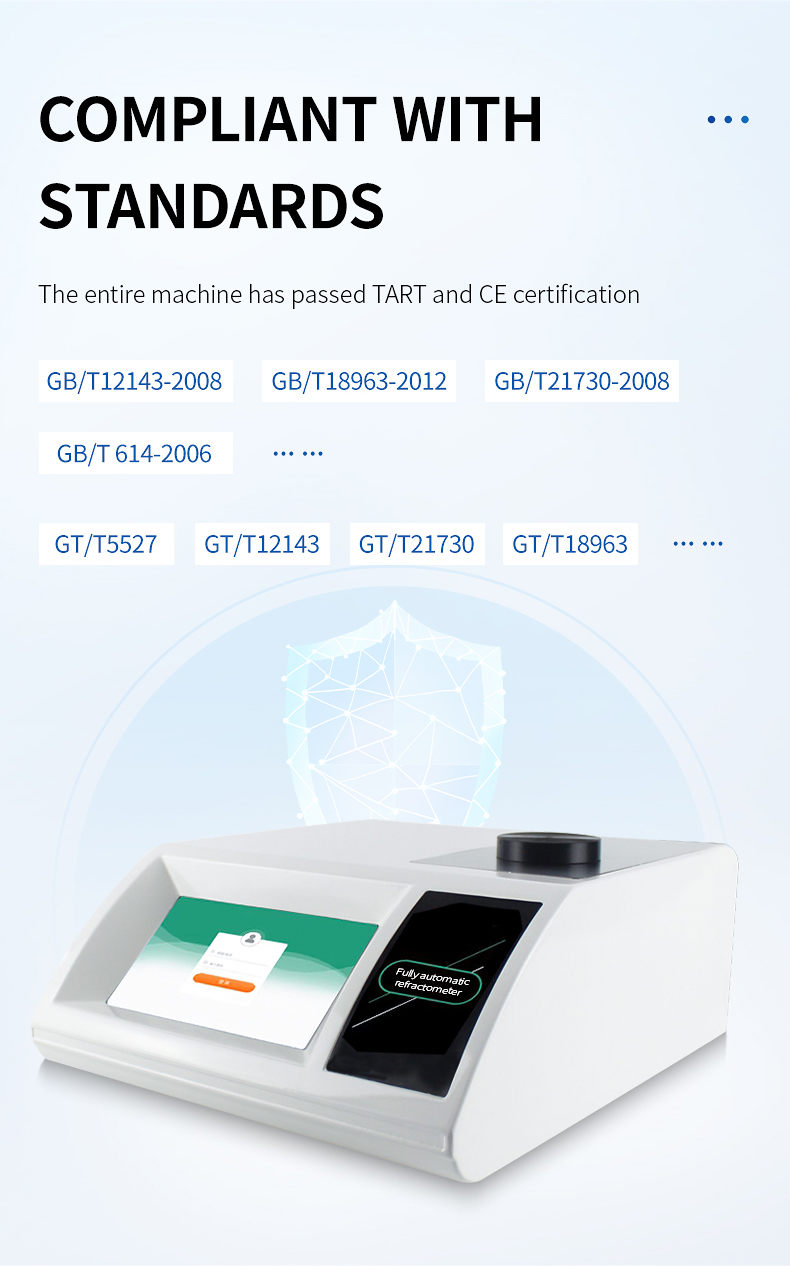

4: The whole machine has passed TART and CE certification.

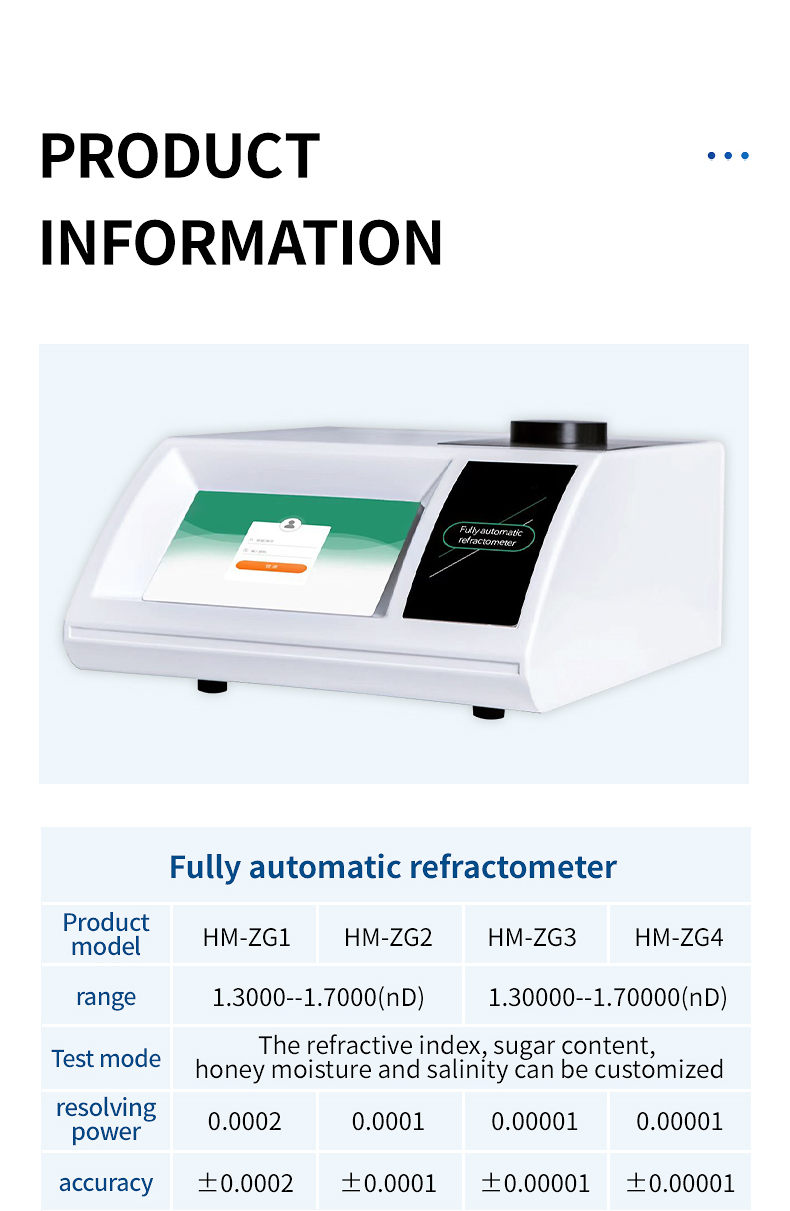

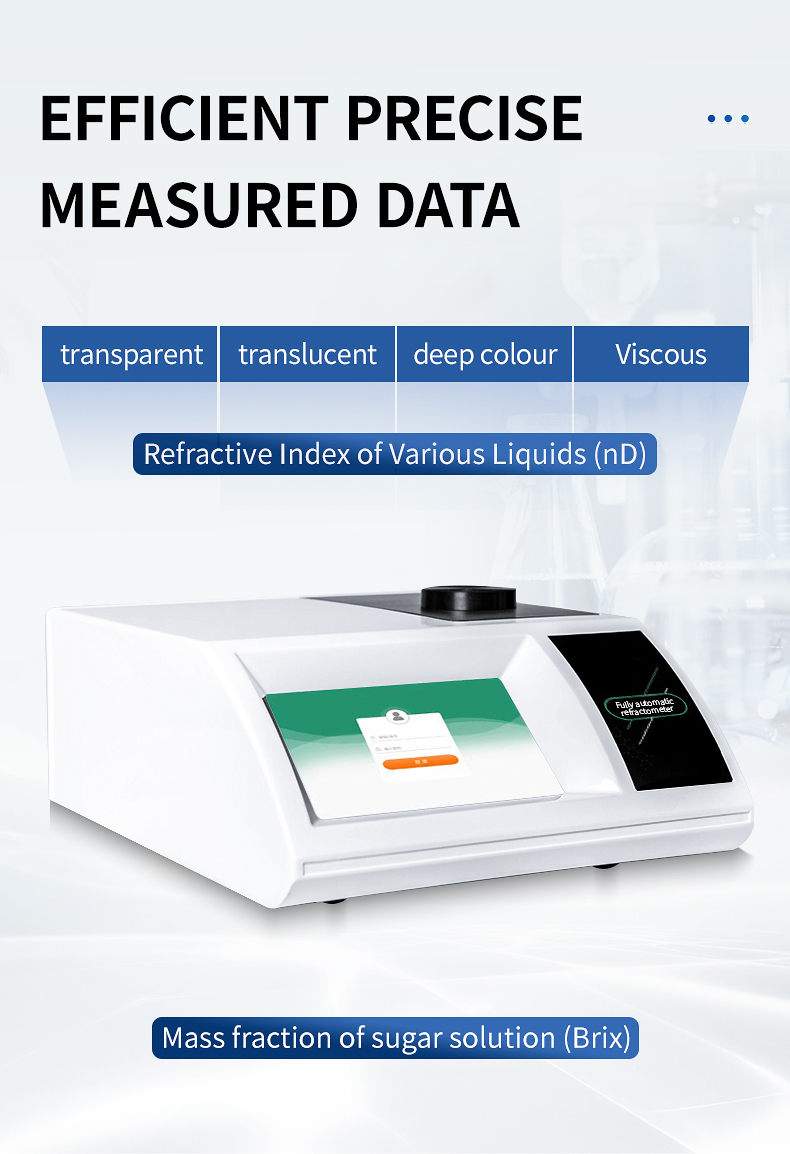

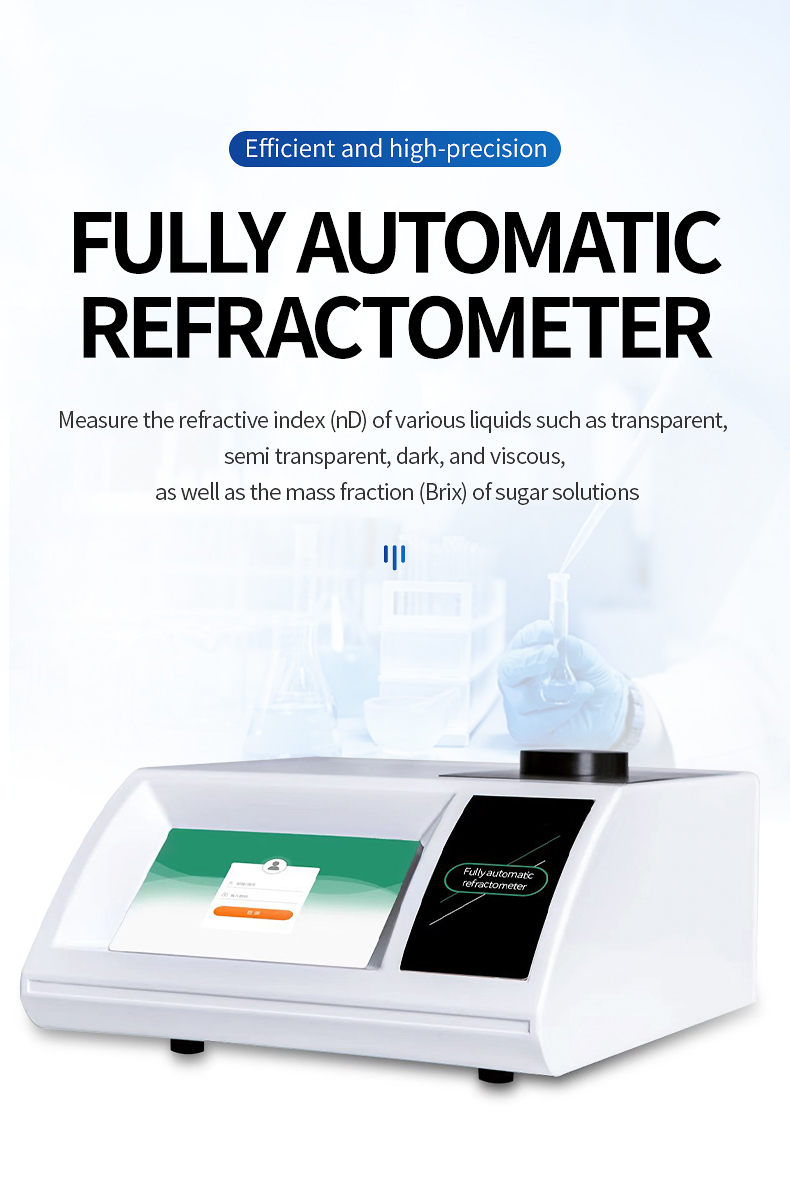

The HM series fully automatic refractometer is equipped with high-performance linear CCD photosensitive components, and is equipped with a semiconductor Peltier super temperature control system through high-speed and high-precision signal acquisition and analysis processing technology. It can efficiently and accurately measure the refractive index (nD) of various liquids such as transparent, semi transparent, dark, and viscous, as well as the mass fraction (Brix) of sugar solutions.

Application areas:

The fully automatic refractometer has a wide range of applications in the petroleum industry, oil and fat industry, pharmaceutical industry, food industry, daily chemical industry, sugar industry, etc. It is also one of the commonly used equipment in schools and related research institutions.

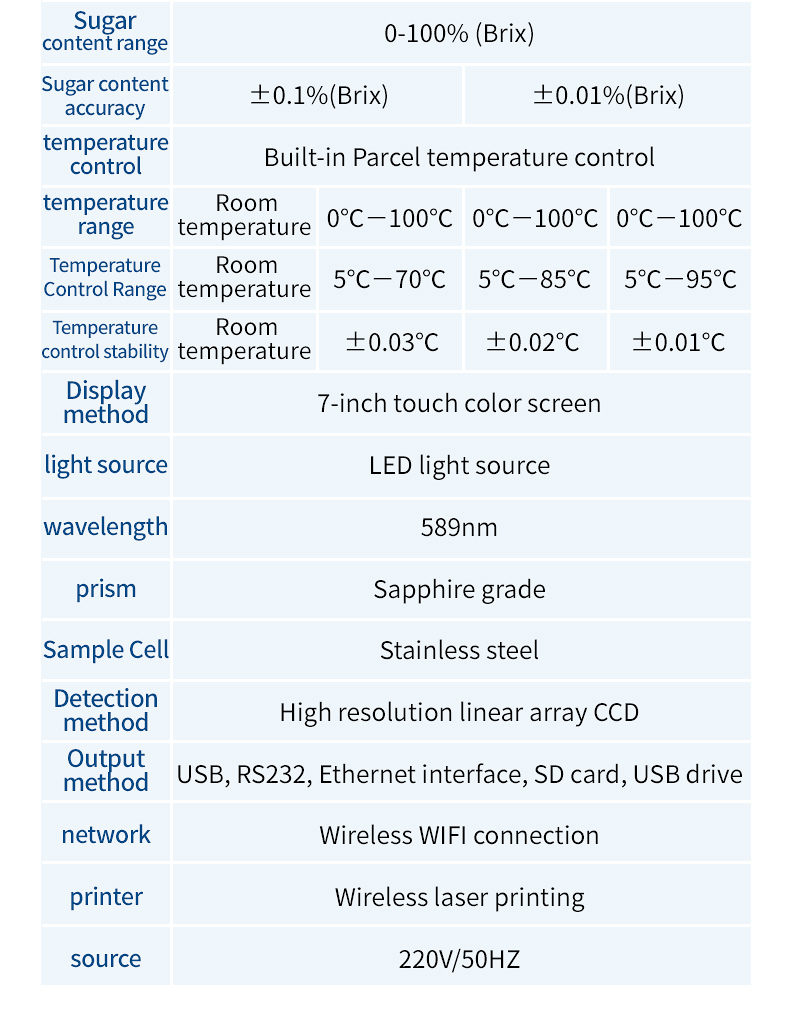

Main technical indicators:

Range: 1.3000-1.7000 (nD)

Resolution: 0.0002

Refractive index accuracy: ± 0.0002

Sugar content range: 0-100% (Brix)

Sugar content accuracy: ± 0.1% (Brix)

Temperature range: room temperature RT

Temperature control stability: room temperature RT

Display mode: 7-inch touch color screen

Light source: LED light source

Wavelength: 589nm

Prism: Sapphire grade

Sample pool: stainless steel

Detection method: Linear CCD

Output methods: USB, RS232, Ethernet interface, SD card, USB flash drive
