Sample Evaporation Concentrator

PRODUCT MODEL：HM-FS4

【introduction】Four-channel sample evaporation with infrared PID heating, a 7-inch touchscreen and automatic quantitative sample feeding.

+86 17853698681

Product details

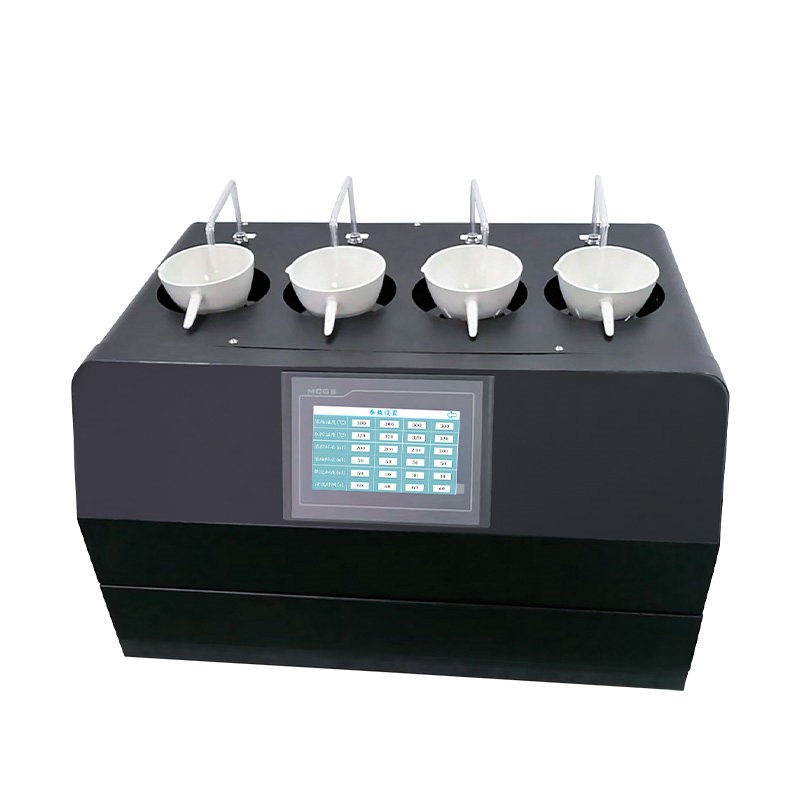

Four-position sample evaporation concentrator with touchscreen and porcelain dishes

Product Overview

The HM-FS4 from HM Instruments concentrates liquid samples by evaporation for subsequent laboratory analysis. Four working channels combine infrared heating with automatic quantitative sample feeding.

Key Features

PID-controlled infrared heating for sample evaporation.
Automatic quantitative sample feeding reduces repeated manual additions.

Applications

Use for water-sample concentration, total dissolved solids preparation, deposited-dust sample evaporation and preparation before gross alpha/beta analysis. Radiation measurement requires separate analytical equipment.

Technical Specifications

Parameter	Specification
Working channels	4
Control interface	7-inch touchscreen
Heating range	Ambient to 350 °C
Evaporation dishes	125 or 200 mL porcelain dishes
Power	2200 W
Supply	AC 220 V, 50 Hz
Ambient conditions	10–35 °C; RH <60%

Configuration and Selection

Automatic acid addition is an optional upgrade. Specify the sample, dish size and required feeding arrangement when requesting a configuration.

Product Enquiries

Tell our sales representative your sample type, working volume and configuration requirements for product enquiries and coordination of service requests.

Sales Contact: Kyra
Email: Kyra@hmdzkj.cn
Tel / WhatsApp / WeChat: +86 13792642016
